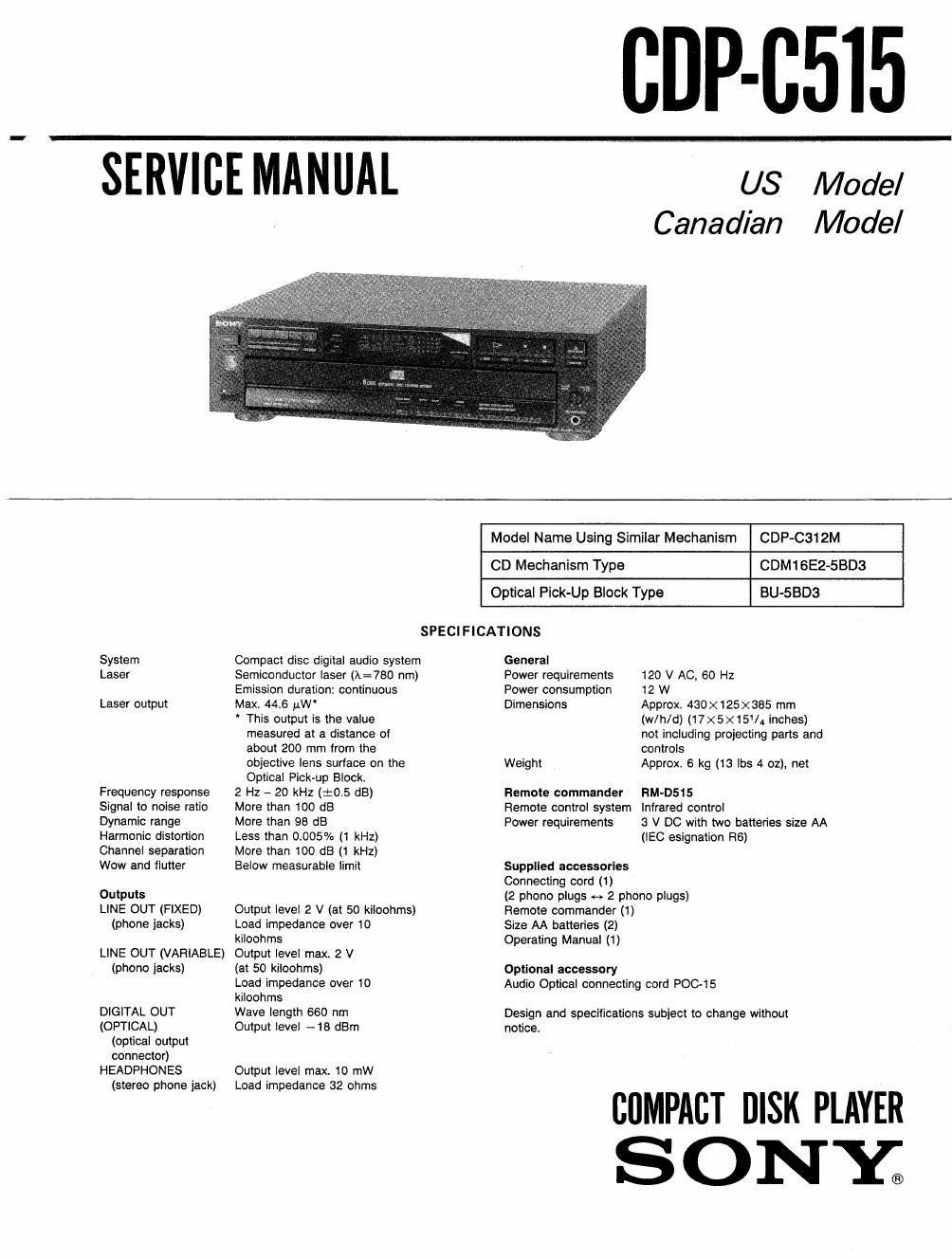

EDP-(1515
*SERVICEMANUA
US Model
Canadian Model
System
Laser
Laser output
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Wow and llutter
Outputs
LINE OUT (FIXED)
(phone jacks)
LINE OUT (VARIABLE)
(phono jacks)
DIGITAL OUT
(OPTICAL)
(optical output
connector)
HEADPHONES
(stereo phone jack)
Model Name Using Similar Mechanism GDP-0312M
CD Mechanism Type CDM16E2-5BD3
Optical Pick-Up Block Type BU-5BD3
SPECIFICATIONS
Compact disc digital audio system
Semiconductor laser 0:780 nm)
Emission duration: continuous
Max 445 MW
' This output is the value
measured at a distance of
about 200 mm from the
objective lens surface on the
Optical Pick-up Block.
2 Hz - 20 kHz (:05 dB)
More than 100 dB
More than 98 dB
Less than 0.005% (1 kHz)
More than 100 dB (1 kHz)
Below measurable limit
Output level 2 V (at 50 kiloohms)
Load impedance over 10
kiloohms
Output level max. 2 V
(at 50 kiloohms)
Load impedance over 10
kiloohms
Wave length 660 nm
Output level -18 dBm
Output level max 10 mW
Load impedance 32 ohms
General
Power requirements 120 V AC, 60 Hz
Power consumption 12 W
Dimensions Approx, 430x125><385 mm
(w/h/d) (17 X 5X15l inches)
not including projecting parts and
controls
Weight Approx 6 kg (13 lbs 4 02), net
Remote commander RM-DSIS
Remote control system Infrared control
Power requirements 3 V DC with two batteries size AA
(IEC esignation R6)
Supplled accessories
Connecting cord (1)
(2 phone plugs <-> 2 phono plugs)
Remote commander (1)
Size AA batteries (2)
Operating Manual (1)
Optional accessory
Audio Optical connecting cord POO-15
Design and specifications subject to change without
notice.
COMPACT DISK PLAYER
S ONYA
Page 2
CDP-C515
Note on the Transit Key
The transit key on the bottom exterior of the unit protects
the optical system against shock during transportation.
Before operating the CD player, be sure to remove the key
by following the instructions on the label, and store it in a
safe place.
When transporting the unit, replace the key in its original
hole and lock it in place.
Transit key
TABLE OF CONTENTS
Section Title Page Section M Page
1. GENERAL 5. EXPLODED VIEWS
1_1_ Location of Controls ....................................................... 5 5-1. Front Panel and Case Assemblies ....................................... 21
5-2. Disc Tray Assembly ...................................................... 22
2. DISASSEMBLY 5,3~ Chassis Assembly ......................................................... 23
2-1, Removal of Front Panel and Case Assemblies 6 5-4. Optical Pick-up Block Assembly (BU-SBD3) ------------------------- Z4
2.; Removal of Disc Tray Assembly ......................................... 6 ,
2-3, Removal of Optical Pick-up Block Assembly -------------------------- 6 6. ELECTRICAL PARTS LIST .................................... 25
3. ELECTRICAL BLOCK CHECKING - ------------------------ .. 7
4. DIAGRAMS
4.]. CII'CUII Boards LDCatIOn .. .......................................... . ...... 9
4.2. Semiconductor Lead Layouts ............................................. 9
4-3. [C Block Diagrams--
441. Printed Wiring Boards
4-5 Schematic Diagram -- - I7
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION.
REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
ATTENTION AUCOMPOSANT AYANT RAPPORT
A LA SECURITEI
LES composmrs IDENTIFIES PAR UNE MAROUE A
sun LEs DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES sow'r CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER cEs com.
POSANTS OUE PAR DEs PIECES sowv DONT LEs
NUMEROS som DONNES DANS cE MANUEL ou
DANS LEs SUPPLEMENTS PUBLIES PAR souv.
