Sony cdp c 505

This is the 21 pages manual for sony cdp c 505.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 21
sony cdp c 505

Extracted text from sony cdp c 505 (Ocr-read)


Page 1

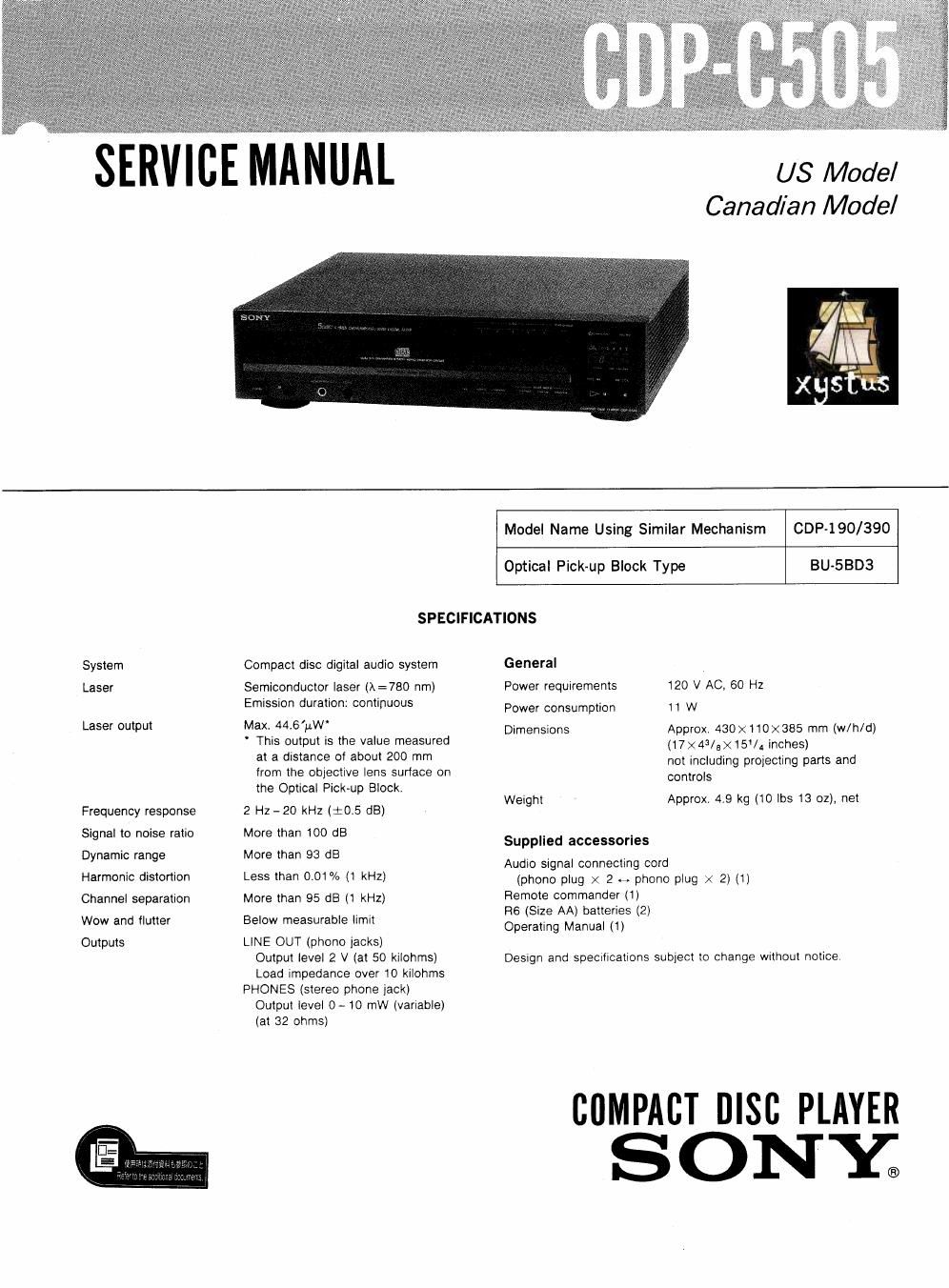

SERVICE MANUAL

US Model

Canadian Model

System
Laser

Laser output

Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Wow and flutter

Outputs

Model Name Using Similar Mechanism GDP-190/390
Optical Pick-up Block Type BU-5BD3
SPECIFICATIONS
Compact disc digital audio system General
Semiconductor laser 0:780 nm) Power requirements 120 V AC, 60 Hz
Emission duration: continuous Power consumption 11 W
Max-44.6uWI' Dimensions Approx. 430><110><385 mrn (w/h/d)
" This output Is the value measured (17X4J/5X151/4 inches)
at a dStanC? OI about 200 mm not including projecting pans and
from the obyectlve lens surface on controls
the Optical Pick-up Block.
Weight Approx. 4.9 kg (10 lbs 13 02), net

2 Hz-20 kHz (:05 dB)
More than 100 dB

More than 93 dB

Less than 001% (1 kHz)
More than 95 dB (1 kHz)
Below measurable limit

LINE OUT (phono jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
PHONES (stereo phone jack)
Output level 0 -10 mW (variable)
(at 32 ohms)

Supplied accessories

Audio signal connecting cord
(phono plug X 2 H phono plug X 2) (1)
Flemote commander (1)
R6 (Size AA) batteries (2)
Operating Manual (1)

Design and speculications subject to change Without notice.

chPAci Disc PLAYER
ONY;
