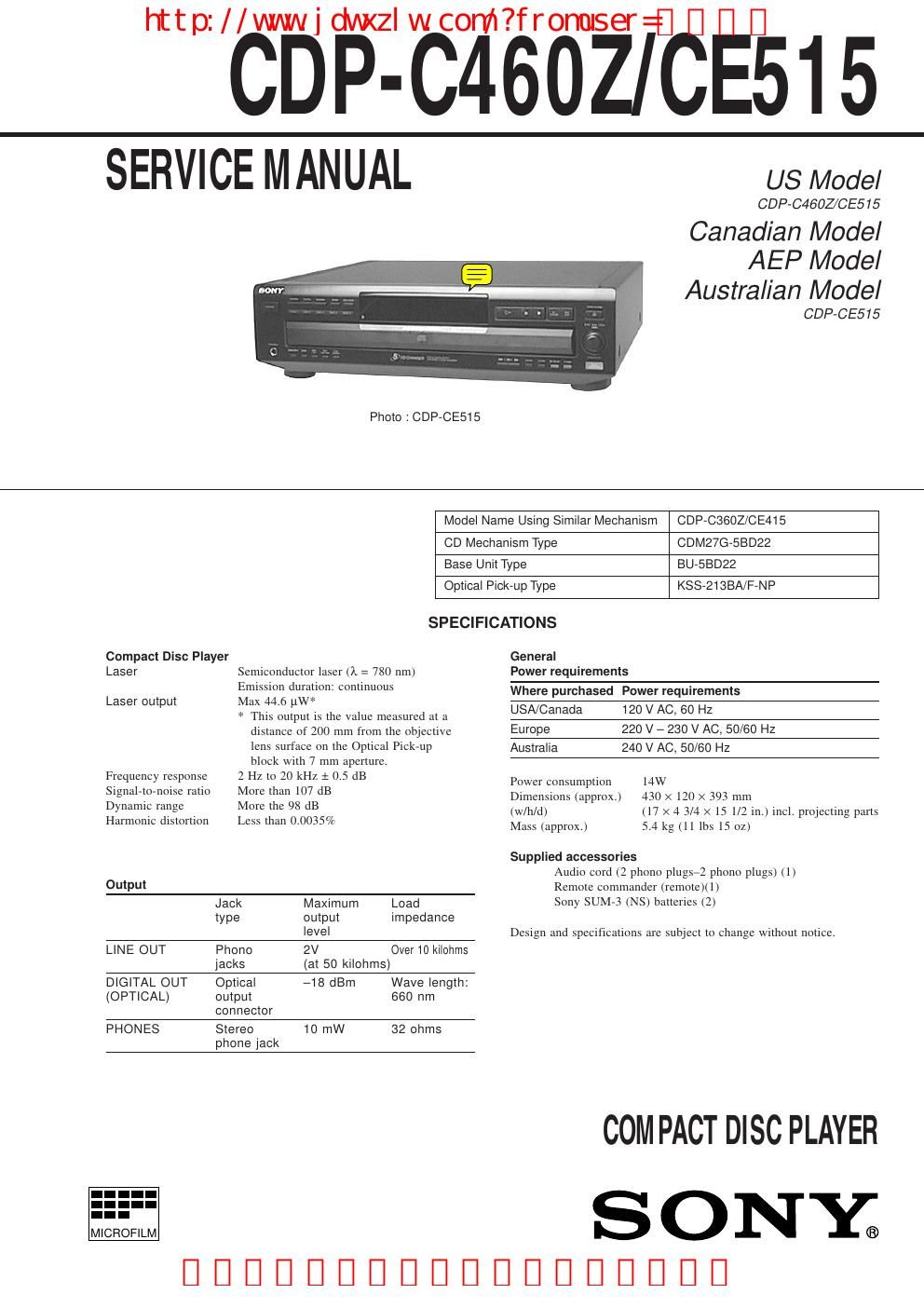

Page 1
Ñ 2 Ñ The following caution label is located inside of the unit.This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. 1. GENERAL ..................................................................... 7 2. DISASSEMBLY 2-1. Case, Bottom Plate and Front Panel áááááááááááááááááá\ ááááááááááááááááá 8 2-2. Back Panel and Disc Table áááááááááááááááááá\ áááááááááááááááááá\ ááááááááááááá 8 2-3. Optical Pick-up Block Assembly áááááááááááááááááá\ áááááááááááááááááá\ ááá 9 2-4. Bracket (Gear) Assembly áááááááááááááááááá\ áááááááááááááááááá\ ááááááááááááááá 9 3. ELECTRICAL BLOCK CHECKING ................... 10 4. DIAGRAMS 4-1. Circuit Boards Location áááááááááááááááááá\ áááááááááááááááááá\ ááááááááááááááá 12 4-2. Printed Wiring Board Ñ BD Section Ñ áááááááááááááááááá\ áááááááá 13 4-3. Schematic Diagram Ñ BD Section Ñ áááááááááááááááááá\ ááááááááááá 15 4-4. Printed Wiring Board Ñ Main Section Ñ áááááááááááááááááá\ ááááá 17 4-5. Schematic Diagram Ñ Main Section Ñ áááááááááááááááááá\ áááááááá 19 4-6. Schematic Diagram Ñ Display Section Ñ áááááááááááááááááá\ áááá 21 4-7. Printed Wiring Board Ñ Display Section Ñ áááááááááááááááááá\ á 23 4-8. IC Block Diagrams áááááááááááááááááá\ áááááááááááááááááá\ áááááááááááááááááá\ ááááá 25 4-9 IC Pin Functions¥ IC101 Digital Signal Processor (CXD2545Q) ááááááááááááááá 27 ¥ IC302 System Control (CXP84340-060Q) áááááááááááááááááá\ áá 30 5. EXPLODED VIEWS 5-1. Front Panel and Case Section áááááááááááááááááá\ áááááááááááááááááá\ ááááááá 32 5-2. Back Panel and Disc Table Section áááááááááááááááááá\ áááááááááááááááá 33 5-3. Chassis Section áááááááááááááááááá\ áááááááááááááááááá\ áááááááááááááááááá\ ááááááááááá 34 5-4. Base Unit Section (BU-5BD22) áááááááááááááááááá\ áááááááááááááááááá\ ááá 35 6. ELECTRICAL PARTS LIST ................................... 36 TABLE OF CONTENTS SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéSES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPƒMENTS PUBLIƒS PAR SONY. 0068007400740070003A002F002F007700770077002E006A006400770078007A006C0077002E0063006F006D002F003F00660072006F006D0075007300650072003D534E76DB7EF44FEE 5BB675357EF44FEE8D4465997F51FF0C514D8D394E0B8F7D540479CD7EF44FEE8D446599
Page 2
Ñ 3 Ñ MODEL IDENTIFICATION Ñ BACK PANEL Ñ CDP-CE515US Model : 842-0 ¹ CDP-CE515 Canadian Model : 842-1 ¹ CDP-CE515 AEP Model : 842-2¹ CDP-C460Z US Model : 842-3¹ CDP-CE515 Australian Model : 842-5 ¹ SAFETY CHECK-OUT (US model only) After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. 4-987- Earth Ground AC voltmeter(0.75V) 1.5k ½ 0.15 µF Fig. A. Using an AC voltmeter to check AC leakage. To Exposed Metal Parts on Set 0068007400740070003A002F002F007700770077002E006A006400770078007A006C0077002E0063006F006D002F003F00660072006F006D0075007300650072003D534E76DB7EF44FEE 5BB675357EF44FEE8D4465997F51FF0C514D8D394E0B8F7D540479CD7EF44FEE8D446599
