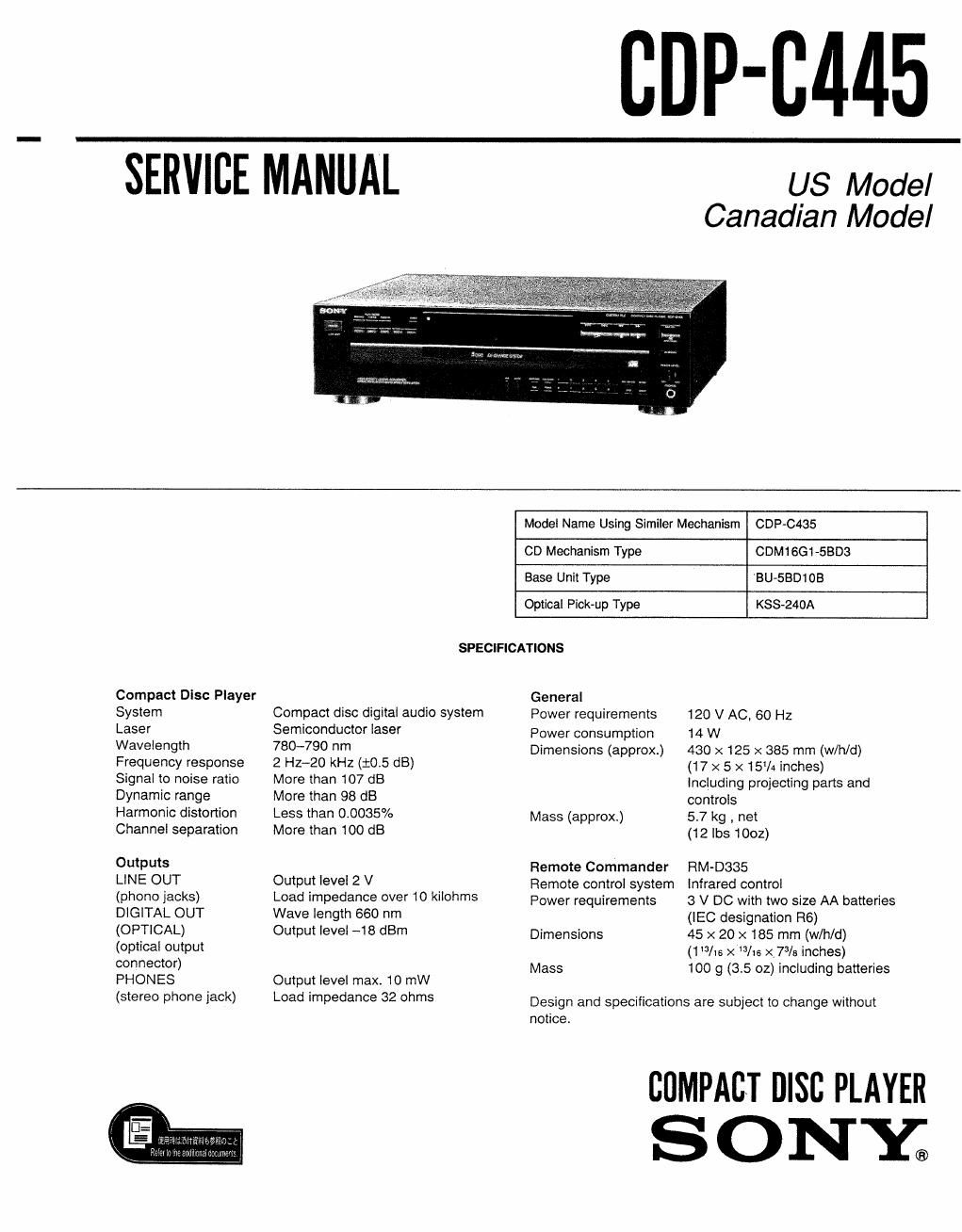

EDP-C445
SERVICE MANUAL
US Model
Canadian Model
Compact Disc Player
System
Laser
Wavelength
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Outputs
LINE OUT
(phono jacks)
DIGITAL OUT
(OPTICAL)
(optical output
connector)
PHONES
(stereo phone jack)
Model Name Using Similer Mechanism
CDP-C435
CD Mechanism Type
CDM16G1-SBDS
Base Unit Type
'BU-SBDioB
Optical Pick-up Type
KSS-240A
SPECIFICATIONS
Compact disc digital audio system
Semiconductor laser
780-790 nm
2 Hz-20 kHz (:05 dB)
More than 107 dB
More than 98 dB
Less than 0,0035%
More than 100 dB
Output level 2 V
Load impedance over 10 kilohms
Wave length 660 nm
Output level -1 8 dBm
Output level max. 10 mW
Load impedance 32 ohms
General
Power requirements
Power consumption
Dimensions (approxt)
Mass (approx)
Remote Commander
Remote control system
Power requirements
Dimensions
Mass
120 V AC, 60 H2
14 W
430 x 125 X 385 mm (w/h/d)
(17 x 5 x 15% inches)
Including projecting parts and
controls
5.7 kg , net
(12 lbs 1002)
RM-DSSS
Infrared control
3 V DC with two size AA batteries
(lEC designation R6)
45 x 20 x 185 mm (w/h/d)
(13/is x /is x,73/e inches)
100 g (3.5 oz) including batteries
Design and specifications are subject to change without
notice.
COMPACT DISC PLAYER
S ONY;
Page 2
Notes on chip component replacement
. Never reuse a disconnected chip component.
~ Notice that the minus side of a tantalum capacitor may be
damaged by heat.
For the Customers in Canada
r CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
This apparatus complies with the Class B limits for radio noise
emissisons set out in Radio interference Regulations.
HOW TO OPEN THE DISC TRAY WHEN POWER
SWITCH TURNS OFF
SAFETY-RELATED COMPONENT WARNING I!
COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
TABLE OF CONTENTS
Section lute Bags
1. GENERAL
Identifying the Parts .......................................................... 4
2. DISASSEMBLY
21. Case, Bottom Plate and Front Panel
2-2. Back Panel and Disc Table ..............
2-3. Optical Pick-up Block Assembly
2-4. Bracket (Gear) Assembly ..........
2-5. Positioning the Encoder when Attaching the Gear
OOUIOI
(Main) ................................................................................. 7
3. ELECTRICAL BLOCK CHECKING ........................ 6
4. DIAG RAMS
4-1. IC Pin Functions
' CXP82220-0180 (i0501) Pin Functions
4-2. Circuit Boards Location ............................
4-3. Block Diagram ...................................
4-4. Printed Wiring Board - BD Section -
4-5. Schematic Diagram - BD Section
4-6. Printed Wiring Boards - Main Section --
4-7. Schematic Diagram - Main Section --
4-8. Semiconductor Lead Layouts
4'9. IC Block Diagrams ..............
5. EXPLODED VIEWS
5-1. Front Panel and Case Assemblies ......
5-2. Back Panel and Disc Table Assemblies
5-3. Chassis Assembly
54. Optical Pick-up Block Assembly (BU-5BD1OB)
6. ELECTRICAL PARTS LIST
insert a tapering driver into the aperture of the unit bottom, and turn
in the direction of arrow (to OUT direction).
* To close the disc tray, turn the driver in the reverse direction (to IN
direction).
