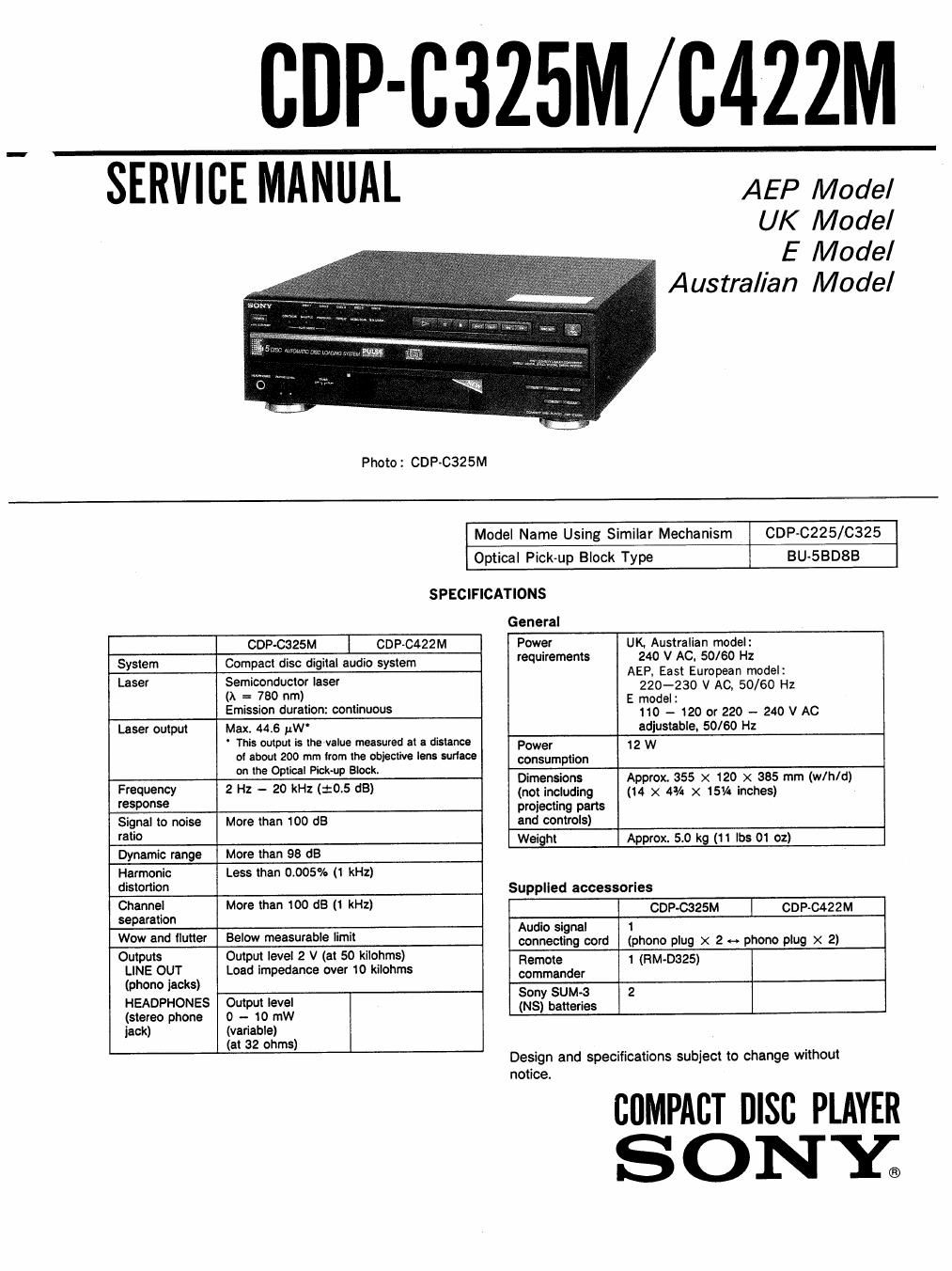

CDP-C325M/C422M

SERVICEWlNIJAL

Photo: CDP-C325M

AEP Model

UK Model
E Model

Australian Model

' This output is the value measured at a dislance
at about 200 mm from the objective lens surtace
on the Optical Pick-up Block.

Frequency
response

2 Hz - 20 kHz (1-0.5 dB)

Signal to noise
ratio

More than 100 dB

Model Name Using Similar Mechanism GDP-0225/C325
Optical Pick-up Block Type BU-5BDSB
SPECIFICATIONS
General
GDP-0325M I CDP-C422M Power UK, Australian model:
System Compact disc digital audio system requirements 240 V Ac' 50/60 HZ
. AEP, East European model:
Laser Semiconductor laser 220_230 V AC 50/60 Hz
(A = 78° nm) a mode '
Emission duration: continuous 11° _ 120 or 220 _ 240 V AC
Laser output Max. 44.6 uW' adjustable. 50/60 Hz

Dynamic range

More than 98 dB

Harmonic Less than 0.005% (1 kHz)
distortion
Channel More than 100 dB (1 kHz)
separation
Wow and flutter Below measurable limit
Outputs Output level 2 V (at 50 kilohms)
LINE OUT Load impedance over 10 kilohms
(phone lacks)
HEADPHONES Output level
(stereo phone 0 - 10 mW
jack) (variable)
(at 32 ohms)

Power 12 W

consumption

Dimensions Approx. 355 X 120 X 305 mm (w/h/d)
(not Including (14 x 4% x 15% Inches)

proiecting parts

and controls)

Weight Approx. 5.0 kg (11 lbs 01 oz)

Supplied accessories

CDP-0325M | CDP-C422M
Audio signal 1
connecting oord (phono plug x 2 --> phone ping x 2)
Remote 1 (RM-D325)
commander

Sony SU M-3 2
(NS) batteries

Design and specifications subject to change without

comer nlsc PLAYER
S ONY;

notice.

Page 2

CDP-CBZSM/C422M

For the United Kingdom and European
Countries.

This Compact Disc player is
classified as a CLASS 1
LASER product.

The CLASS 1 LASER
PRODUCT label is located
on the rear exterior.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPFARAT

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential di-
ierence generated by the charged electrostatic load,
etc. on clothing and the human body.

During repair, pay attention to electrostatic break»
down and also use the procedure in the printed matter
which is included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to
be focused on the disc reflective surface by the objec-
tive lens in the optical pick-up blockl Therefore, when
checking the laser diode emission, observe from more
than 30cm away from the objective lens.

SAFETY-RELATED COMPONENT WARNING ll

COMPONENTS IDENTIFIED BY MARK [Q OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB~
LISHED BY SONY.

Note on the Transit Key

The transit key on the bottom exterior of the unit protects
the optical system against shock during transportation.
Before operating the CD player. be sure to remove the key
by following the instructions on the label, and store it in a
safe place.

When transporting the unit. replace the key in its original
hole and lock it in place.

MODEL IDENTIFICATION

- Specrfrcatlon Label - coecazsm

CDP-CAZZM

SONE

COMPACT DISC PLAYER

WWW

MODEL No.

AEP, EE model: AC: 220-230V~50/60Hz
UK, AUS model: AC: 240V~50l60Hz
E model: AC: 110-120, 220-240V~50/60HZ 12W

OAUS: Australian model
EE : East European model
