Sony cdp c 322 m service manual

This is the 32 pages manual for sony cdp c 322 m service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 32
sony cdp c 322 m service manual

Extracted text from sony cdp c 322 m service manual (Ocr-read)

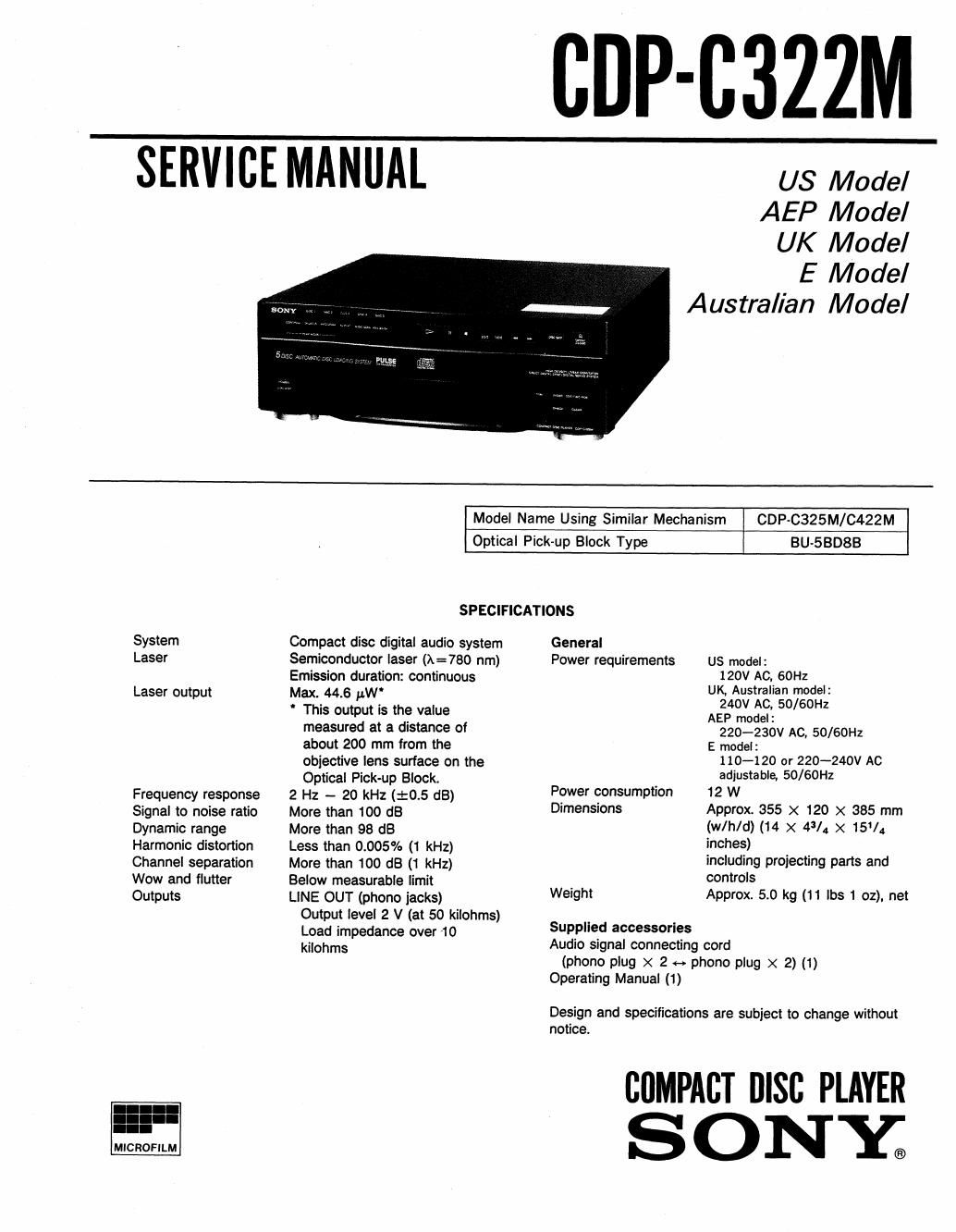

Page 1

CDP-C322M

SERVICE MANUAL

US Model
AEP Model
UK Model
E Model

Australian Model

System
Laser

Laser output

Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Wow and flutter
Outputs


.-
MICROFILM

Compact disc digital audio system

Model Name Using Similar Mechanism CDP-C325M/C422M
Optical Pick-up Block Type BU-SBDBB
SPECIFICATIONS
General
Power requirements us model:

Semiconductor laser 0:780 nm)
Emission duration: continuous
Max. 44.6 p.W

' This output is the value
measured at a distance of
about 200 mm from the
objective lens surface on the
Optical Pick-up Block.

2 Hz - 20 kHz (:0.5 dB)

More than 100 dB

More than 98 dB

Less than 0.005% (1 kHz)

More than 100 dB (1 kHz)

Below measurable limit

LINE OUT (phono jacks)

Output level 2 V (at 50 kilohms)
Load impedance over 10
kilohms

Power consumption
Dimensions

Weight

Supplied accessories

120V AC, 60Hz
UK. Australian model:
240v Ac. 50/60Hz
AEP model:
220-230V AC, 50/60Hz
E model:
110-120 or 220-24ov AC
adjustable 50/60Hz
12 W
Approx. 355 X 120 x 385 mm
(w/h/d) (14 X 43/4 >< 151/4
inches)
including projecting parts and
controls
Approx. 5.0 kg (11 lbs 1 oz), net

Audio signal connecting cord
(phono plug X 2 H phono plug X 2) (1)

Operating Manual (1)

Design and specifications are subject to change without

COMPACT nisc PLAYER
S ON Y;

notice.
