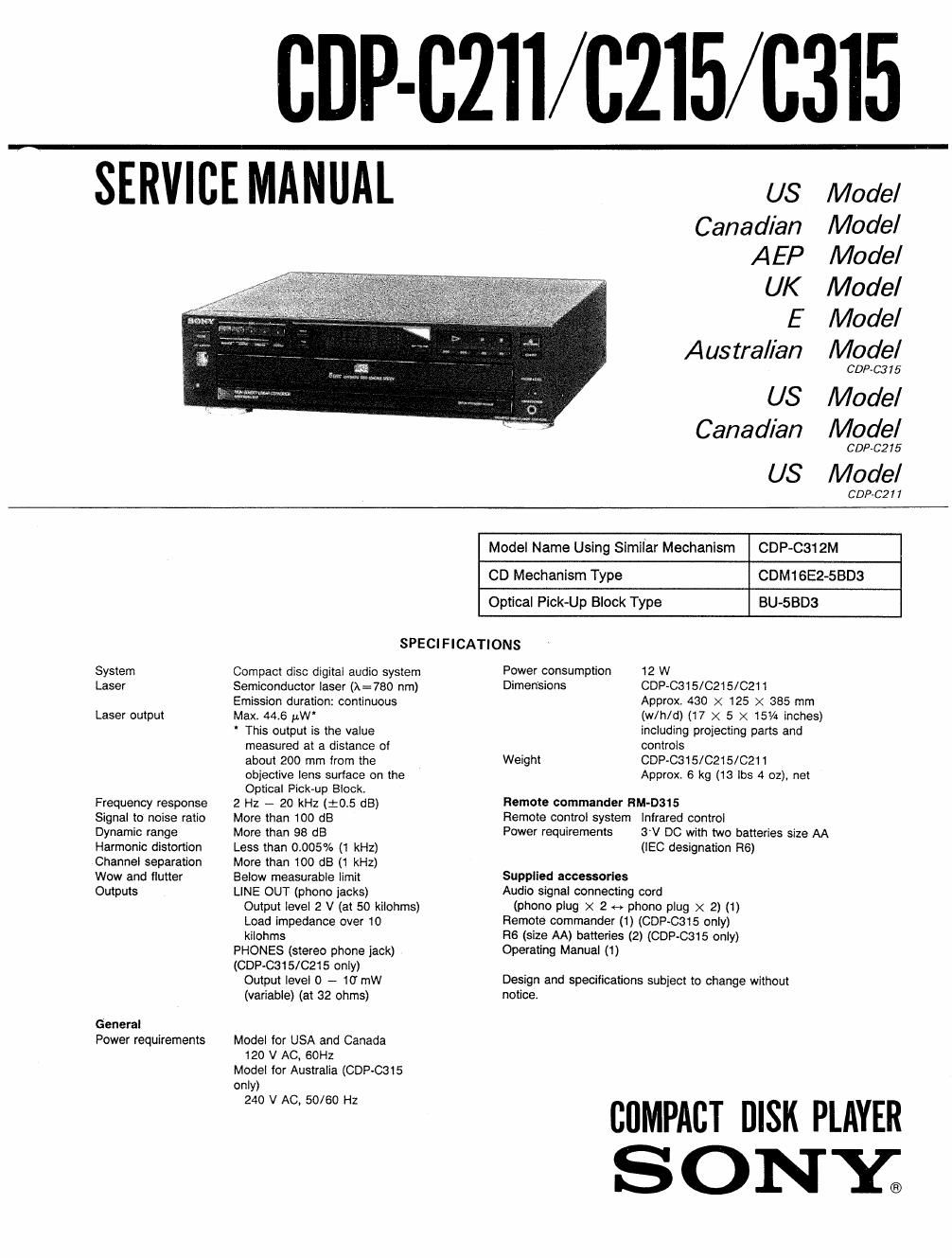

Page 1

CDP-Cle/CZIS/C3l5

SERVICE MANUAL

Canadian
AEP

A us tra/ian

US Model
Model
Model
UK Model
E Model
Model

GDP-(33 75

U8 Model

System
Laser

Laser output

Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Wow and flutter
Outputs

General
Power requirements

Canadian Model
CDP-0275
US Model
cop-0211
Model Name Using Similar Mechanism CDP-C312M
CD Mechanism Type CDM16E2-SBD3
Optical Pick-Up Block Type BU-5B03

SPECIFICATIONS

Compact disc digital audio system
Semiconductor laser 0:780 nm)
Emission duration: continuous
Max. 445 MW

' This output is the value
measured at a distance of
about 200 mm from the
objective lens surface on the
Optical Pick-up Block.

2 Hz - 20 kHz (:05 dB)

More than 100 dB

More than 98 dB

Less than 0,005% (1 kHz)

More than 100 dB (1 kHz)

Below measurable limit

LINE OUT (phono jacks)

Output level 2 V (at 50 kilohms)
Load impedance over 10
kilohms

PHONES (stereo phone jack)

(GDP-0315l6215 only)

Output level 0 - 10 mW
(variable) (at 32 ohms)

Model for USA and Canada
120 V AC, GOHZ
Model for Australia (GDP-0315
only)
240 V AC, 50/60 Hz

Power consumption 12 W

Dimensions

Weight

CDP-C315/C215/0211

Approx 430 X 125 X 385 mm
(w/h/d) (17 X 5 x 151/4 inches)
including projecting parts and
controls

CDP-CSlS/CZlS/Czii

Approx 6 kg (13 lbs 4 02), net

Remote commander RM-DSIS
Remote control system Infrared control

Power requirements

Supplled accessorles

3'V DC with two batteries size AA
(lEC designation R6)

Audio signal connecting cord

(phono plug x 2 9 phone plug X 2) (1)
Remote commander (1) (GDP-C315 only)
no (size AA) batteries (2) (GDP-0815 only)

Operating Manual (1)

Design and specifications subject to change without

notice.

cuMPAcT DISK PLAYER
S ONY;

Page 2

P-C211/C215/C315

Note on the Transit Key

The transit key on the bottom exterior of the unit protects
the optical system against shock during transportation.
Before operating the CD player, be sure to remove the key
by following the instructions on the label. and store it in a
safe place.

When transporting the unit, replace the key in its original
hole and lock it in place.

TABLE OF CONTENTS
Section % Page Section Till Page
1. GENERAL 5. EXPLODED VIEWS
LL Location of Controls ----------------------------------------------- 5 5»1i Front Panel and Case Assemblies -------------------------------------- 2]
54. Disc Tray Assembly ------------------------------------------------------ 22
2. DISASSEMBLY 5-3. Chassis Assembly ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Z3
2.1. Removal of Front Panel and Case Assemblies ~~~~~~~~~~~~~~~~~~~~~~~~~ 6 54. Optical Pick-up Block Assembly (BU-SBDB) ~~~~~~~~~~~~~~~~~~~~~~~~~ Z4

2»2. Removal of Disc Tray Assembly -------------

Z»3. Removal of Optical Pick-up Block Assembly ~-

3. ELECTRICAL BLOCK CHECKING ~~~~~~~~~~~~~~~~~~~~~~~~~~~ 7

4. DIAGRAMS

4-1. Circuit Boards Location ~~~~~~~

4-2. Semiconductor Lead Layouts~

43. [C Block Diagrams ------------- .10
4-4. Printed Wiring Boards 12
4-5. Schematic Diagram ....................................................... 17

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED 8V SONY.

6. ELECTRICAL PARTS LIST

ZS

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A
sun Les DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES som cnmoues POUR LA sécunn'e
DE FONCTIONNEMENT. NE REMPLACER ces COM-
POSANTS oue PAR DES PIECES sonv DONT Les
NUMenos som DONNés DANS ce MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
