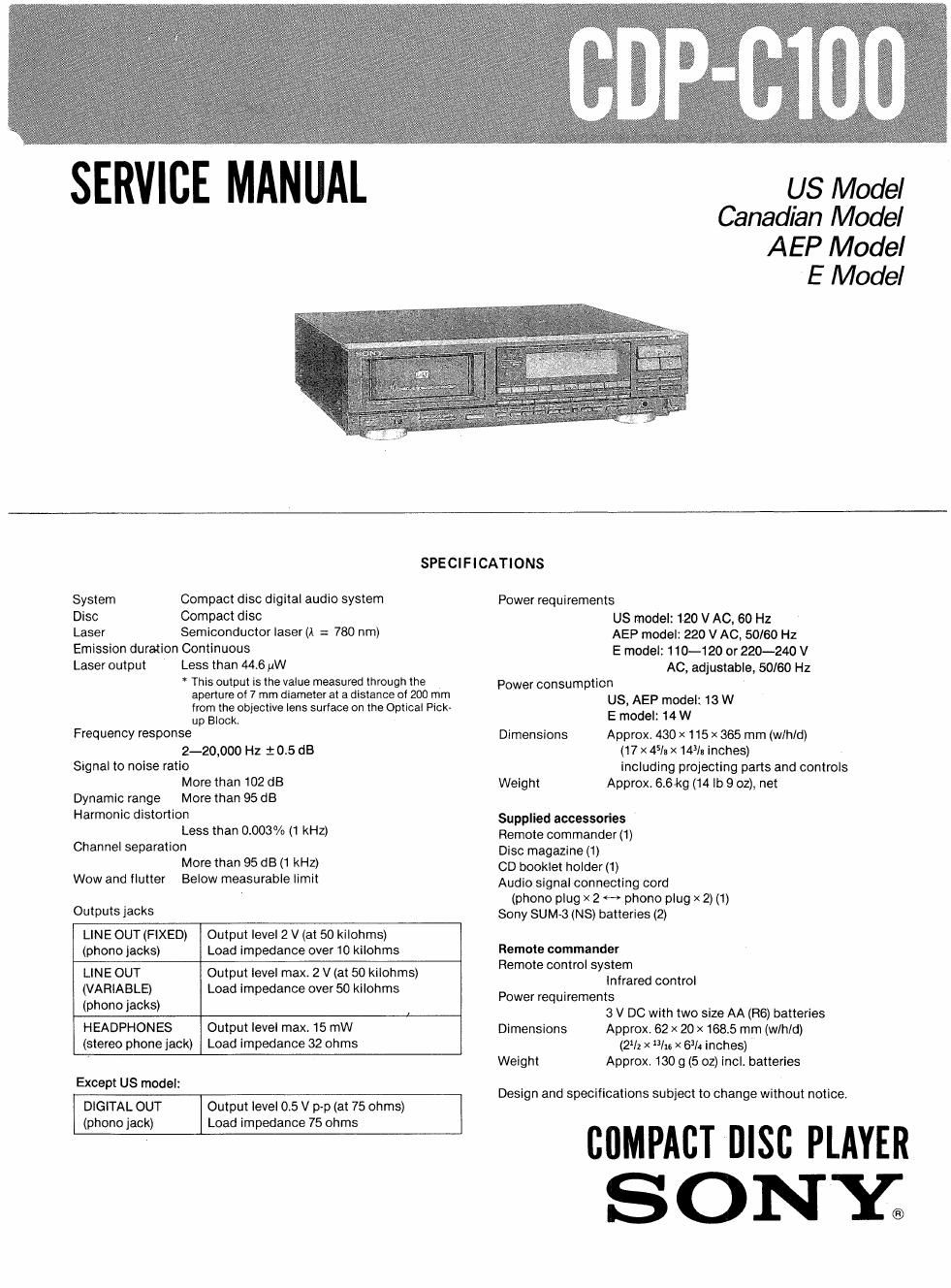

Page 1

SERVICE MANUAL

US Model
Canadian Model
AEP Model

E Model

SPECIFICATIONS

System Compact disc digital audio system
Disc Compact disc

Laser Semiconductor laser (A = 780 nm)
Emission duration Continuous

Laser output Less than 44.6 W

* This output is the value measured through the
aperture ol 7 mm diameter at a distance of 200 mm

from the objective lens surface on the Optical Pick-

up Block.
Frequency response

2-20,000 Hz 1 0.5 dB
Signal to noise ratio

More than 102 dB
Dynamic range More than 95 dB
Harmonic distortion

Less than 0.003% (1 kHz)
Channel separation

More than 95 dB (1 kHz)
Wow and flutter Below measurable limit

Outputs jacks

LINE OUT (FIXED) Output level 2 V (at 50 kilohms)
(phono jacks) Load impedance over 10 kilohms

LINE OUT Output level max. 2 V (at 50 kilohms)
(VARIABLE) Load impedance over 50 kilohms
(phono jacks)

HEADPHONES Output level max. 15 mW

(stereo phone jack) Load impedance 32 ohms

Except US model:
DIGITAL OUT Output level 0.5 V pp (at 75 ohms)
(phono jack) Load impedance 75 ohms

Power requirements
US model: 120 VAC, 60 Hz
AEP model: 220 V AC, 50l60 H2
E model: 110-120 or 220-240 V
AC, adjustable, 50/60 Hz
Power consumption
US, AEP model: 13 W
E model: 14 W

Dimensions Approx. 430 X 115 x 365 mm (wlh/d)

(17 x 4% x 143/; inches)

including projecting parts and controls
Weight Approx. 6.6 kg (14 lb 9 02), net

Supplied accessories
Remote commander (1)
Disc magazine (1)
CD booklet holder (1)
Audio signal connecting cord
(phono plug X 2 H phono plug x 2) (1)
Sony SUM»3 (NS) batteries (2)

Remote commander
Remote control system
Infrared control
Power requirements
3 V DC with two size AA (R6) batteries

Dimensions Approx. 62 x 20 x 1685 mm (w/h/d)
(21/; x /16 x 6I4 inches)
Weight Approx. 130 g (5 oz) incl. batteries

Design and specifications subject to change without notice.

COMPACT DISC PLAYER

SONZ

Page 2

CDP-C100

FEATURES TABLE OF CONTENTS

The compact disc player is equipped with an automatic
disc changer which allows you to play up to 10 discs in a

row You can choose from a large number and wide variety of m m 3-3132
selections. Specifications.....................1
Features............... ..... ...2

Custom tlle tunctions include:

oThe disc memo function allows you to name your discs
and to store those names in memory.

OThe program bank function allows you to store your SECTION 1 GENERAL . . _ . . . . . . .
program and its name in memory.

Servicingnotes.................... 3

. o u o u 5

1-1. Location and Function of Controls . . . . . 5

A variety of playing modes:

0 Program play allows you to play up to 19 selections or the SECTION 2. OUTLINE
whole disc, in any desired order

- Shuffle play for playing selections in random order

. Repeat play for repeating individual discs, all the discs in a
magazine, program and shuffle play SECTION 3. ELECTRICAL ADJUSTMENTS . . . 7

3-1. RF PLL Frequency Adjustment
/Lock Frequency Check . . . . . . 7

2-1. Switch and Sensor operations . . . . . . . . 6

The easy-to-use disc magazine
Allows you to play a particular set of discs at any time simply

byinserting the disc magazine into theCD player. Additional 3'2' F°°us Bias Adjusment - ' ' ~ - . - ~ - - ' - 7
magazines (optional)allowsyou to createawide variety of 3-3. E-F Balance Adjustment. . . . . . . . . . . 3
sets.

3-4. Focus/Tracking Gain
Adjustment (Reference) . . . . . . 3
SECTIONL DIAGRAMS 10
4-1, Circuit Boards Location . . . . . . . . . 10
4-2, Semiconductor Lead Layouts . . . . . . . . 11
4.3_ Schematic on waveforms . . . . . . . . . . 12
4-4, Printed Wiring Boards . . . . . . . . . . . . 13
4-5. Schematic Diagram . . . . . . . . . . .. . 17
4-6. Fluorescent Indicator 'mbe (FLD801) . . . 20
4-7.1CBlockDiagram...............20

SECTION 5. EXPLODED VEWS . . . . . . . . . .23

SECTION 6. ELECTRICAL PARTS LIST . . . . . '28
