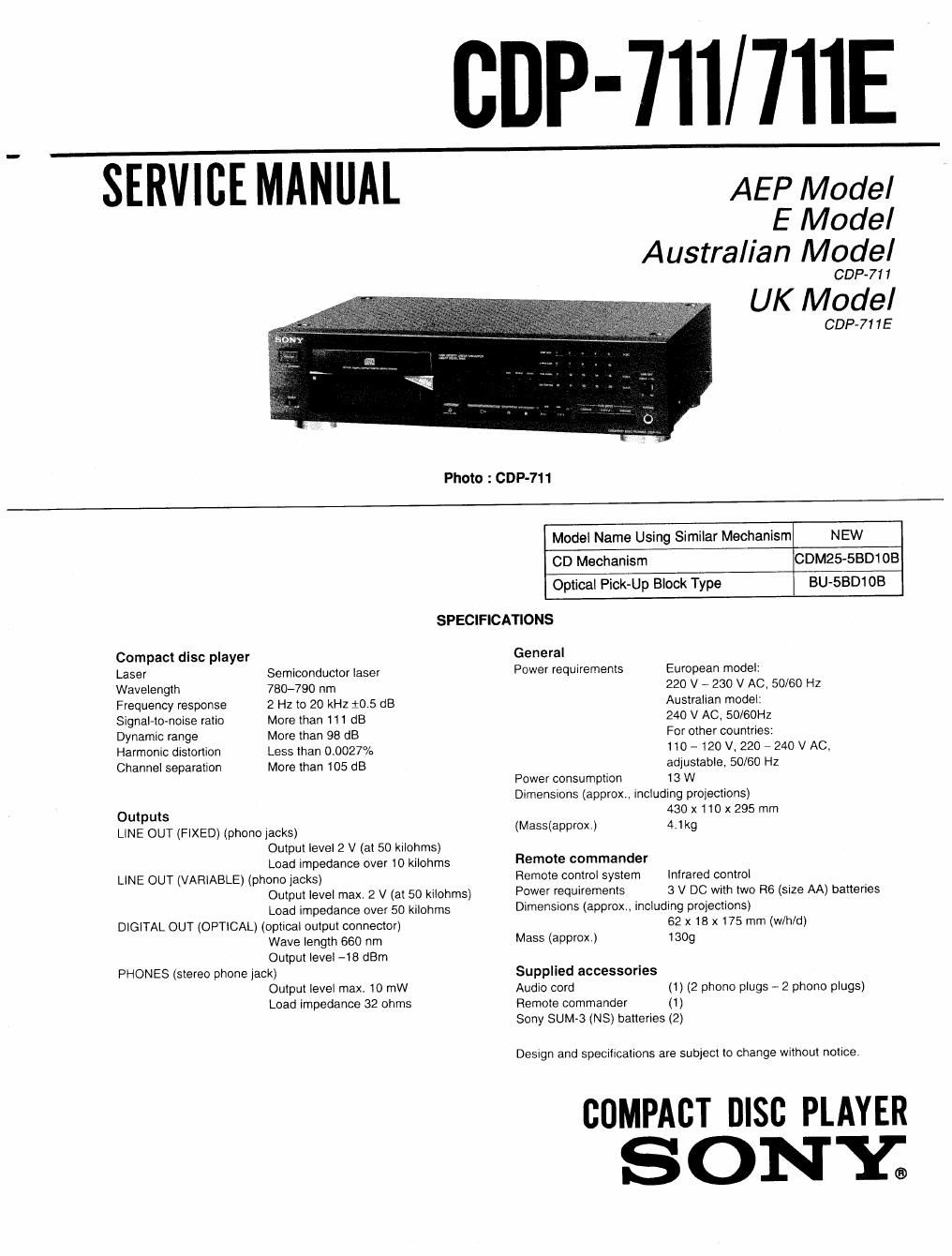

Sony cdp 711 service manual

Page 1

-711 711E

SERVICE MANUAL

AEP Model
E Model
Australian Model

GDP-71 1

UK Model

GDP-71 15

Photo : GDP-711

Model Name Using Similar Mechanism NEW
CD Mechanism CDM25-SBD1OB

Optical Pick-Up Block Type BU-SBD1 OB
SPECIFICATIONS
Compact disc player General
Laser Semiconductor laser Power requirements European model:
Wavelength 780-790 nm 220 V - 230 V AC 50/60 HZ

2 HZ to 20 kHz i0.5 £18
More than 111 dB
More than 98 dB

Less than 00027°/a
More than 105 dB

Frequency response
Signal-to-noise ratio
Dynamic range
Harmonic distortion
Channel separation

Outputs
LINE OUT (FIXED) (phono jacks)
Output level 2 V (at 50 kilohrns)
Load impedance over to kilohms
LINE our (VARIABLE) (phono jacks)
Output level max. 2 V (at 50 kilohrns)
Load Impedance over 50 kilohms
DIGITAL OUT (OPTICAL) (optical output connector)
Wave length 660 nm
Output level -18 dBm
PHONES (stereo phone jack)
Output level max. 10 mW
Load impedance 32 ohms

Australian model:
240 V AC. 50/60HZ
For other countries:
110 -120 V, 220 4240 V AC,
adjustable. 50/60 Hz
Power consumption 13 W
Dimensions (approx. including projections)
430 x 110x 295 mm
(Mass(approx.) 4,1kg

Remote commander
Remote control system Infrared control
Power requirements 3 V DC with two R6 (size AA) batteries
Dimensions (approx, including projections)
62 x 18 x 175 mm (w/h/d)
Mass (approx) 1309

Supplied accessories

Audio cord (1) (2 phone plugs - 2 phone plugs)
Remote commander (1)

Sony SUM-3 (NS) batteries (2)

Design and specnlications are subject to change without notice.

COMPACT Disc PLAYER
SONY;

Page 2

TABLE OF CONTENTS

Seaman m Bags:
Specifications ~- 1
Model Identificatio 2
Motes on handling the optical pick-up block or base unit ~~ 2
1. GENARAL
Idenu'fying Parts ..................................................................... 3
2. DISASSEMBLY
2_1. ant Panel Removal ........................................... 4
22. MD (BU-SBDIOB) Removal ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 4
3. ELECTRICAL BLOCK CHECKING ~~~~~~~~~~~~~~~~~~~~~ 5
MODEL IDENTIFICATION
-Model Number Label-
GDP-711
I

SONYD MODEL Nob

COMPACT DISC PLAYER

I

W

SERIAL NO.

MADE IN JAPAN
AEP model : A0220-230V ~50/60Hz
Australian model : AC 240V ~50/60Hz
E, Saudi Alabia model : AC 100-120V, 220-240V,

~50/60Hz

GDP-711/71 1 E

SONYo MODEL NO W

COM PACT DISC PLAYER

V///////////////////////%

SERIAL N0.
MADE IN FRANCE

AEP, Germany model :A0220-230V ~50/60Hz
UK model :ACZ40V ~50/60Hz

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARKA OR DOTTED
LINE WITH MARK AON THE SOHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY,

Section
4.

4-1.
4-2.
4-31
4-4.

5.
6.

Elle

DIAGRAMS

1C Pin Function
Block Diagram~~
Printed Wiring Boards -
Schematic Diagram ~~~~~~

EXPLODED VIEWS ................................................ 21

ELECTRICAL PARTS LIST ~~~~~~~~~~~

NOTES ON HANDLING 111E OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential differ-
ence generated by the changed electrostatic load, etc. on
clothing and the human body.

During repair, pay attention to electrostatic breakdown
and also use the procedure in the printed matter which is
included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be
focused on the disc reflective surface by the objective lens
in the optical pick-up block. Therefore, when checking the
laser diode emission, observe more than 30 cm away from
the objective lens.

For the United Kingdom and European countries.

_2_

This appliance is cIaSSIlied as a
CLASS 1 LASER product. The
CLASS I LASER PRODUCT
MARKING is located on the rear
exterior.

CLASSI LASER PRODUCT

LUOKAN I LASERLAITE
KLASSI LASERAPPARAT

The following caution label is located inside of the unit.

-
INVISIBLE LASER RADIAIION WHEN ops»
AVOID EXPOSURE ro BEAM
USVNLIG LASERSTRALING vsu ABNING mm
smwsnsissnmtas ER we AF UNKYIQN
UNDGAUDS zwstss FOR smmme
VAROI ; AVAVVAESSA JA SUOJALUKIYUS owmnsssr
my MTYIINA LASERSAYEILVLLE
VARNING , LASERSYMLING NAR DENNA DEL AR OPPNAD
ocn swans» AR UHXOPPLAD

CAUTlON
ADVARSEL ,

ADVARSEL

USVNLIG LASERSYRALING NAR DEKSEL AFNES
UNNGA EKSPONERING row SYRALEN

RAPPORT A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A
sun LES DIAGRAMMES SCHEMATIoUEs ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL OU
DANS LES SUPPLEMENTS PuBLIEs PAR SONY.
