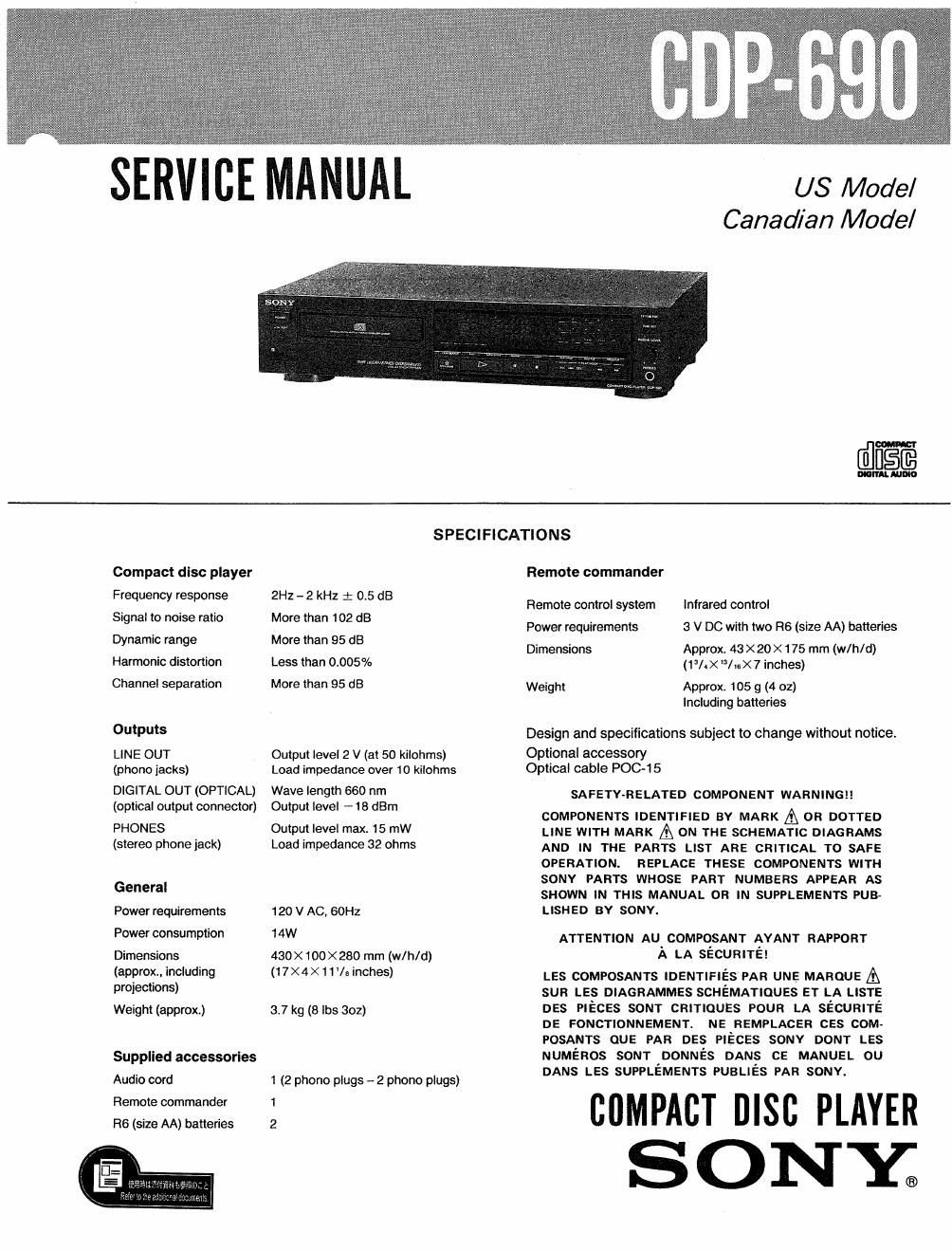

Page 1

SERVICE MANUAL

US Model
Canadian Model

E:
C:
mm
I§J

I
i

Compact disc player
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation

Outputs

LINE OUT
(phono iacks)

DIGITAL our (OPTICAL)
(optical output connector)

PHON ES
(stereo phone iack)

General
Power requirements
Power consumption

Dimensions
(approx, including
proiections)

Weight (approx)

Supplied accessories
Audio cord

Remote commander

R6 (size AA) batteries

SPECIFICATIONS

2Hz- 2 kHz i 05 dB
More than 102 dB
More than 95 dB
Less than 000.5%
More than 95 dB

Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms

Wave length 660 nm
Output level , 18 dBm

Output level max 15 mw
Load impedance 32 ohms

120 V AC, SOHZ
14W

430x1oo><280 mm (w/h/d)
(17X4X11'li inches)

37 kg (8 lbs 302)

1 (2 phono plugs - 2 phone plugs)
1
2

Remote commander

Remote control system infrared control

Power requirements a V DC with two R6 (size AA) batteries

Dimensions Approx 48 X 20 X 175 mm (w/h/d)
(1%X /st 7 inches)

Weight Approx. 105 g (4 oz)

Including batteries

Design and specifications subject to change without notice.

Optional accessory
Optical cable POO-15

SA FETY-RE LATED COMPONENT WARNING! I

COMPONENTS IDENTIFIED BV MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES composmrs IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES sour CRITIQUES POUR LA sécumré
DE FONCTIONNEMENT. NE REMPLAOER css COM-
POSANTS our: PAR DES PIECES sonv DONT LES
NUMEROS som oomués DANS c5 MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.

cIIIIIPAcI nIsc PLAYER
SONY;
