Extracted text from sony cdp 690 aep model (Ocr-read)

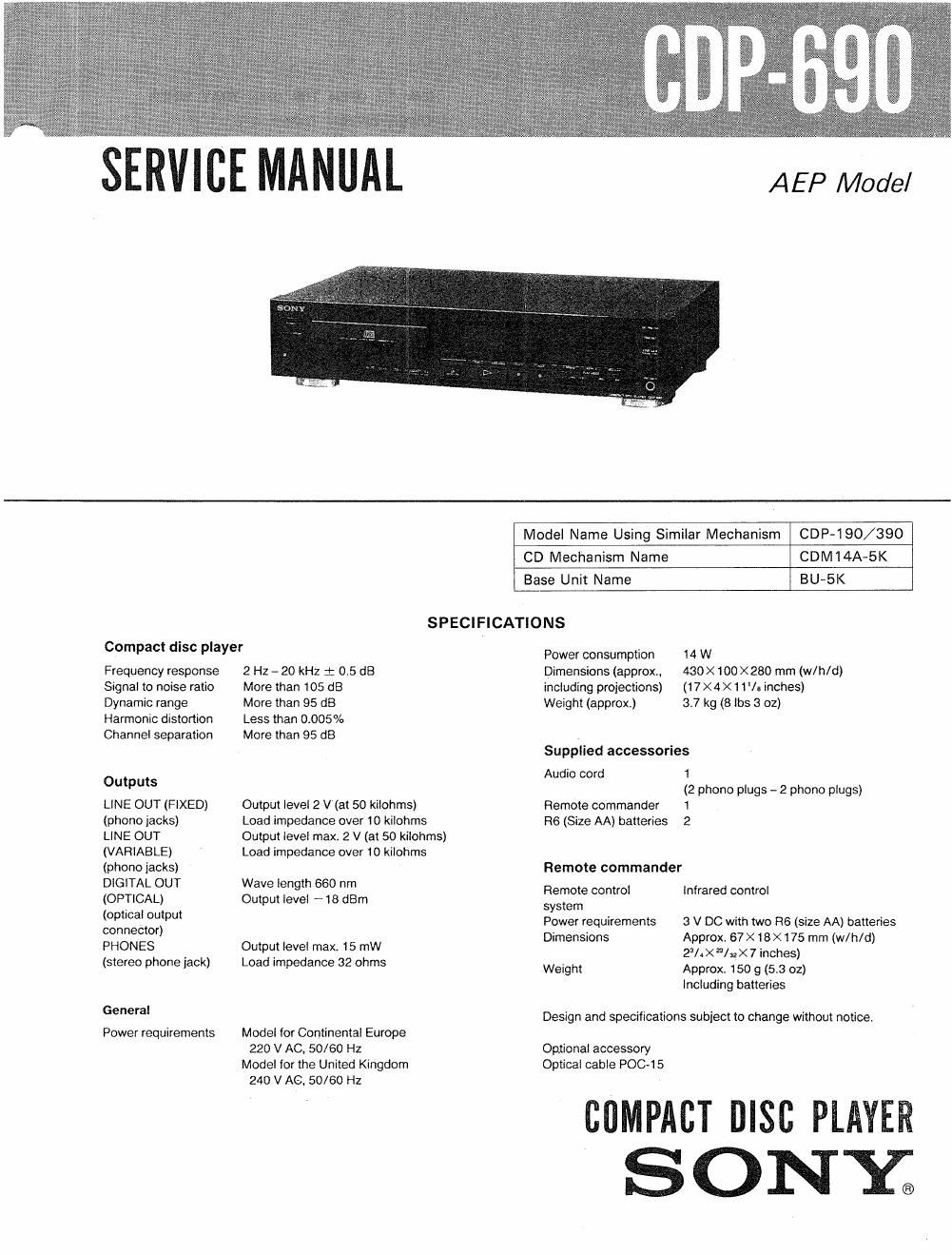

Page 1
SCIVlERVIEllNUAl
AEP Model
Model Name Using Similar Mechanism GDP-190/390
CD Mechanism Name
CDM14A-5K
Base Unit Name BU-5K
SPECIFICATIONS
Compact disc player
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Outputs
LINE OUT (FIXED)
(phono jacks)
LINE OUT
(VARIABLE)
(phone jacks)
DIGITAL OUT
(OPTICAL)
(optical output
connector)
PHONES
(stereo phone jack)
General
Power requirements
2 Hz-20 kHz 1 05 dB
More than 106 dB
More than 95 dB
Less than 0.005%
More than 95 dB
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
Output level max. 2 V (at 50 kilohms)
Load impedance over 10 kilohms
Wave length 660 nm
Output level ~18 dBm
Output level max. 15 mW
Load impedance 32 ohms
Model for Continental Europe
220 V AC. 50/60 Hz
Model for the United Kingdom
240 V AC, 50/60 Hz
Power consumption 14 W
Dimensions (approx, 430 X100 X 280 mm (w/h/d)
including proiections) (17 X4 X 1 1/s inches)
Weight (approx) 37 kg (8 lbs 3 oz)
Supplied accessories
Audio cord 1
(2 phone plugs - 2 phone plugs)
Remote commander 1
R6 (Size AA) batteries 2
Remote commander
Remote control infrared control
system
Power requirements 3 V DC with two R6 (size AA) batteries
Dimensions Approx. 67><18><175 mm (w/h/d)
2/.>«:>< 7 inches)
Weight Approx. 150 g (5.3 02)
including batteries
Design and specifications subject to change without notice.
Optional accessory
Optical cable POO-15
COMPACT nisc PLAYER
SONE
Page 2
GDP-690
TABLE OF CONTENTS
Section
SECTION 1. GENERAL
Title
SECTION 2. DISASSEMBLY
SECTION 3. ELECTRICAL ADJUSTMENTS-6
SECTION 4. DIAGRAMS
4-1. IC Block Diagram
4-2. Printed Wiring Boards
4-3. Schematic Diagram
SECTION 5. EXPLODED VIEWS
5-1. Cabinet Section
5-2. Front Panel Section
5-3. CD Mechanism Section(CDMl4A-5K)
5-4L Optical Pick-up Block(BU»5K)
SECTION 6. ELECTRICAL PARTS LIST-
[MODEL IDENTIFICATION]
SONYe MODEL N0. CUP-590
COMPACT DISC PLAYER
SERIAL N0.
WAKE TN "Firm-65- I
_______ 1._.._.____I
Identify the set with the indication of "MADE IN FRANCE" here.
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARK & ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB~
LISHED BY SONY.
ATTENTION AU COMPQSANT AYANT RAPPORT
A LA secumre!
Les COMPOSANTS IDENTIFIES PAR UNE MARQUE A
sun LES DIAGRAMMES SCHEMATIOUES er LA LISTE
DES PIECES SONT CRITIQUES POUR LA secumre
DE FONCTIONNEMENT. NE REMPLACER ces com.
POSANTS oue PAR DES Pieces souv com Les
NUMEROS SONT ooNNés DANS ce MANUEL ou
DANS Les SUPPLEMENTS pueués PAR SONY.
8
8
11
15
21
21
22
23
24
25
HOW TO OPEN THE DISC TRAY WHEN
POWER SWTOH TURNS OFF
0 Turn in the direction
of the arrow.
Cautionzwmn you work. keep the set horizontal.
NOTES ON HANDLING THE OPTICAL PICK-
UP BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may
suffer electrostatic breakdown because of the poten-
tial difference generated by the charged electrostatic
load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break
down and also use the procedure in the printed
matter which is included in the repair parts.
The flexible board is easily damaged and should be
handled with care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be
focused on the disc reflective surface by the objective
lens in the optical pickAup block. Therefore, when check-
ing the laser diode emission, observe from more than 30
cm away from the objective lens.
