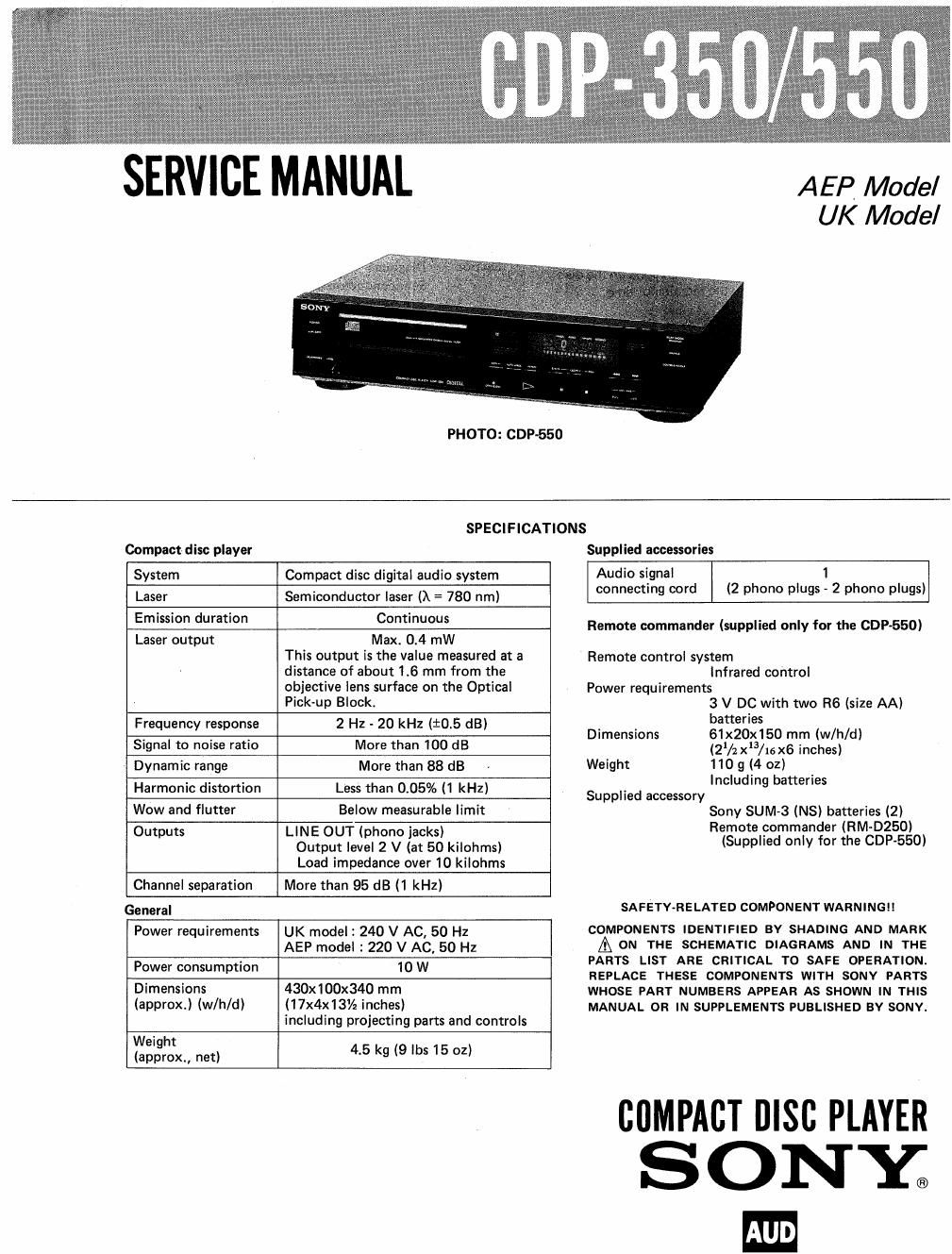

Page 1

SERVICE MANUAL

AEP Model
UK Model

PHOTO: GDP-550

Compact disc player

SPECI FICATIONS

Supplied accessories

System Compact disc digital audio system
Laser Semiconductor laser Ox = 780 nm)
Emission duration Continuous
Laser output Max. 0.4 mW

This output is the value measured at a
distance of about 1.6 mm from the
objective lens surface on the Optical
Pick-up Block.

Frequency response

2 Hz - 20 kHz (10.5 dB)

Signal to noise ratio

More than 100 dB

Dynamic range

More than 88 dB

Harmonic distortion

Less than 0.05% (1 kHz)

Wow and flutter

Below measurable limit

Outputs

LINE OUT (phone jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms

Channel separation

More than 95 dB (1 kHz)

General

Power requirements

UK model: 240 V AC, 50 Hz
AEP model : 220 V AC, 50 HZ

Power consumption

10W

Dimensions
(approx.) (w/h/d)

430x100x340 mm
(17x4x13/2 inches)
including projecting parts and controls

Weight
(approx., net)

4.5 kg (9 lbs 15 oz)

Audio signal 1
connecting cord (2 phone plugs - 2 phone plugs)

Remote commander (supplied only for the GDP-550)

Remote control system
Infrared control

Power requirements
3 V DC with two R6 (size AA)
batteries

Dimensions 61x20x150 mm (w/h/d)
(21/2 x3/16 x6 inches)
Weight 110 g (4 oz)

Including batteries
Supplied accessory
Sony SUM-3 (NS) batteries (2)
Remote commander (RM-0250)
(Supplied only for the GDP-550)

SA FETV-RELATED COMPONENT WARNINGI I

COMPONENTS IDENTIFIED BY SHADING AND MARK

A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BV SONY.

COMPACT DISC PLAYER

SONY;
I!!!
