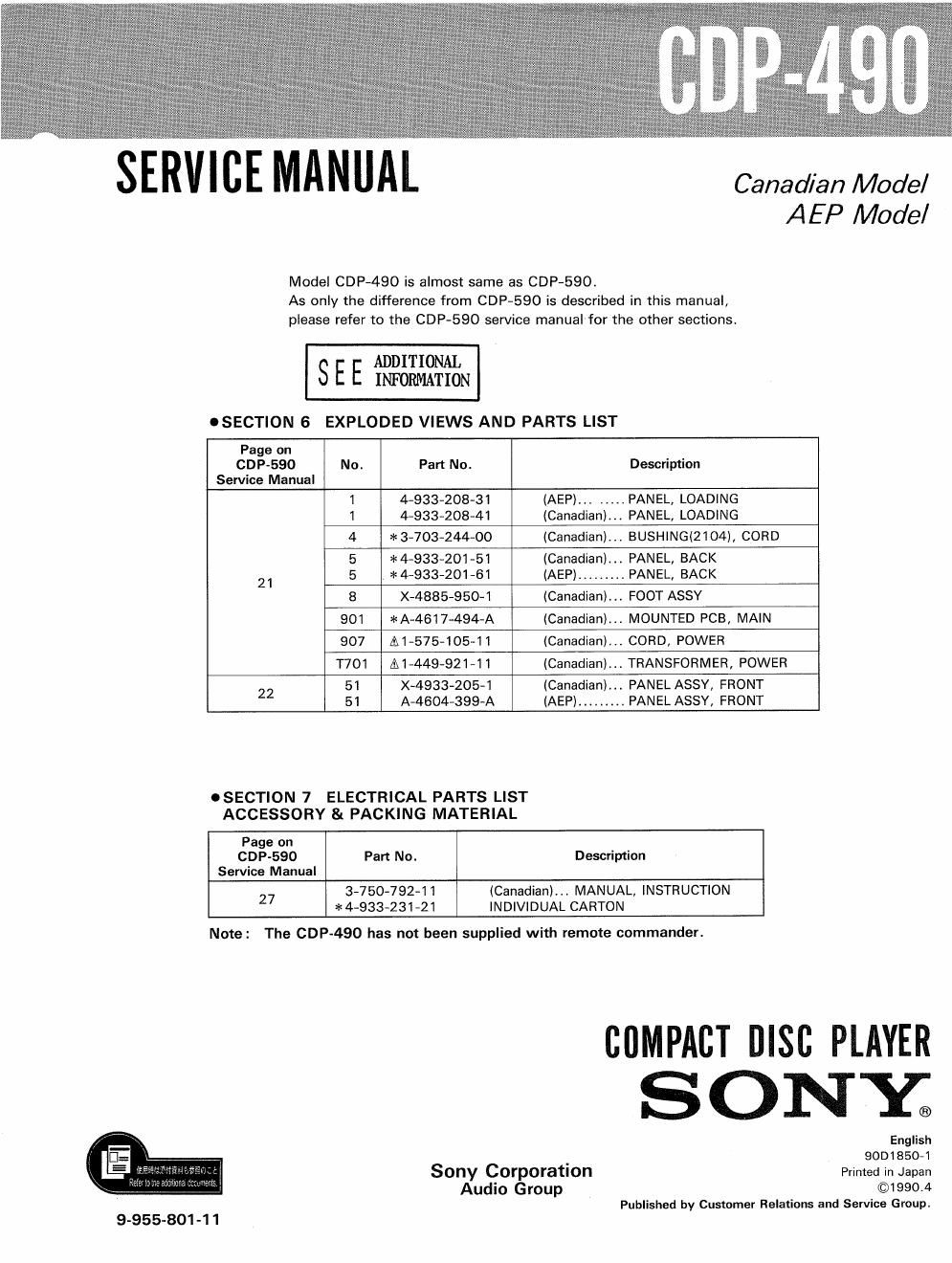

Page 1

SERVICE MANUAL Canadian Model

AE P Mode/

Model GDP-490 is almost same as COP-590.
As only the difference from CUP-590 is described in this manual,
please refer to the GDP-590 service manual'for the other sections.

ADDITIONAL
S E E INFORMATION

OSECTION 6 EXPLODED VIEWS AND PARTS LIST

Page on
GDP-590 No. Part No. Description
Service Manual
1 4-933-208-31 (AEP) ........ PANEL, LOADING
1 4-933-208-41 (CanadianL. PANEL, LOADING
4 *3-703-244-00 (Canadian).r. BUSHING(2104), CORD
5 *4-933-201-51 (CanadianIn PANEL, BACK
21 5 , *4-933-201-61 (AEP) ,,,,,,,,, PANEL, BACK
8 X»4885»950-1 (Canadian)..r FOOT ASSY
901 *A-4617-494»A (Canadian)... MOUNTED PCB, MAIN
907 Lin-57540541 (Canadian)... CORD, POWER
T701 A1-449-921-11 (Canadian)... TRANSFORMER, POWER
22 51 X-4933-205-1 (Canadian)... PANEL ASSY, FRONT
51 A-4604-399~A (AEP) ......... PANEL ASSY, FRONT

OSECTION 7 ELECTRICAL PARTS LIST
ACCESSORY & PACKING MATERIAL

Page on
GDP-590 Part No. Description
Service Manual
27 3-750-792-11 (Canadian)... MANUAL, INSTRUCTION
*4-933-231-21 INDIVIDUAL CARTON

Note: The GDP-490 has not been supplied with remote commander.

summer Disc PLAYER
SONY;

English

. 90D1850-1

Sony Corporatlon Printed in Japan
Audio Group @9904

Published by Customer Relations and Service Group.

9-955-801-11
