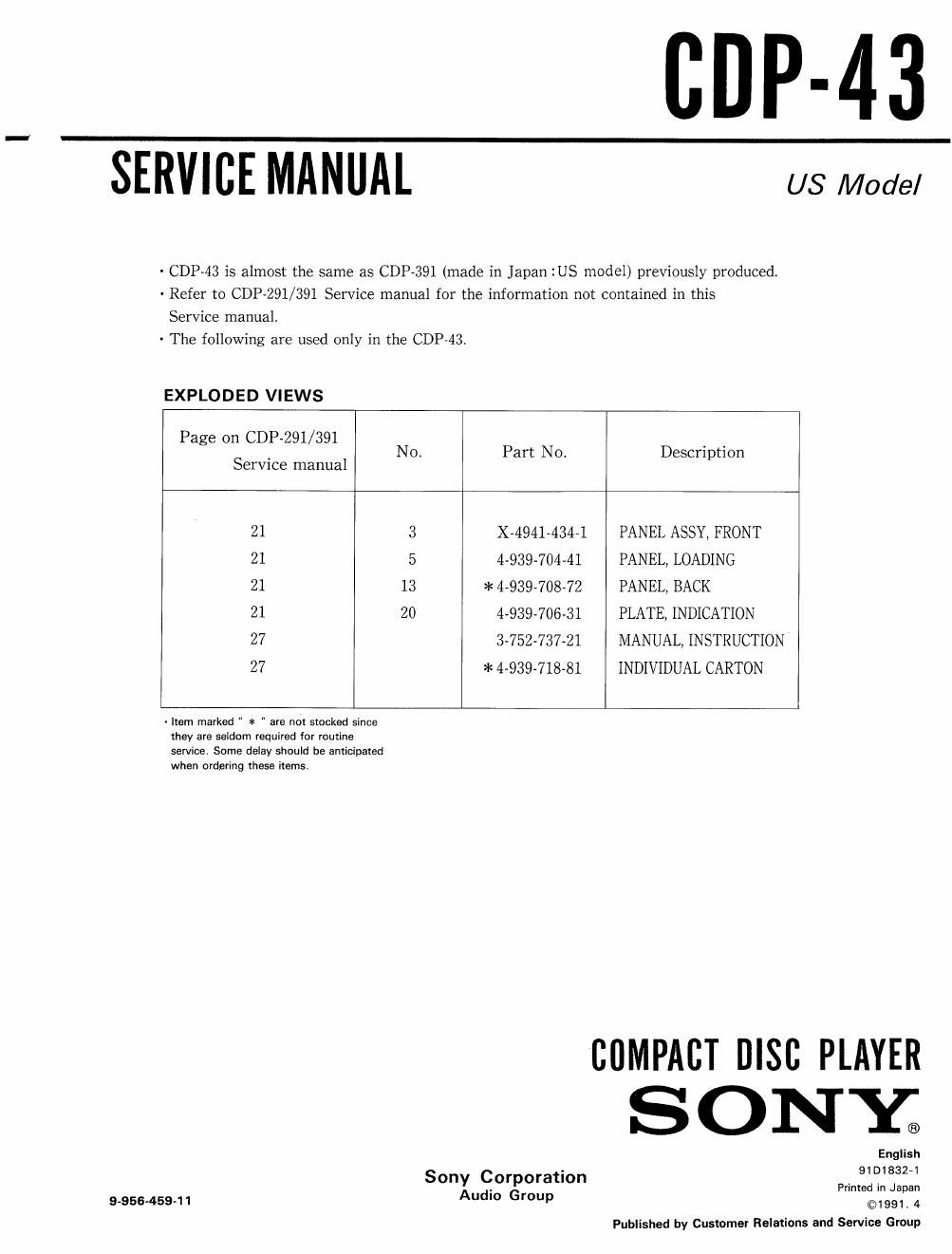

EDP-43

SERVICE MANUAL

- CDP»43 is almost the same as CDP-39l (made in Japan :US model) previously produced.
. Refer to CDP-Z91/391 Service manual for the information not contained in this

Service manual.

- The following are used only in the CDP-43I

EXPLODED VIEWS

U8 Model

Page on CDP-Z9l/391

Service manual No Part No. Description
21 X-4941-43471 PANEL ASSY, FRONT
21 4-939704-41 PANEL, LOADING
21 13 * 4-939-708-72 PANEL, BACK
21 20 4-939»706-31 PLATE, INDICATION
27 3752-73721 MANUAL, INSTRUCTION
27 * 4-939-718-81 INDIVIDUAL CARTON

# Item marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items,

9-955-459-1 1

Sony Corporation
Audio Group

COMPACT msc PLAYER
SONY;

Engfish
91018324
Printed in Japan
@1991. 4

Published by Customer Relations and Service Group
