Sony cdp 23 service manual

This is the 1 pages manual for sony cdp 23 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 1
sony cdp 23 service manual

Extracted text from sony cdp 23 service manual (Ocr-read)

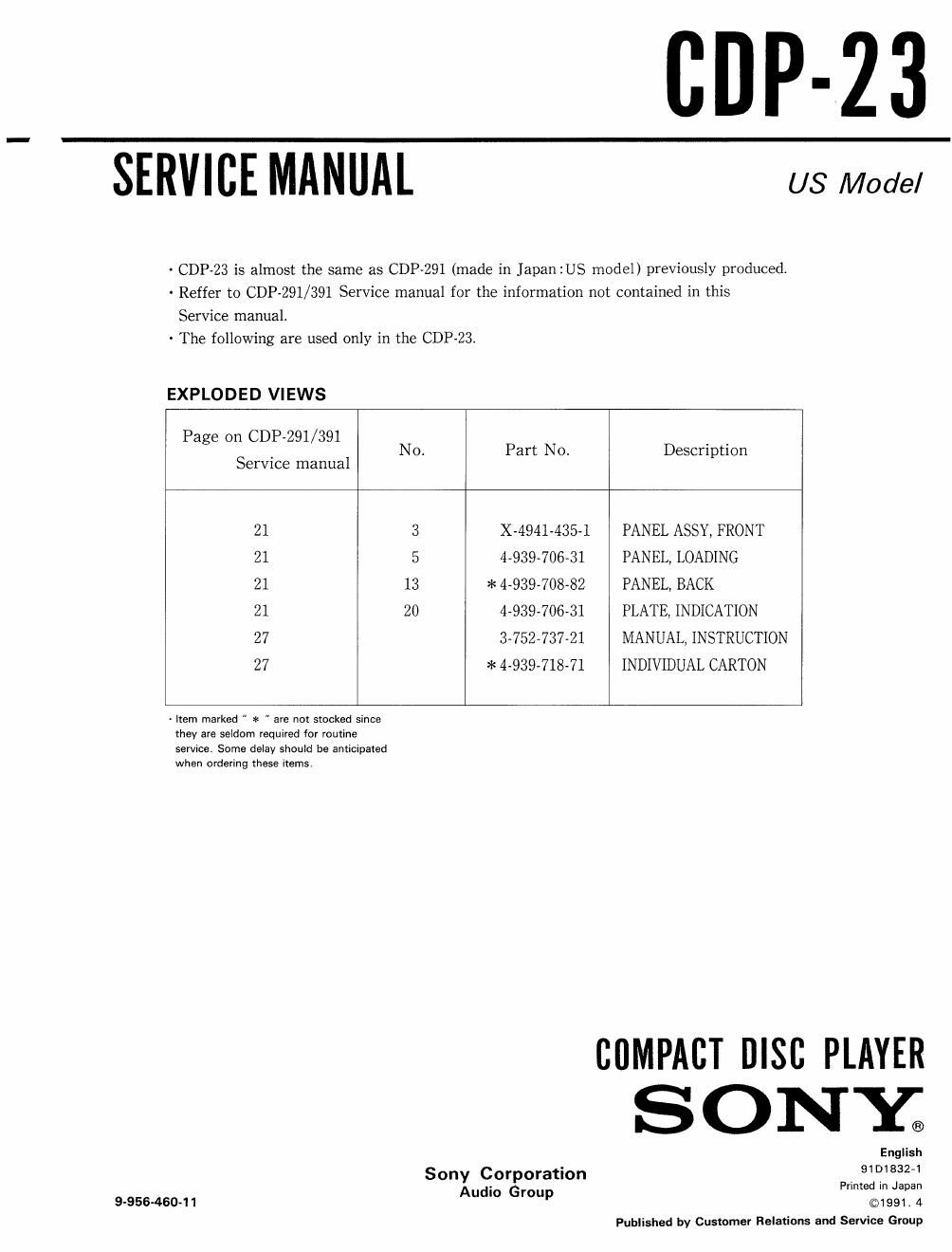

Page 1

EDP-23

SERVICE MANUAL

- GDP-23 is almost the same as GDP-291 (made in Japan :US model) previously produced.
' Reffer to CDP-29l/391 Service manual for the information not contained in this

Service manual.

~ The following are used only in the CDP-23.

EXPLODED VIEWS

US Model

Page on GDP-291/391 . ,
. No. Part No. Descr1pt1on
Servrce manual
21 3 X-4941-435-1 PANEL ASSY, FRONT
21 5 44339-70631 PANEL, LOADING
21 13 * 493970882 PANEL, BACK
21 20 4-939-706-31 PLATE, INDICATION
27 3-752-737-21 MANUAL, INSTRUCTION
27 * 4939-71871 INDIVIDUAL CARTON

- Item marked " * " are not stocked since
they are seldom required for routine
service Some delay should be anticipated

when ordering these items.

9-956-4604 1

Sony Corporation
Audio Group

COMPACT DISC PLAYER
SONY;

English

91 01 832-1

Printed in Japan

@1991. 4

Published by Customer Relations and Service Group
