sony cdp 209 es service manual

Extracted text from sony cdp 209 es service manual (Ocr-read)

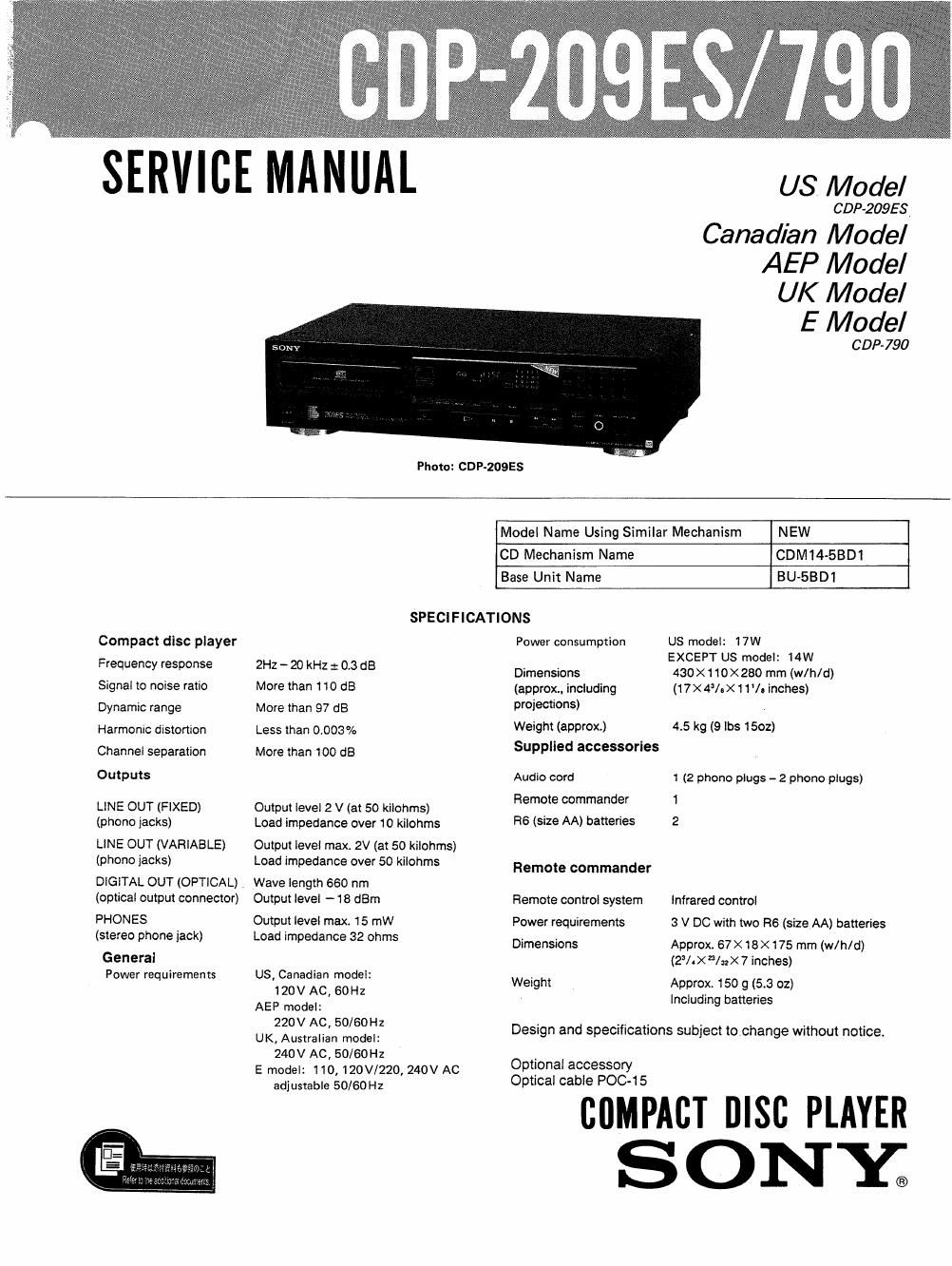

Page 1

US Model

CDP-209ES

Canadian Model
AEP Model
UK Model
E Model

Compact disc player
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Outputs

LlNE OUT (FIXED)
(phono jacks)

LlNE OUT (VARIABLE)
(phone jacks)

DIGITAL OUT (OPTICAL)
(optical output connector)

PHON ES
(stereo phone jack)

General
Power requirements

CDP790
Photo: CDP-ZOSES
Model Name Using Similar Mechanism NEW
CD Mechanism Name CDM14-SBD1
Base Unit Name BU-BBDi

SPECIFICATIONS

2H2 - 20 kHz 2 0.3 dB
More than 110 dB
More than 97 d8
Less than 0.003%
More than 100 dB

Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms

Output level max. 2V (at 50 kilohms)
Load impedance over 50 kilohms

Wave length 660 nm
Output level - 18 dBm

Output level max 15 mW
Load impedance 32 ohms

US, Canadian model:
120V AC, GOHz
AEF model:
220V AC, 50/60Hz
UK, Australian model:
240V AC, 50/60Hz
E model: 110, 120V/220, 240V AC
adjustable 50/60Hz

US model: 17W
EXCEPT US model: 14W

Power consumption

Dimensions 430x110x280 mm (w/h/d)
(approx. including (17 X 43/. X 1 1/. inches)
projections)

Weight (approx) 4.5 kg (9 lbs 1502)

Supplied accessories

Audio cord 1 (2 phono plugs - 2 phone plugs)
Flemote commander 1

R6 (size AA) batteries 2

Remote commander

Infrared control
3 V DC with two R6 (size AA) batteries

Remote control system

Power requirements

Dimensions Approx. 67X18X175 mm (w/h/d)
(2/.><7 inches)
Weight Approx. 150 g (5.3 oz)

Including batteries

Design and specifications subject to change without notice.

Optional accessory
Optical cable POO-15

chPAcr msc PLAYER
SONYr
