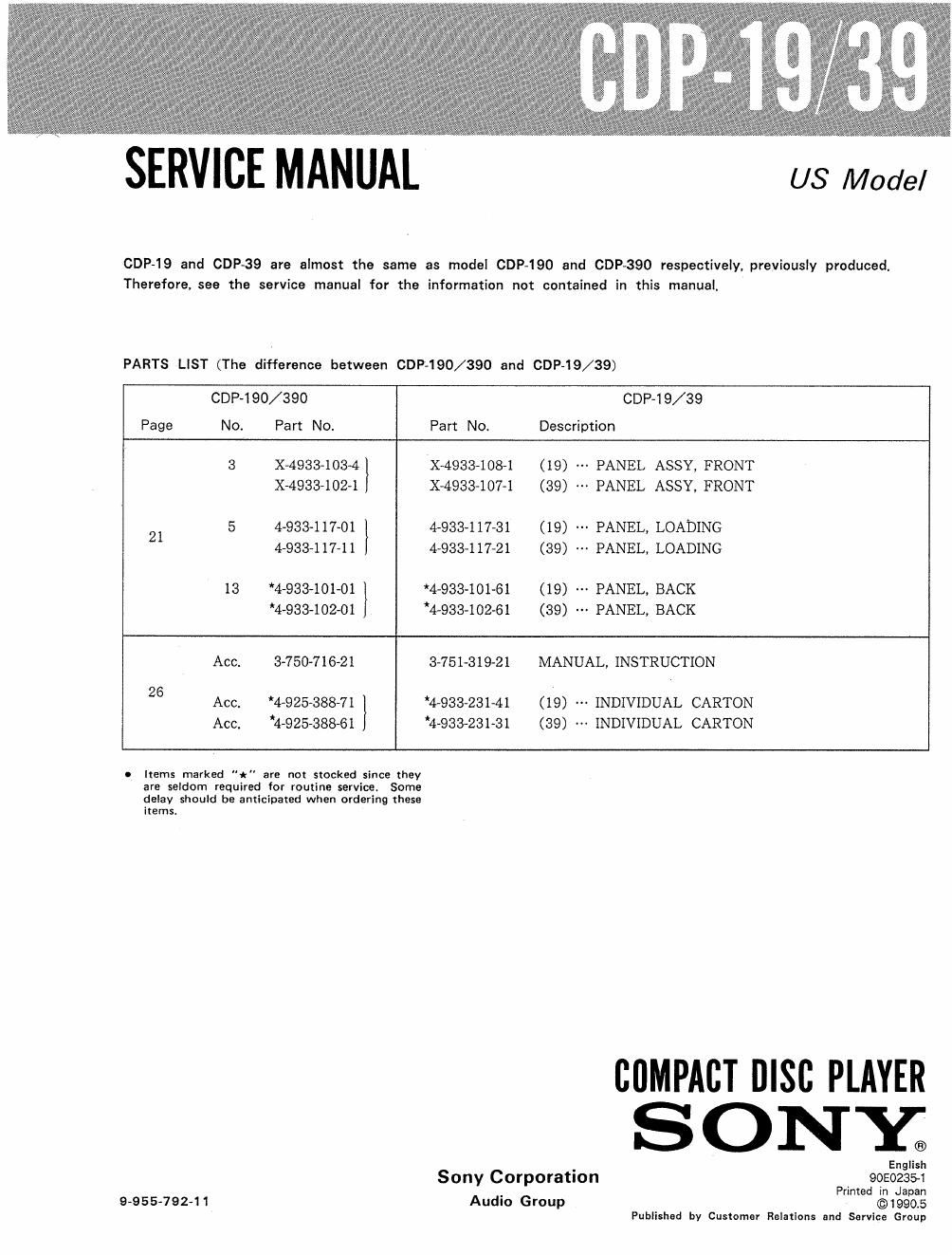

SERVICE MANUAL

US Model

GDP-19 and CDP39 are almost the same as model CDPv190 and GDP-390 respectively, previously produced.
Therefore. see the service manual for the information not contained in this manual.

PARTS LIST (The difference between CDP-190/390 and CDP-l9/39)

GDP-190/390 CDP19/39
Page No. Part No. Part N01 Description
3 X-4933-103-4] X-4933-108-1 (19) PANEL ASSY, FRONT
X4933-102-1 X-4933-107.1 (39) PANEL ASSY, FRONT
21 5 4-933-117-01 } 4-983-117-31 (19) PANEL, LOADING
4-933-117-11 4-933-117-21 (39) PANEL, LOADING
I3 *4-93340101 *4-933-101-61 (19) PANEL, BACK
*4-933-102-01 '4-933-102-61 (39) PANEL, BACK
Acc. 3-750-716-21 3-751-319-21 MANUAL, INSTRUCTION
26 Acc. *4-925-388-71 *4r933~231~41 (19) INDIVIDUAL CARTON
Acc. i51925-38961 4-933231-31 (39) INDIVIDUAL CARTON

0 Items marked "me are not stocked since they
are seldom required for routine service.
delay should be anticipated when ordering these

items.

9-955-79241

comm msc PLAYER
SONY;

. English

Sony Corporation 90502351
, Printed in Japan

Published by Customer Relations and Service Group
