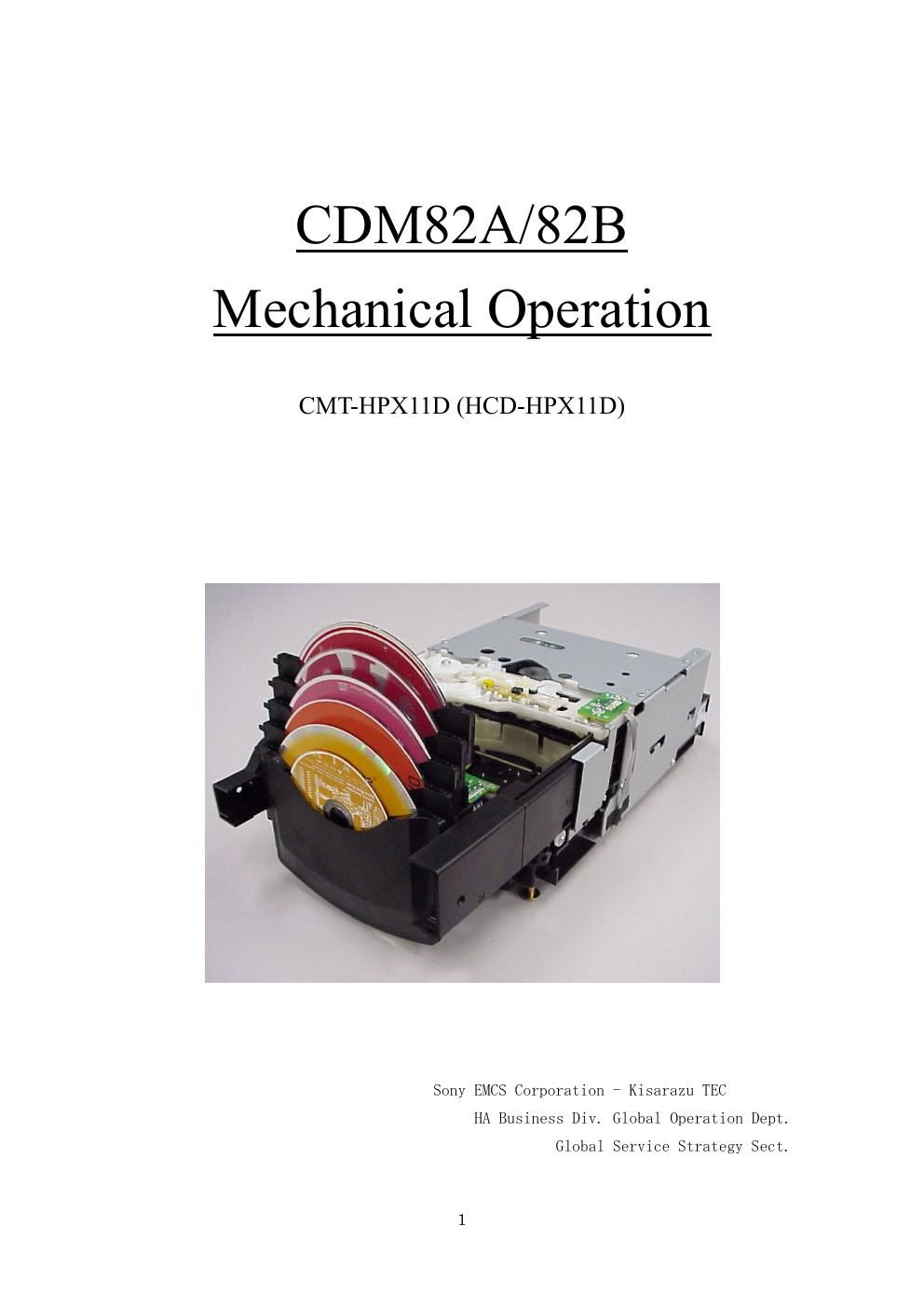

Page 1
2 Table of Contents 1. Ejecting the Disc Page 3 (1) Ejecting the disc in the stocker block (2) Ejecting the disc chucked in the CDM80 Page 4 2. Operation Mechanism Page 6 (1) Motor (2) Detecting the operation Page 7 (3) Detecting the disc Page 8 3. Phase Adjustment of the Mechanism Block Page 9 (1) Rotary encoder (2) SUB GEAR (IDLER) 4. Maintenance Page10 (1) Adding grease (2) Cleaning 5. Initial Operation of the Mechanism Block Page12 6. Troubleshooting (1) Checking the Disc (2) Checking the distortion of the unit (Important) Page number and CDM name The referenced page number and figure number in parentheses are those of the HCD-HPX11D Service Manual. In the following description, the whole changer block is referred to as "CDM82" and the disc chucking mechanism block is referred to as "CDM80".
Page 2
3 1. Ejecting the Disc (1) Ejecting the disc in the stocker block If you rotate the PULLEY (LOD MOTOR) on the side surface of the mechanical block after removing the CDM82 from the set, the stocker block moves slightly forward. (Refer to the first figure in "3-15 Arm Section" on page 20.) Gently pull out the stocker block that has been moved slightly forward, to reveal the LOADING MOTOR (page 112, M871). Pull out the stocker block as far as possible. Rotate, with your fingers the PULLEY(page 112, 956) around which the loading motor belt is wound, to rotate the stocker by 90 degrees.
