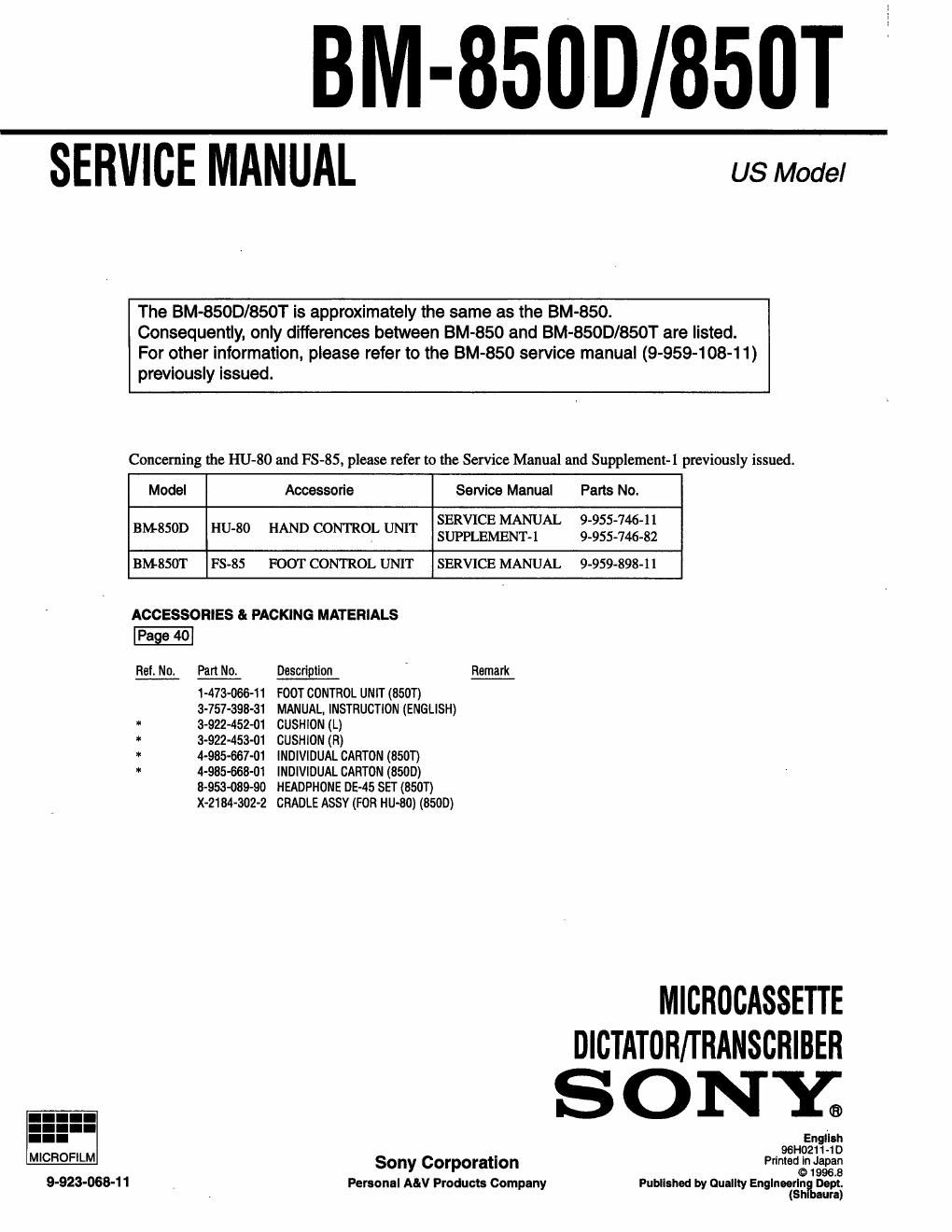

Page 1
BM-85IID/850T
SERVICE MANUAL us Model
The BM-85OD/850T is approximately the same as the BM-850.
Consequently, only differences between BM-850 and BM-850D/850T are listed.
For other information, please refer to the BM-850 service manual (9-959-108-1 1)
previously issued.
Concerning the HU-80 and FS-SS, please refer to the Service Manual and Supplement-1 previously issued.
Model Accessorie Service Manual Parts No.
SERVICE MANUAL 9-955-746-11
SUPPLEMENT-1 9-955-746-82
BM-SSUF FS-SS FOOT CONTROL UNIT SERVICE MANUAL 9-959-898-11
BM-SSOD HU-SO HAND CONTROL UNIT
ACCESSORIES a. PACKING MATERIALS
Pa = 40
Ref. No. Part No. Description 7 Remark
1-473v066-11 FOOT CONTROL UNIT (850T)
3-757-398-31 MANUAL, INSTRUCTION (ENGLISH)
3-922-452-01 CUSHION (L)
3'922-453-01 CUSHION (R)
4-985-667-01 INDIVIDUAL CARTON (B50T)
4-985-668-01 INDIVIDUAL CARTON (850D)
8-953-089-90 HEADPHONE DE-45 SET (850T)
X-2184-302-2 CRADLE ASSV (FOR HU-80) (B500)
*nnr
MICROCASSETTE
DICTATOR/TIIANSCRIBER
SONY;
English
. 96H9211-1D
Sony Corporation 3133;
9-923-068-11 , Personal MW Products Company Published by Quality Englneigagbbeéti
' I aura
