Sony BDV E880 Service Manual
This is the 4 pages manual for Sony BDV E880 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sony BDV E880 Service Manual (Ocr-read)

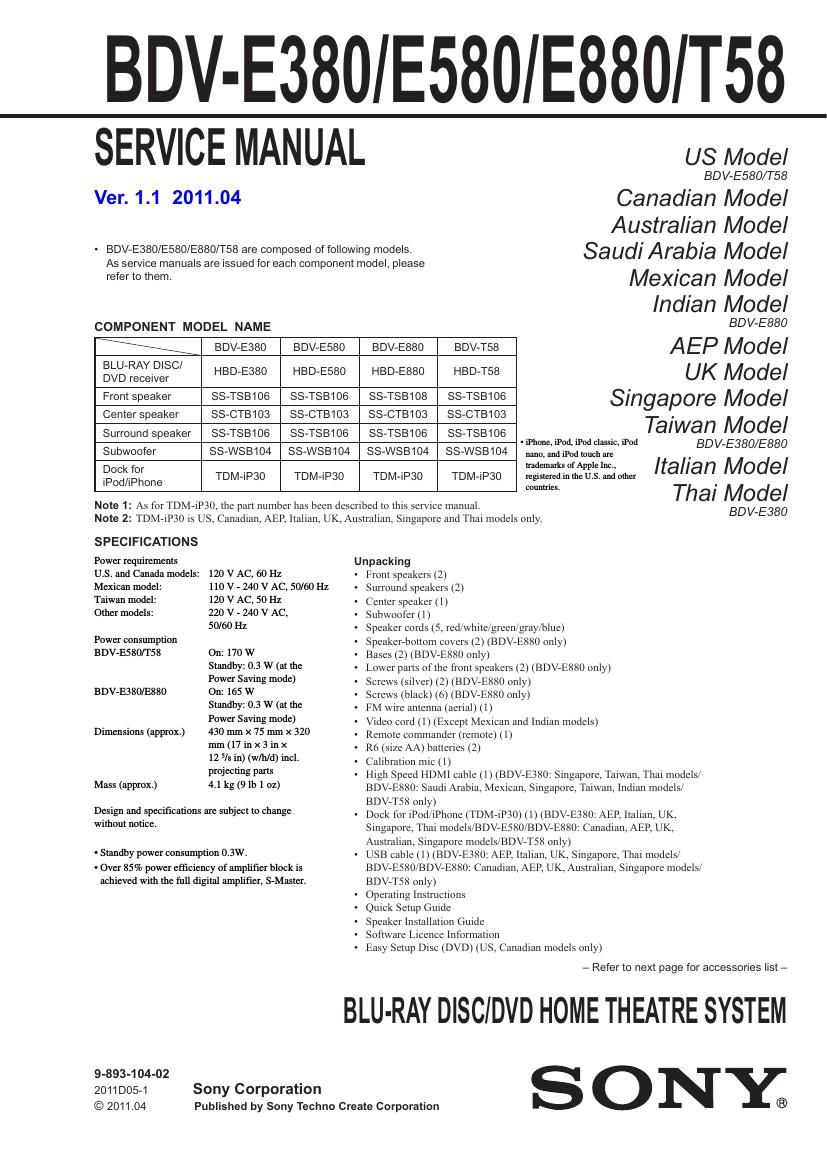

Page 1
BDV-E380/E580/E880/T58 2 ACCESSORIES 4-261-380-13 MANUAL, INSTRUCTION (ENGLISH) (E580/T58) 4-261-380-31 MANUAL, INSTRUCTION (SPANISH) (E880: MX) 4-261-381-11 MANUAL, INSTRUCTION (ENGLISH) (E880: CND) 4-261-381-21 MANUAL, INSTRUCTION (FRENCH) (E880: CND) 4-261-387-12 MANUAL, INSTRUCTION (ENGLISH) (E380: UK, SP/E880: EA, SP, IND) 4-261-387-21 MANUAL, INSTRUCTION (FRENCH, SPANISH, GERMAN) (E380: AEP, IT) 4-261-387-31 MANUAL, INSTRUCTION (DUTCH, ITALIAN, POLISH) (E380: AEP) 4-261-387-81 MANUAL, INSTRUCTION (TRADITIONAL CHINESE) (E380: SP, TW/E880: SP, TW) 4-261-388-31 MANUAL, INSTRUCTION (ARABIC) (E880: EA) 4-261-388-41 MANUAL, INSTRUCTION (THAI) (E380: TH) 4-261-389-11 MANUAL, INSTRUCTION (PORTUGUESE) (E380: AEP, IT) 4-261-389-21 MANUAL, INSTRUCTION (SWEDISH) (E380: AEP, IT) 4-261-389-31 MANUAL, INSTRUCTION (DANISH, FINNISH) (E380: AEP, IT) 4-261-389-41 MANUAL, INSTRUCTION (GREEK) (E380: AEP, IT) 4-261-389-51 MANUAL, INSTRUCTION (CZECH, HUNGARIAN) (E380: AEP, IT) 4-261-389-61 MANUAL, INSTRUCTION (TURKISH) (E380: AEP, IT) 4-261-389-71 MANUAL, INSTRUCTION (SLOVAKIAN) (E380: AEP, IT) 4-261-390-11 MANUAL, INSTRUCTION (ENGLISH) (E880: UK, AUS) 4-261-390-21 MANUAL, INSTRUCTION (FRENCH, SPANISH, GERMAN) (E880: AEP) 4-261-390-31 MANUAL, INSTRUCTION (DUTCH, ITALIAN, POLISH) (E880: AEP) 4-261-391-11 MANUAL, INSTRUCTION (PORTUGUESE) (E880: AEP) 4-261-391-21 MANUAL, INSTRUCTION (SWEDISH) (E880: AEP) 4-261-391-31 MANUAL, INSTRUCTION (DANISH, FINNISH) (E880: AEP) 4-261-391-41 MANUAL, INSTRUCTION (GREEK) (E880: AEP) 4-261-391-51 MANUAL, INSTRUCTION (CZECH, HUNGARIAN) (E880: AEP) 4-261-391-61 MANUAL, INSTRUCTION (TURKISH) (E880: AEP) 4-261-391-71 MANUAL, INSTRUCTION (SLOVAKIAN) (E880: AEP) 4-261-885-11 DISC, SETUP (2011) (Easy Setup Disc (DVD)) (US, CND) 4-288-640-11 MANUAL, INSTRUCTION (DUTCH, ITALIAN, POLISH) (E380: IT) Ref. No. Part No. Description Remark - Abbreviation AUS : Australian model CND : Canadian model EA : Saudi Arabia model IND : Indian model IT : Italian model MX : Mexican model SP : Singapore model TH : Thai model TW : Taiwan model Ve r. 1 . 1 – Continued on next page –
Page 2
BDV-E380/E580/E880/T58 3 Ref. No. Part No. Description Remark 1 1-837-584-21 CORD (WITH CONNECTOR) (SPEAKER) (Speaker cords (5, red/white/green/gray/blue)) (E380: SP, TW, TH/E580/T58) 1 1-837-584-31 CORD (WITH CONNECTOR) (SPEAKER) (Speaker cords (5, red/white/green/gray/blue)) (E380: AEP, IT, UK) 1 1-842-744-21 CORD WITH CONNECTOR (SPEAKER) (Speaker cords (5, red/white/green/gray/blue)) (E880) 2 1-754-060-21 ANTENNA (FM) (FM wire antenna (aerial)) (E380/E880: EXCEPT CND) 2 1-793-184-41 CONNECTOR (F TYPE ADAPTOR) (FM wire antenna (aerial)) (E580/E880: CND/T58) 3 1-838-669-11 CORD, CONNECTION (Video cord) (E380/E580/ E880: CND, AEP, UK, AUS, EA, SP, TW/T58) 4 1-489-438-11 REMOTE COMMANDER (RM-ADP057) (E580/E880: MX/T58) 4 1-489-439-11 REMOTE COMMANDER (RM-ADP060) (E880: AEP, UK, AUS) 4 1-489-440-11 REMOTE COMMANDER (RM-ADP059) (E880: CND) 4 1-489-441-11 REMOTE COMMANDER (RM-ADP058) (E380/E880: EA, SP, TW, IND) 5 1-542-830-11 MEASUREMENT MIC (MONO) (Calibration mic: ECM-AC2) 6 1-838-282-11 CABLE, HDMI (1.5 m) (High Speed HDMI cable) (E380: SP, TW, TH/E880: EA, MX, SP, TW, IND/T58) 7 A-1797-336-A OVERALL ASSY (Dock for iPod/iPhone: TDM-iP30) (E380: AEP, IT, UK, SP, TH/E580/ E880: CND, AEP, UK, AUS, SP/T58) 8 1-835-329-21 CORD, CONNECTION (USB5P) (USB cable) (E380: AEP, IT, UK, SP, TH/E580/ E880: CND, AEP, UK, AUS, SP/T58) 9 4-267-164-01 COVER (TB-EH) (Speaker-bottom cover) (1 piece) (E880) 10 A-1801-578-A STAND BASE ASSY (TB-EH) (Base) (1 piece) (E880) 11 4-162-924-11 FOOT (ST) (1 piece) (E880) 12 A-1801-572-A STAND ASSY (TB) (Lower parts of the front speaker) (1 piece) (E880) 13 7-682-973-31 SCREW +PSW 5X14 (Screw: silver) (1 piece) (E880) 14 7-682-574-09 SCREW +B 5X8 (Screw: black) (1 piece) (E880) - Abbreviation AUS : Australian model CND : Canadian model EA : Saudi Arabia model IND : Indian model IT : Italian model MX : Mexican model SP : Singapore model TH : Thai model TW : Taiwan model 4 Remote commander (remote) (1) 7 Dock for iPod/iPhone (TDM-iP30) (1) (E380: AEP, Italian, UK, Singapore, Thai/E580/E880: Canadian, AEP, UK, Australian, Singapore/T58) 9 Speaker-bottom covers (2) (BDV-E880 only) 12 Lower parts of the front speakers (2) (BDV-E880 only) 10 Bases (2) (BDV-E880 only) 13 Screws (silver) (2) (BDV-E880 only) 14 Screws (black) (6) (BDV-E880 only) 8 USB cable (1) (E380: AEP, Italian, UK, Singapore, Thai/ E580/E880: Canadian, AEP, UK, Australian, Singapore/T58) 6 High Speed HDMI cable (1) (E380: Singapore, Taiwan, Thai/ E880: Saudi Arabia, Mexican, Singapore, Taiwan, Indian/T58) 5 Calibration mic (1) 3 Video cord (1) (E380/E580/E880: Canadian, AEP, UK, Australian, Saudi Arabia, Singapore, Taiwan/T58) 1 Speaker cords (5, red/white/ green/gray/blue) 2 FM wire antenna (aerial) (1) 11 11 or Ve r. 1 . 1
