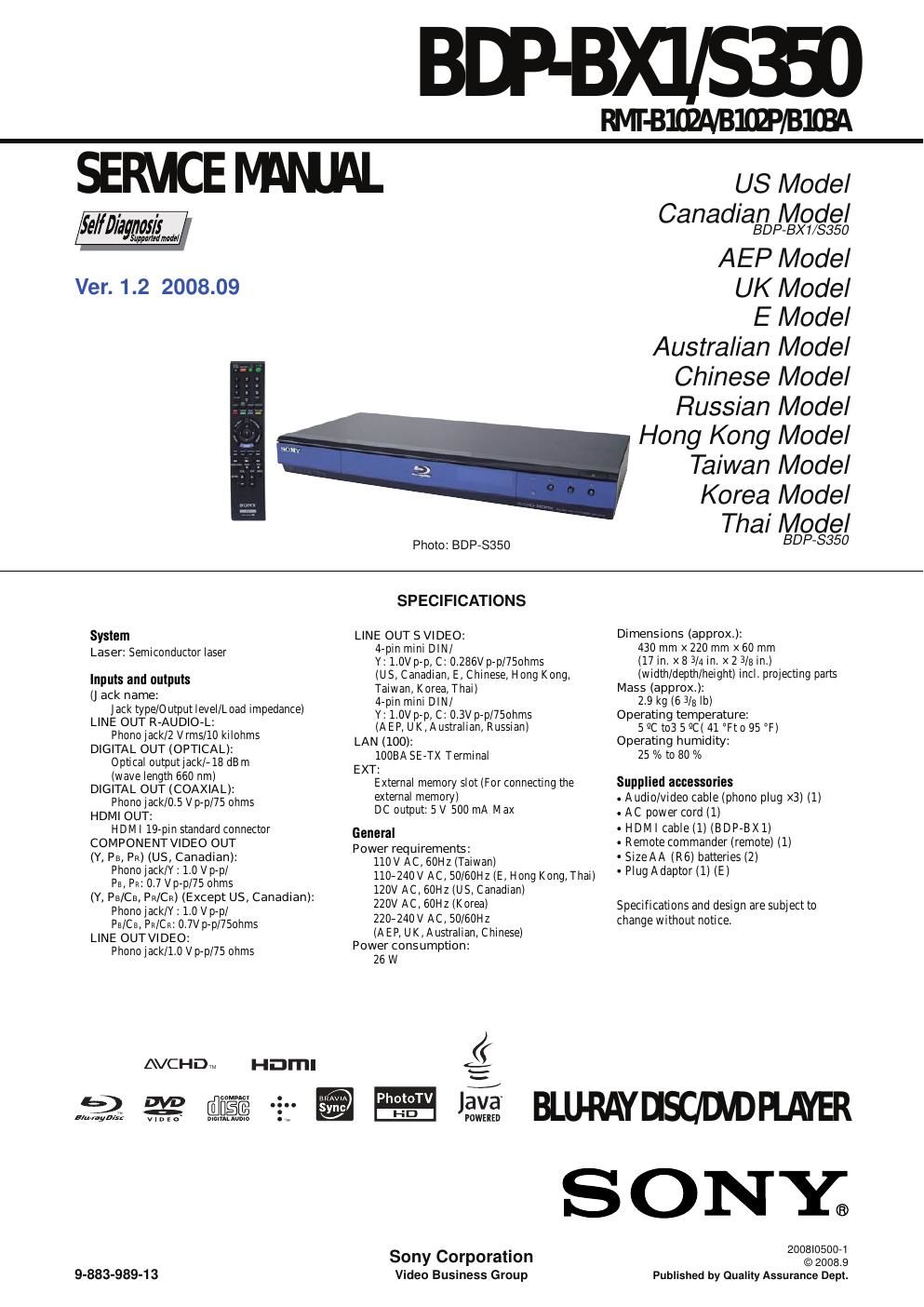

Page 1

BIT-3W

SERIACE M-IllIII-IL

fella/igmm

Ver. 1.2 2008.09

I-

Photo: EDP-8350

mow/310mm

US Model
Canadian Model

BDP-BX 1/8350

AEP Model

UK Model

E Model
Australian Model
Chinese Model
Flussian Model
Hong Kong Model
Taiwan Model
Korea Model

Thai Model

EDP-8350

System
Laser: Semiconductor laser

Inputs and outputs
(J ack name:
lack type/0 utput level/L oad impedance)
LINE OUT R-AUDIO»L:
Phono jack/2 Vrms/lO kilohms
DIG|TAL OUT (OPTICAL):
Optical outputjackl-la dBm
(wave length 660 nm)
DIG|TAL OUT (COAXIAL):
Phono jack/0.5 Vp-p/75 ohms
HDMI OUT:
H DMl 19-pin standard connector
COMPONENTVIDEO OUT
(Y, Pa, PR) (US, Canadian):
Phono jack/Y : 1.0 V p-pl
Pa, FR: 0.7 Vp-p/75 ohms
(Y, Pia/Ca, PR/CR) (Except US, Canadian):
Phonojack/Y:1.0 Vp-pl
Pa/Ca, Pix/Ca: 0.7V p»pl750hms
LINE OUTVIDEO:
Phono jack/1.0 Vp-p/75 ohms

AVCHDW

9 M iflfigfi

IIa-/agfli§( V . D E o- nlsinlwnlo

HEIITII

9-883-989-13

SPECIFICATIONS

LINE OUT 5 VIDEO:
11-pin mini DIN/
Y: 1.0V p-p, C: 0.286V p»p/750hms
(US, Canadian, E, Chinese, Hong Kong,
Taiwan, Korea, Thai)
4-pin mini DIN/
Y: 1.0V p-p, C: 0.3V p-p/7Sohms
(A EP, U K,A ustralian, Russian)
LAN (100):
1003A SE-TX Terminal
EXT:
External memory slot (For connecting the
external memory)
DC output: 5 V 500 mA Max

General
Power requirements:
110V AC, 60H2 (Taiwan)
110-240V AC, 50/6OH2 (E, Hong Kong,Thai)
120V AC, 60Hz (US, Canadian)
220V AC, 60Hz (Korea)
220-240V AC, 50/60Hz
(A EP, U K , Australian, Chinese)
Power consumption:
26 W

4

PhotoTV ava
JPOWERED

Dimensions (approx.):

430 mm x 220 mm x 60 mm

(17 in. x 8 3/4 in. X 2 3/3 in.)

(Width/depth/height) incl. projecting parts
Mass (approx.):

2.9 kg (6 3/5 lb)
Operating temperature:

59C to3 59C( 41 Fto 95 F)
Operating humidity:

25 % to 80 %

Supplied accessories

. Audio/video cable(phono plug x3) (1)
- AC power cord (1)

- H DMI cable (1) (BDP-BXl)

- Remote commander (remote) (1)

- SizeAA (R6) batteries(2)

- PlugAdaptor(1) (E)

Specifications and design are subject to
change without notice.

BLU-RNUSC/DDPINER

SONY.)

Sony Corporation
Video Business Group

2008I050071
© 2008.9
Published by Quality Assurance Dept.

Page 2

BDP-BX1/S350

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes
and bridges.

2. Check the interboard wiring to ensure that no wires are pinched
or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to
the customer and recommend their replacement.

4. Look for parts which, though functioning, show obvious signs
of deterioration. Point them out to the customer and recommend
their replacement.

5. Check the line cord for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.

6. Check the 13+ voltage to see it is at the values specified.

7. Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal pans for AC leakage. Check
leakage as described below.

To Exposed Metal

Parts on 89!
A0
0.15 uF g 1.5 kg / voltmeter
(a. 75 V)

-T- Earth Ground

Fig. A. Using an AC voltmeter to check AC leakage.

WARNINGII
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 25 cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UNE MARoUE A
SUR LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE DE
FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS
QUE PAR DES PIECES SONY DONT LES NUMEROS SONT
DONNES DANS CE MANUEL 0U DANS LES SUPPLE-
MENTS PUBLIES PAR SONY.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microamperes).

Leakage current can be measured by any one of three methods.

I. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers' instructions to use these
instruments.

2. A batteryioperated AC milliammeter. The Data Precision 245
digital multimeter is suitable for th' \ job.

3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH~63Trd are examples
ofa passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)

CAUTION:
The use of optical instrument with this product will increase eye
hazard.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radia-
tion exposure.

m mum

CLASS 1 LASER PRODUCT
LASER KLASSE I
LUOKAN I LASEFILAlTE

KLASSI LASERAPPARAT

1 fiéfififfil

. Thisaopllanceis classified asa
5% "W" W . CLASS 1 LASER product The
CLASS 1 LASER PRODUCT

M ARKING is located on the laser
protective housing inside the
enclosure.

(ExcethS, Canadian, El

This label is located on the laser
protective housing inside the
enclosure

Unleaded solder

Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)

LEAD FREE MARK

Unleaded solder has the following characteristics.

' Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solderjoint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip ' applied for too long, so be careful!

' Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.

' Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
