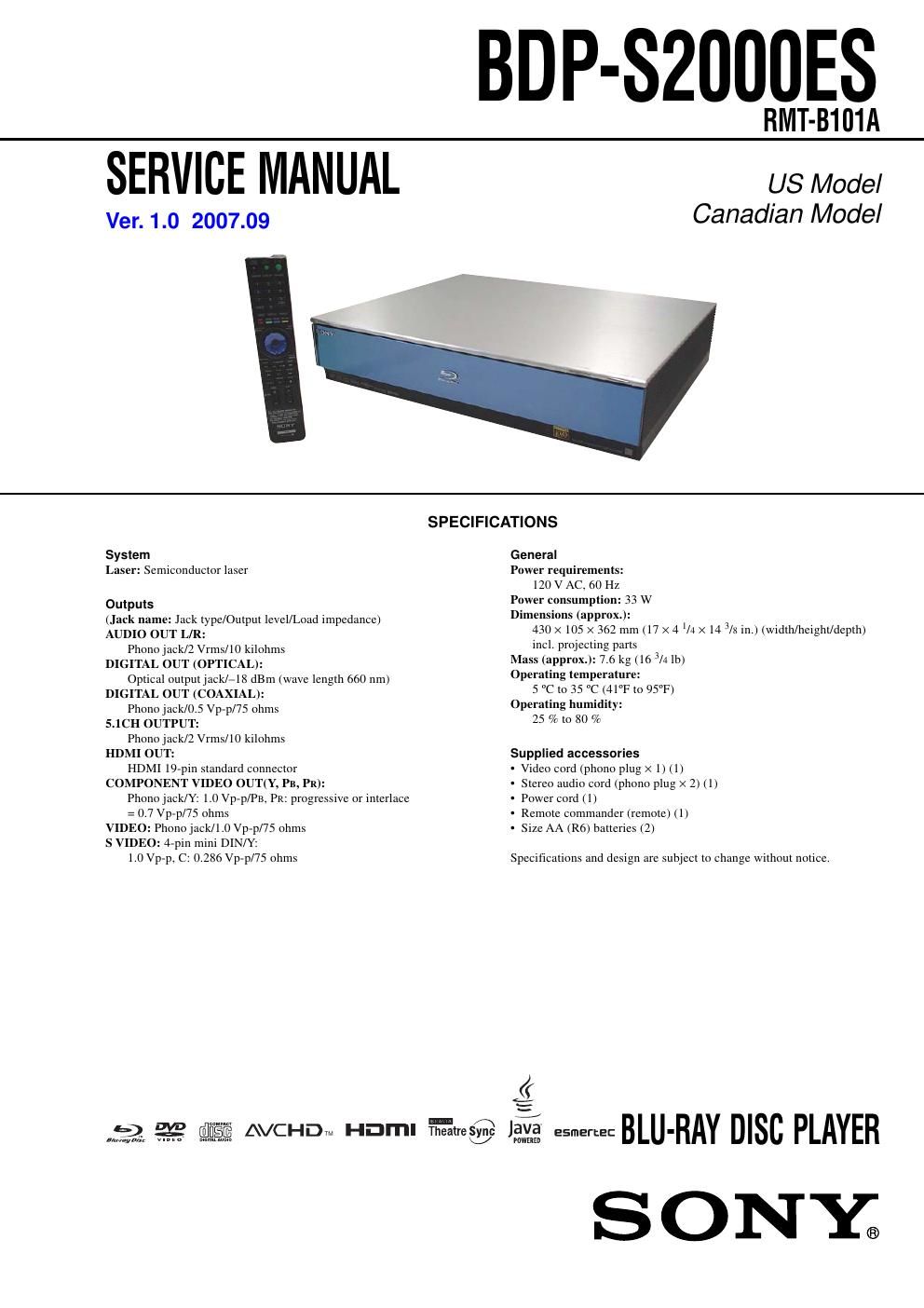

Sony bdp s 2000 es service manual
This is the 5 pages manual for sony bdp s 2000 es service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony bdp s 2000 es service manual (Ocr-read)
Page 1
– 2 – 1. DISK REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION) SERVICE NOTE 2side panel (L) assy 4side panel (R) assy 1 two screws (BV3) 3two screws (BV3) 5 flexible flat cable 6flexible flat cable 7three screws (BV3) 9 five screws (BV3) 8three screws (BV3) 0 top panel block assy qatwo screws (P3 × 3) qs front display block assy qatwo screws (P3 × 3) qdInsert the clip. qf Open the tray.
Page 2
– 3 – ACCESSORIES & PACKING MATERIALS ******************************** 1-479-848-31 REMOTE COMMANDER (RMT-B101A) 1-776-263-22 CORD, CONNECTION 0 1-834-381-21 CORD, POWER 3-270-912-11 MANUAL, INSTRUCTION (ENGLISH) 3-270-912-21 MANUAL, INSTRUCTION (FRENCH) Ref. No. Part No. Description Remarks REPAIR PARTS LIST The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
