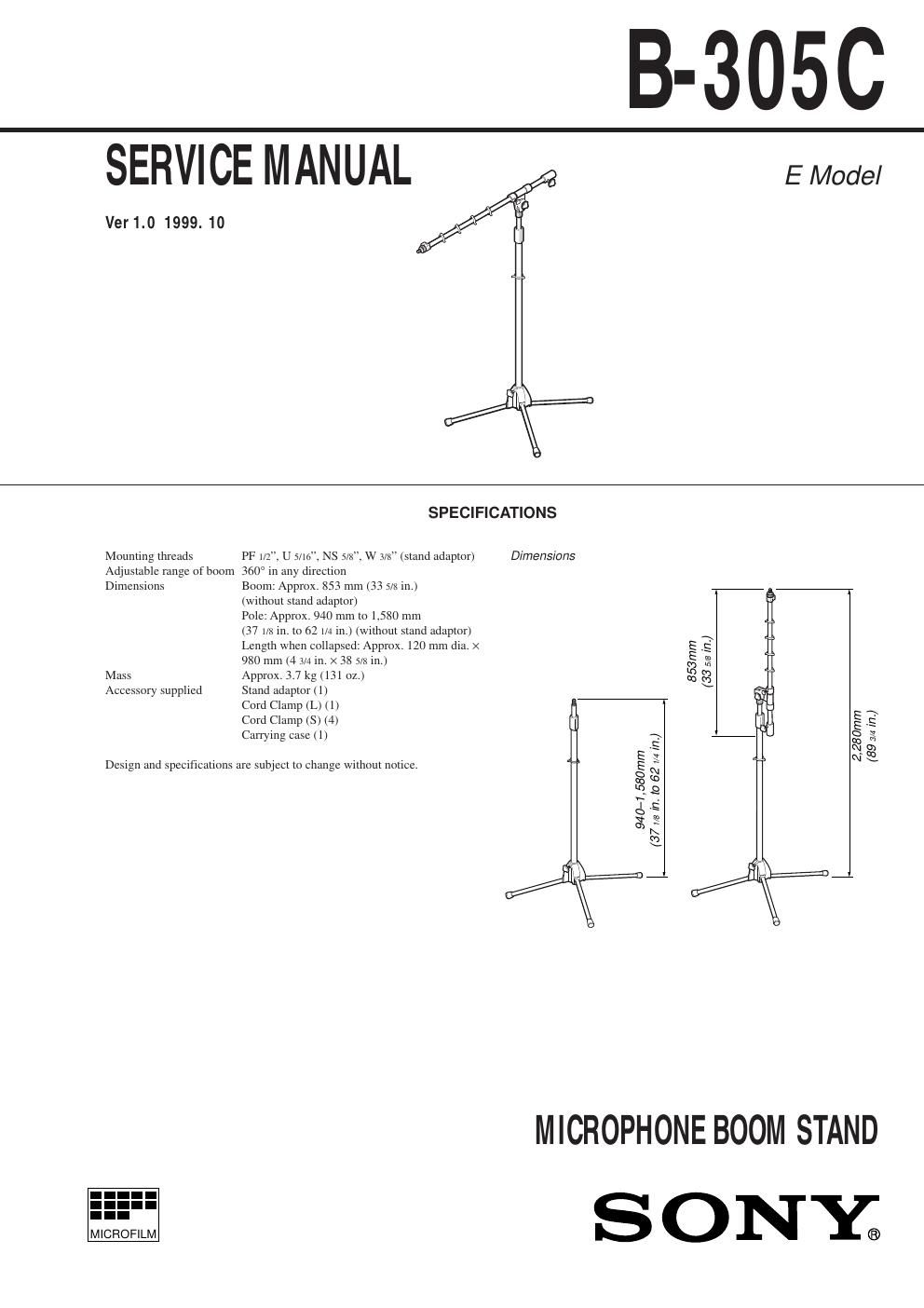

Sony b 305 c service manual

Page 1

Ð 2 Ð Sony Corporation Personal Audio Company 9-927-192-11 99J0423-1D Printed in Japan ©1999. 10 Published by General Engineering Dept. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥ EXPLODED VIEW & PARTS LIST 12 3 4 5 6 7 8 9 10 1 11 18 17 16 12 20 19 1314 15 21 21 23 24 22 not supplied not suppliednot supplied *1 2-545-899-01 KNOB (M8 BOLT), FASTENING *2 2-545-898-01 NUT, M8 BUSHING *3 2-545-894-01 NUT, NYLON *4 2-545-893-01 BOLT, 6 SQUARE HOLE *5 2-545-864-01 COLLAR, FASTENING *6 2-545-865-01 CONVERSION (ADAPTOR), SCREW *7 2-545-860-01 NUT, LOCK *8 2-545-907-01 PIPE, BOOM *9 2-545-928-01 BOLT (BOOM BASE) *10 2-545-908-01 PIN, SPRING *11 2-545-915-01 CHIP (M8) *12 2-545-931-01 KNOB (NUT), FASTENING *13 2-545-912-01 NUT (M6), BUSHING *14 2-545-913-01 KNOB (M6 BOLT), FASTENING *15 2-545-904-01 NUT, LOCK*16 X-2542-195-1 BASE ASSY, BOOM *17 2-545-909-01 BOOM (MAIN) *18 2-545-910-01 PLATE, FRICTION *19 2-545-927-01 PLATE, PRESSURE *20 2-545-914-01 SPACER, FLAT ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 21 2-545-869-01 HOOK (SMALL), CORD 22 2-545-870-01 HOOK (LARGE), CORD 23 2-545-918-01 SCREW CONVERSION (STAND ADAPTOR) *24 2-540-716-01 BAG, RECEIVE 3-867-988-01 MANUAL, INSTRUCTION (JAPANESE,ENGLISH, FRENCH)
