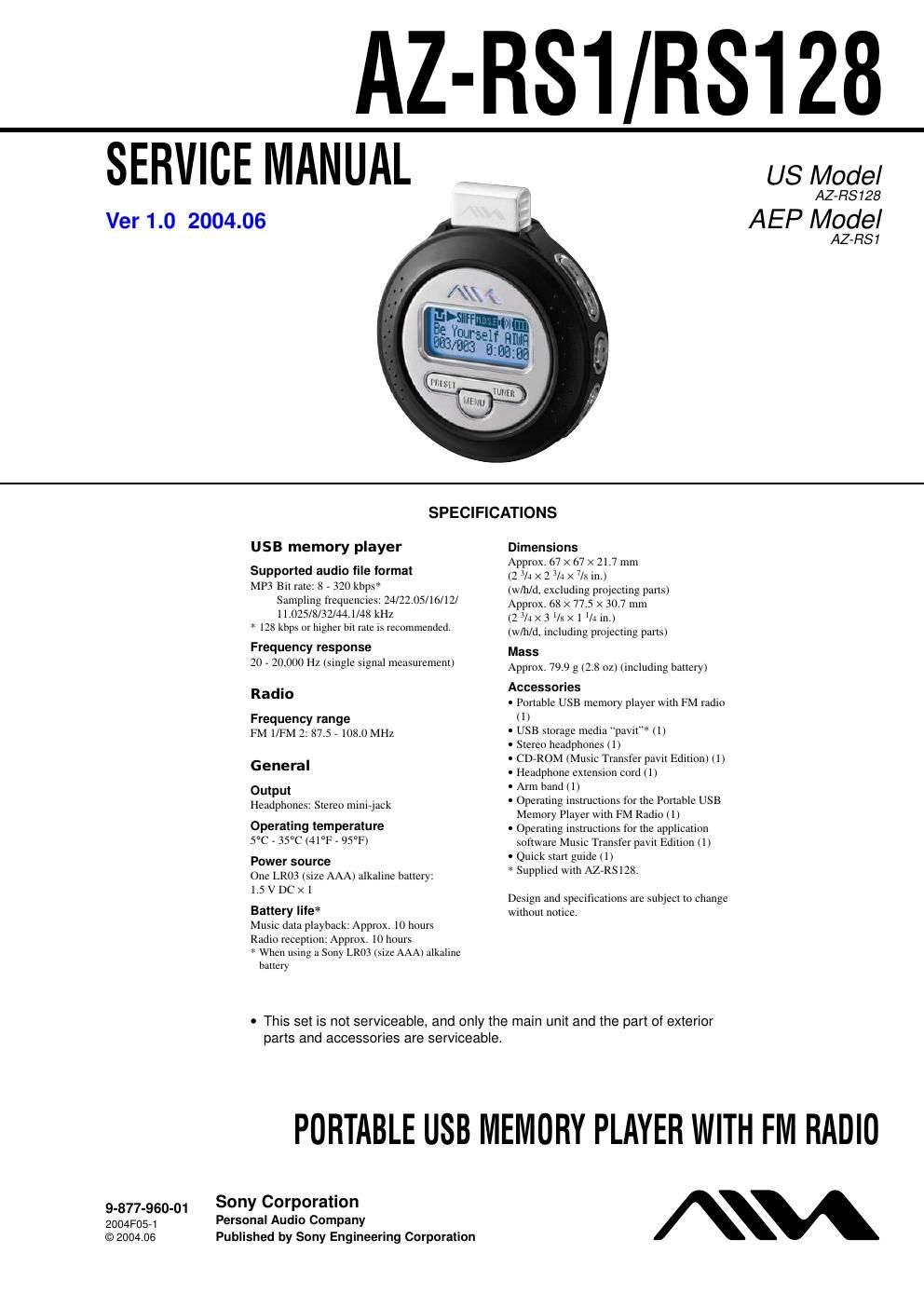

Page 1
2 AZ-RS1/RS128 This section is extracted from instruction manual. GENERAL Locating controls 1Display2ÒpavitÓ slot3./> (SKIP/DOWN/UP) buttons4Nx* (PLAY/STOP)/POWER button5VOL (volume) Ð/+* buttons6PRESET button7MENU button8i (headphones) jack9TUNER* button Player (front/side) Player (rear) PRESET TUNER MENU 2345 1 8 67 9 VOL POWERDOWNTUNEUP HOLD BEEPOFF REP1SHUFOFF M.D.S.EON ONOFF 0qa qs qd 0HOLD/BEEP switchqaREP1 (repeat 1)/SHUF (shuffle) switchqsM.D.S.E (MP3 Digital Sound Enhancer) switch qdClip *The button has a tactile dot. Display 86 7 23 4 5 1 1ÒpavitÓ insertion indicator : The ÒpavitÓ is inserted in the player correctly. : The ÒpavitÓ is not inserted in the player. 2Operation status indication Displays the icon for music data playback, radio, stopwatch or countdown timer. 3Play mode indication : Playing all tracks in random order: Playing a track repeatedly Ò Ó is displayed in the radio preset mode. 4M.D.S.E indication Displayed only during music data playback. Ò Ó is displayed in the radio preset mode. 5Volume indication Roughly shows the current volume level. 6Battery level indication Roughly shows the remaining power of the battery. If Ò Óflashes, the battery is depleted. 7Character information display Displays the title, file name of music data, etc. During radio reception, displays the band and frequency. 8Track number/elapsed playing time indication Displays the preset numbers in the radio preset mode.
Page 2
3 AZ-RS1/RS128 PARTS LIST Ref. No. Part No. Description Remark 1X-2021-663-1 MAIN ASSY (SERVICE) (U) (AZ-RS128) 1X-2021-665-1 MAIN ASSY (SERVICE) (CE7) (AZ-RS1) 2X-4956-374-1 SUB PANEL BACK ASSY 33-252-824-11 SCREW (1.4) 4not supplied MEMORY, USB AZ-RM128 (AZ-RS128 only) 51-542-548-42 HEADPHONE (HP-M133) (AZ-RS128) 51-542-580-11 HEADPHONE (HP-M006) (AZ-RS1) 64-252-295-01 CD-ROM (Music Transfer pavit Edition) 74-254-561-01 LID BATTERY 1-824-856-13 CORD, CONNECTION (HEADPHONE EXTENSION CORD) 4-254-134-01 BELT (ARM) 4-253-596-11 MANUAL INSTRUCTION (M-T) (Music Transfer pavit Edition) (ENGLISH) 4-253-596-21 MANUAL INSTRUCTION (M-T) (Music Transfer pavit Edition) (FRENCH, SPANISH, PORTUGUESE) (AZ-RS1) 4-253-596-31 MANUAL INSTRUCTION (M-T) (Music Transfer pavit Edition) (GERMAN, DUTCH, ITALIAN) (AZ-RS1) 4-254-568-11 MANUAL, INSTRUCTION (ENGLISH) (AZ-RS128) 4-254-568-21 MANUAL, INSTRUCTION (FRENCH, SPANISH) (AZ-RS1) 4-254-568-31 MANUAL, INSTRUCTION (GERMAN, DUTCH, ITALIAN) (AZ-RS1) 4-254-568-41 MANUAL, INSTRUCTION (ENGLISH) (AZ-RS1) Portable USB memory player with FM radio (1) 4 USB storage media pavit* (1) (not supplied) 6 CD-ROM (Music Transfer pavit Edition) (1) 5 Stereo headphones (1)* Supplied with AZ-RS128. 1 3 2 7 Notes: -In the MAIN ASSY (SERVICE), the Serial Number Label and the Model Number Label are packed together. If the MAIN ASSY (SERVICE) was replaced, attach the packed Serial Number Label and Model Number Label to the main unit after replacement in the same positions as the Serial Number Label and the Model Number Label attached to the product to be repaired. -For the Model Number Label packed together in the MAIN ASSY (SERVICE), use the label having the part number 2-186-785-01 (for AZ- RS1) or 2-186-784-01 (for AZ-RS128).
