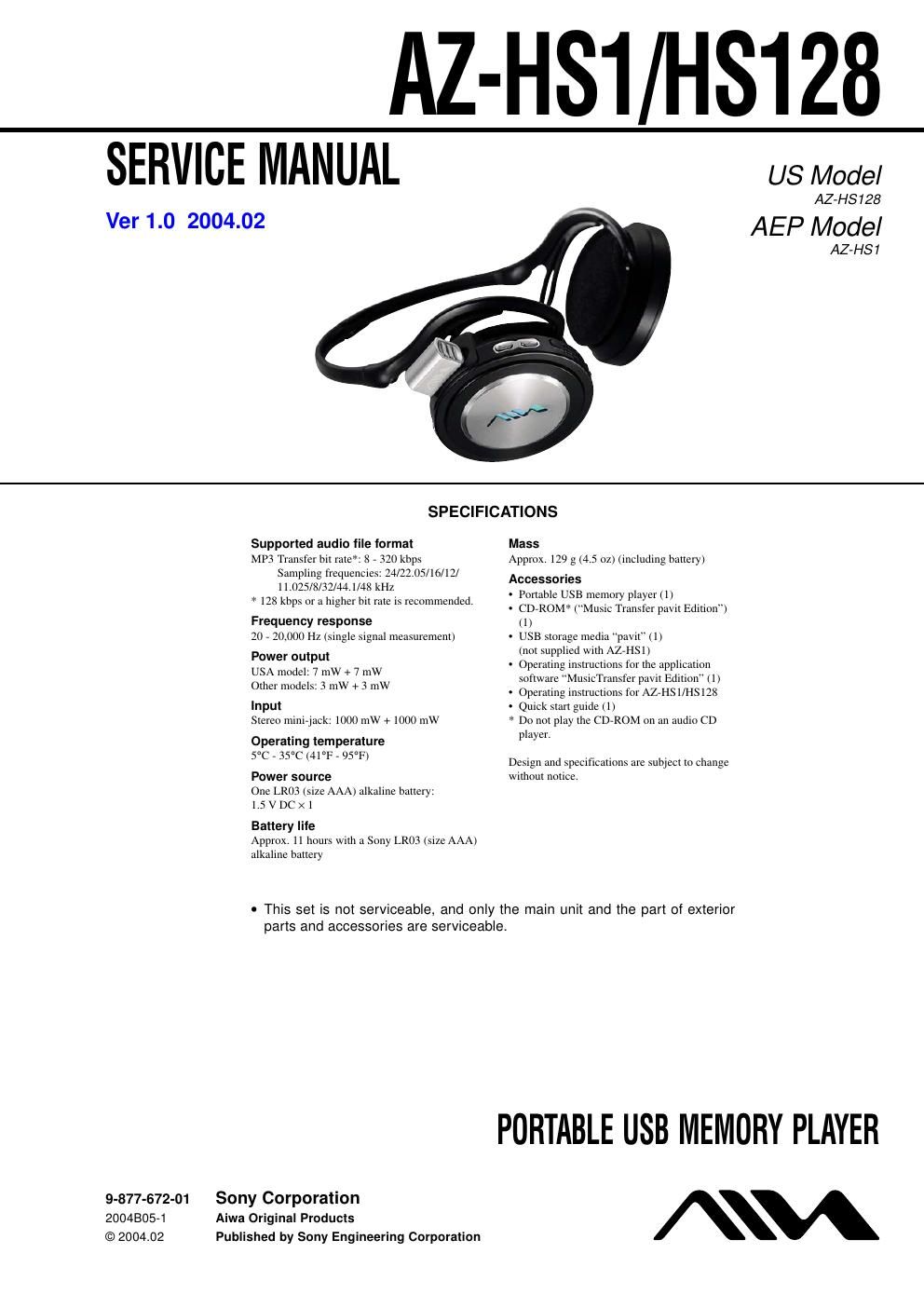

Sony az hs 1 service manual

Page 2

3 AZ-HS1/HS128 Ref. No. Part No. Description Remark 1X-4956-452-1 MAIN ASSY 2A-4714-928-A LID ASSY, BATTERY CASE 34-994-324-01 PAD, EAR 44-252-295-01 CD-ROM (Music Transfer pavit Edition) 4-253-596-11 MANUAL INSTRUCTION (M-T) (Music Transfer pavit Edition) (ENGLISH) 4-253-596-21 MANUAL INSTRUCTION (M-T) (Music Transfer pavit Edition) (FRENCH, SPANISH, PORTUGUESE) (AZ-HS1) 4-253-596-31 MANUAL INSTRUCTION (M-T) (Music Transfer pavit Edition) (GERMAN, DUTCH, ITALIAN) (AZ-HS1) 4-254-119-11 MANUAL INSTRUCTION (ENGLISH) 4-254-119-21 MANUAL INSTRUCTION (FRENCH, SPANISH) (AZ-HS1) 4-254-119-31 MANUAL INSTRUCTION (GERMAN, DUTCH, ITALIAN) (AZ-HS1) PARTS LIST Portable USB memory player (1) 1 2 3 4 CD-ROM (Music Transfer pavit Edition) (1) Notes: -In the MAIN ASSY, the Serial Number Label and the Model Number Label are packed together. If the MAIN ASSY was replaced, attach the packed Serial Number Label and Model Number Label to the main unit after replacement in the same positions as the Serial Number Label and the Model Number Label attached to the product to be repaired. -For the Model Number Label packed together in the MAIN ASSY, use the label having the part number 4-254-614-01 (for AZ-HS1) or 4-254- 965-01 (for AZ-HS128).
