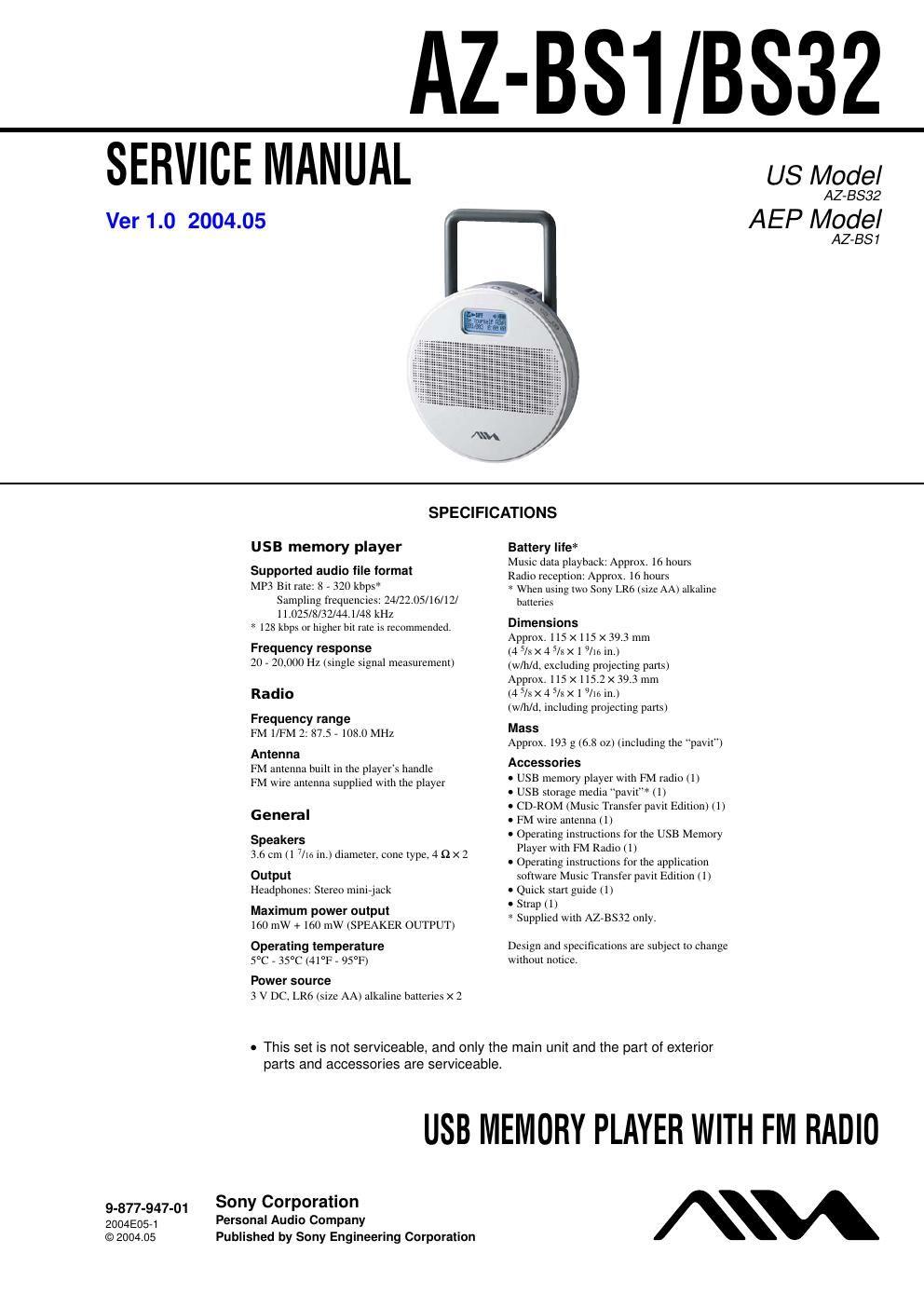

Sony az bs 32 service manual

This is the 4 pages manual for sony az bs 32 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
sony az bs 32 service manual

Extracted text from sony az bs 32 service manual (Ocr-read)


Page 1

2 AZ-BS1/BS32 Display 75 6 23 4 1 1ÒpavitÓ insertion indicator :The ÒpavitÓ is inserted in the player correctly. :The ÒpavitÓ is not inserted in the player. 2Operation status indication Displays the icon for music data playback, radio, stopwatch or countdown timer. 3Play mode indication : Playing all tracks in random order: Playing a track repeatedly Ò Ó is displayed in the radio preset mode. 4Volume indication Roughly shows the current volume level. 5Battery level indication Roughly shows the remaining power of the batteries. If Ò Ó flashes, the batteries are depleted. 6Character information display Displays the title, file name of music data, etc. During radio reception, displays the band and frequency. 7Track number/elapsed playing time indication Displays the preset numbers in the radio preset mode. Locating controls 1PLAY MODE switch (on the rear side)2EXT ANT socket for FM wire antenna (on the rear side) 3MENU button4PRESET button5TUNER button6Nx (PLAY/STOP)/POWER* button Player (front/top) 7ÒpavitÓ slot cover8./> (SKIP/DOWN/UP) buttons9VOLUME Ð/+* buttons0Displayqai (headphones) jack (on the lateral side) * The button has a tactile dot. 3678945 2 1 0 qa (rear)(side) This section is extracted from instruction manual. GENERAL

Page 2

3 AZ-BS1/BS32 PARTS LIST Ref. No. Part No. Description Remark 1X-2021-660-1 MAIN ASSY (SERVICE) (CE7) (AZ-BS1) 1X-2021-662-1 MAIN ASSY (SERVICE) (U) (AZ-BS32) 24-253-386-01 COVER (HP) 3A-4715-331-A LID BLOCK ASSY, BATTERY CASE 44-253-371-01 PAVIT LID 54-253-372-01 HOLDER (BATTERY CASE LID) 64-253-388-01 PACKING (PAVIT) 74-254-822-01 SHAFT (LID) 83-254-022-01 SCREW 9not supplied MEMORY, USB AZ-RM32 (AZ-BS32 only) 10 4-252-295-01 CD-ROM (Music Transfer pavit Edition) 11 X-2022-450-1 WIRE (ANTENNA) ASSY 4-253-596-11 MANUAL INSTRUCTION (M-T) (Music Transfer pavit Edition) (ENGLISH) 4-253-596-21 MANUAL INSTRUCTION (M-T) (Music Transfer pavit Edition) (FRENCH, SPANISH, PORTUGUESE) (AZ-BS1) 4-253-596-31 MANUAL INSTRUCTION (M-T) (Music Transfer pavit Edition) (GERMAN, DUTCH, ITALIAN) (AZ-BS1) 4-254-827-11 MANUAL, INSTRUCTION (ENGLISH) 4-254-827-21 MANUAL, INSTRUCTION (FRENCH, SPANISH) (AZ-BS1) 4-254-827-31 MANUAL, INSTRUCTION (GERMAN, DUTCH, ITALIAN) (AZ-BS1) 4-255-100-01 STRAP USB memory player with FM radio (1) 9 USB storage media pavit* (1) (not supplied) 10 CD-ROM (Music Transfer pavit Edition) (1) 11 FM wire antenna (1)* Supplied with AZ-BS32 only. 1 4 6 8 8 8 2 7 7 5 73 Notes: The part name in a figure has indicated the name currently used by instruction manual.
