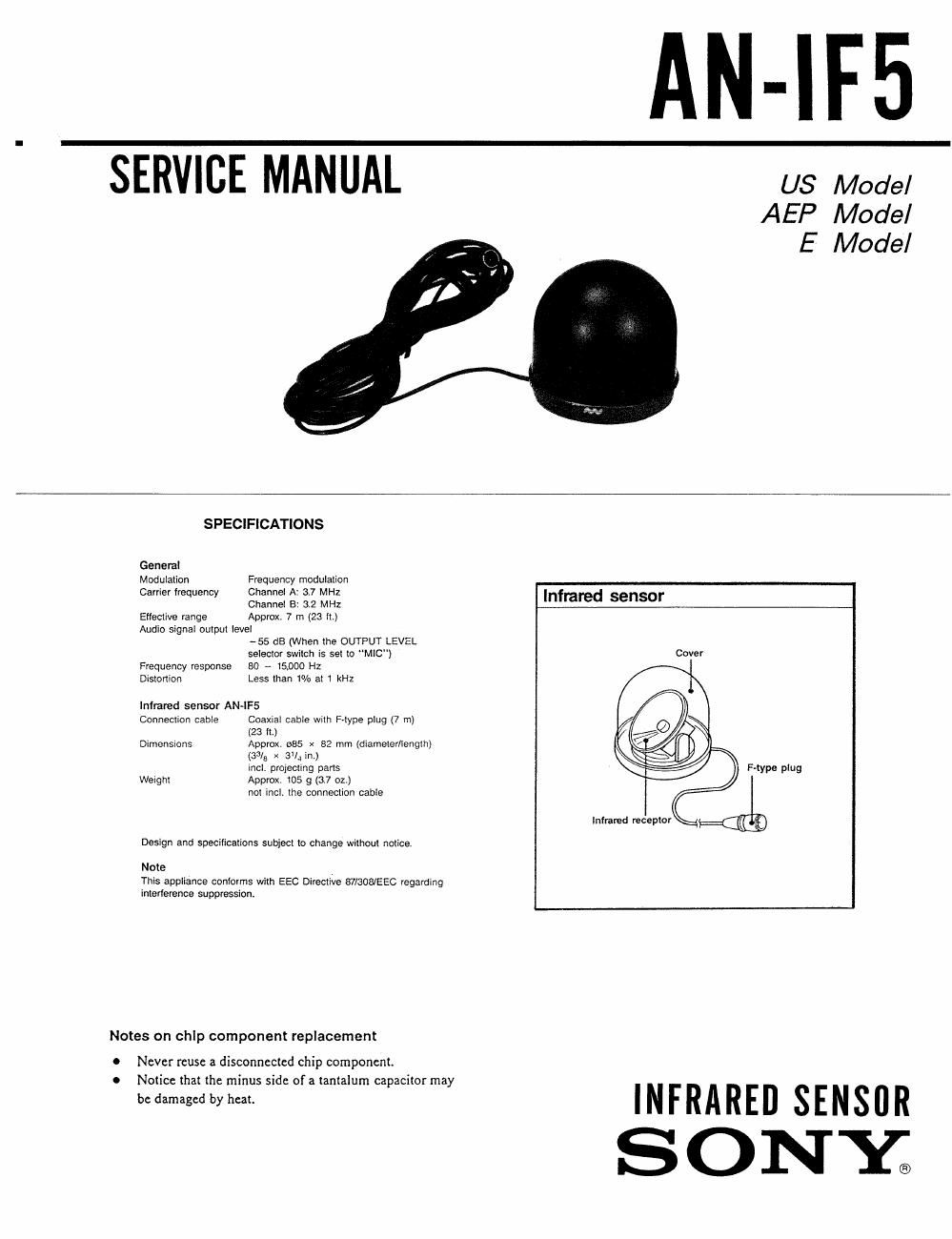

AN-IF5
SERVICE MANUAL
US Model
AEP Model
E Model
SPECIFICATIONS
General
Modulation Fyequency moduxation
Gamer Irequenm/ Channel A 3.7 MHZ
Channel 8: 3.2 MHZ
Eflecfive range Approx, 7 m (23 (L)
Audio signal output level
~55 dB (When the OUTPUT LEVEL
selector switch is ser (0 vs/m")
Frequency response so - 15.000 Hz
Drstonron Less than 1% at 1 kHz
Intranet! sensor AN-IFS
Connemion cable Coaxial came with F-lype plug (7 m)
(23 :1.)
Dimensions Approx 085 x 232 mm (diameler/length)
(33/5 x 31mm)
incl promoting pans
Wergm Approx 105 g (3.7 oz.)
not incl, the connection cable
Design and specifications subject Io change without notice.
Note
ThIs appliance conforms with EEC Dlreclive MEGS/EEC regarding
inIevterence suppression
Notes on chIp component replacement
0 Never reuse a disconnected chip component.
0 Notice that the minus side ofa tantalum capacitor may
be damaged by heat.
Infrared sensor
Cover
thype plug
Inlrared receptor
INFRARED SENSOR
SONY?
