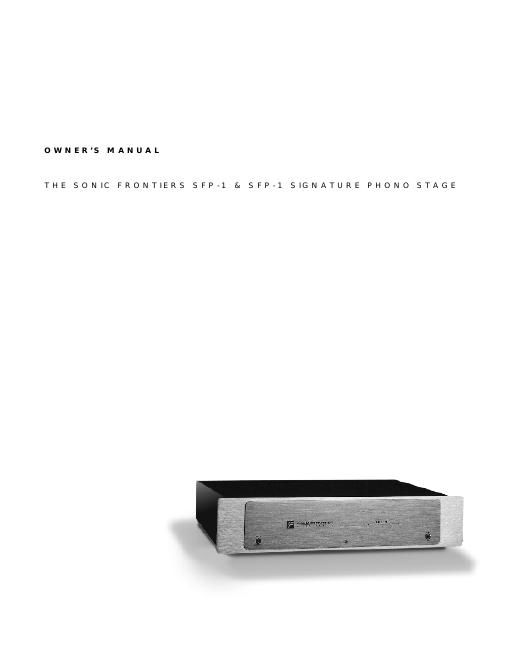

Sonic frontiers sfp 1 owners manual

Page 2

3 3D-Detachable Power Cord Socket - Plug the Detachable Power Cord into this socket (see Figure 1). The SFP-1 is factory set for the correct operating voltage for the area in which it is sold (see shipping box for voltage setting). If a different operat- ing voltage is required, please contact an authorized Sonic Frontiers dealer, distributor or the factory directly. E-AC Line Fuse - This is the AC fuse socket. It may be accessed with a small slot screwdriver by turning a 1/2 turn counterclockwise to unlock a spring that ejects the fuse holder out. The unit is factory installed with a fast-blo 1.5 Amp 250V (0.25 x 1.25) or 0.75 Amp 250V (0.25 x 1.25) for European and Asian versions. F-Left and Right Channel RCA Single-Ended Audio Output Connectors - The SFP-1s RCA single-ended audio outputs are to be connected to the RCA single-ended audio inputs of a line level preamplifier, control amplifier, integrated amplifier or receiver. Left channel output of the SFP-1connects to the left channel input of control unit and right channel output of the SFP-1 to the right channel input of control unit. G -Left and Right Channel RCA Single-Ended Phono Stage Input Connectors - These inputs accept a single- ended input connection from a turntables output connectors. The turntable equipped with a Moving Coil or Moving Magnet Cartridge (see operation section for proper setup) connects to the SFP-1. Left channel output to the left channel input of the SFP-1 and right channel output to the right channel input of the SFP-1. H-Ground Post - All turntable ground wires should be connect- ed to the SFP-1 ground post to prevent any hum from interfer- ing with the music signal.DGF Figure 1 - Align socket pins to corresponding holes and push together firmly.HE
