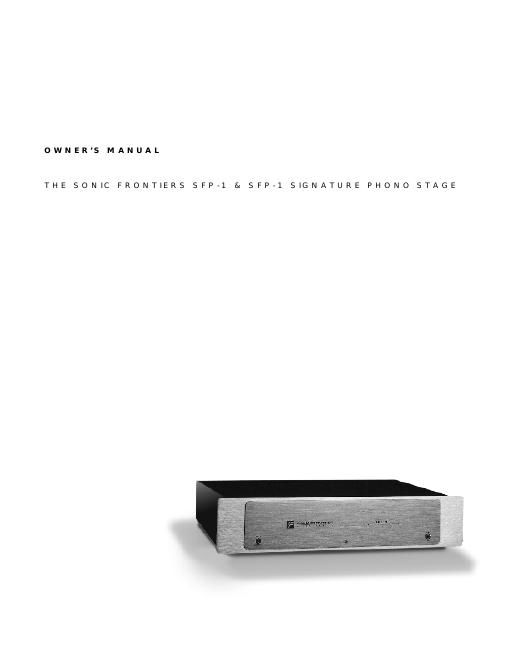

Sonic frontiers sfp 1 signature owners manual
This is the 8 pages manual for sonic frontiers sfp 1 signature owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sonic frontiers sfp 1 signature owners manual (Ocr-read)
Page 1
2CONTROL FU NCTIONS AND CONNECTIONSA-Mute/Operate Switch - In the mute position, this toggle switch cuts off the signal to the outputs (F) of the SFP--1 hence muting the unit; the LED (B) flashes as a reminder. In the operate mode, the outputs are connected and the SFP-1 operates normally. B-Power Indicator LED - This LED lights when the SFP-1 is on and receiving power from the AC source. It will flash at one second intervals during warmup delay and muting. C-Power Switch - This toggle switch, when in the ON posi- tion, allows the SFP-1 to receive power, rendering the SFP-1 operational as indicated by the Power Indicator LED (B). When the switch is in the OFF position the SFP-1 is not receiving power and is not operational.ABC
Page 2
3 3D-Detachable Power Cord Socket - Plug the Detachable Power Cord into this socket (see Figure 1). The SFP-1 is factory set for the correct operating voltage for the area in which it is sold (see shipping box for voltage setting). If a different operat- ing voltage is required, please contact an authorized Sonic Frontiers dealer, distributor or the factory directly. E-AC Line Fuse - This is the AC fuse socket. It may be accessed with a small slot screwdriver by turning a 1/2 turn counterclockwise to unlock a spring that ejects the fuse holder out. The unit is factory installed with a fast-blo 1.5 Amp 250V (0.25 x 1.25) or 0.75 Amp 250V (0.25 x 1.25) for European and Asian versions. F-Left and Right Channel RCA Single-Ended Audio Output Connectors - The SFP-1s RCA single-ended audio outputs are to be connected to the RCA single-ended audio inputs of a line level preamplifier, control amplifier, integrated amplifier or receiver. Left channel output of the SFP-1connects to the left channel input of control unit and right channel output of the SFP-1 to the right channel input of control unit. G -Left and Right Channel RCA Single-Ended Phono Stage Input Connectors - These inputs accept a single- ended input connection from a turntables output connectors. The turntable equipped with a Moving Coil or Moving Magnet Cartridge (see operation section for proper setup) connects to the SFP-1. Left channel output to the left channel input of the SFP-1 and right channel output to the right channel input of the SFP-1. H-Ground Post - All turntable ground wires should be connect- ed to the SFP-1 ground post to prevent any hum from interfer- ing with the music signal.DGF Figure 1 - Align socket pins to corresponding holes and push together firmly.HE
