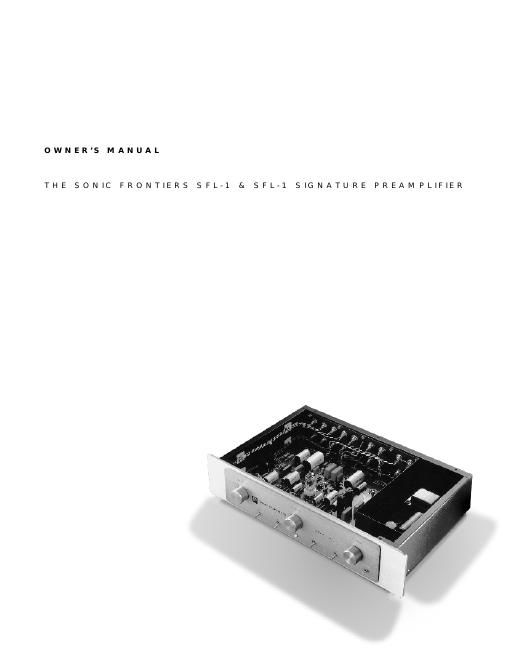

Sonic frontiers sfl 1 signature owners manual

Page 2

J -Detachable Power Cord Socket - Plug the Detachable Power Cord into this socket (see Figure 1). The SFL-1 is factory set for the correct operating voltage for the area in which it is sold (see shipping box for voltage setting). If a different operat- ing voltage is required, please contact an authorized Sonic Frontiers dealer, distributor or the factory directly. K -AC Line Fuse - This is the AC fuse socket. The fuse may be accessed with a small flat-bladed screwdriver by turning the fuse cap a 1/2 turn counterclockwise to unlock a spring that ejects the fuse holder out. The unit is factory installed with fast-blo .5 Amp 250V (0.25 x 1.25) for 100-120V use or .25 Amp 250V (0.25 x 1.25) for 200-240V use. L -Sets 1 & 2 of Left and Right RCAS i n g l e - E n d e d Main Outputs- These outputs should be used when con- necting to the single-ended RCA inputs on other units, such as a power amplifier or crossover unit; connect left channel to left channel and right channel to right channel. The two sets of out- puts allow for easier biamping and greater flexibility over a sin- gle set of output jacks when dealing with components such as electronic crossovers, powered subwoofers, etc.M-Left and Right RCA Single-Ended Tape Output - This output connects to the single-ended RCA input of a tape deck; left channel to left channel and right channel to right channel. These outputs are not operational when the Direct/Normal Switch (B) is in the DIRECT mode, or when the Tape/Source Switch (C) is in the TAPE mode. N-Left and Right RCA Single-Ended Tape Input - This input accepts a single-ended RCA input connection from a tape source; left channel to left channel and right channel to right channel. O-Left and Right RCA Single-Ended Direct Input - This input accepts a single-ended RCA input connection from a pre- ferred line level source to achieve the highest possible sonic perfor- mance, bypassing unnecessary control functions; left channel to left channel and right channel to right channel. This input is selected by placing the Direct/Normal Switch (B) in the DIRECT position.P -Left and Right RCA Single-Ended Auxiliary 2 Input - This input accepts a single-ended RCA input connection from any line level signal source; left channel to left channel and right channel to right channel. It is selected via the Source Selector Switch (A). Q-Left and Right RCA Single-Ended Auxiliary 1 Input - This input accepts a single-ended RCA input connection from any line level signal source; left channel to left channel and right channel to right channel. It is selected via the Source Selector Switch (A). R -Left and Right RCA Single-Ended Tuner Input - This input accepts a single-ended RCA connection from a tuner source; left channel to left channel and right channel to right channel. It is selected via the Source Selector Switch (A). S -Left and Right RCA Single-Ended CD Input - This input accepts a single-ended RCA connection from a Compact Disc Player or Digital-to-Analogue Converter; left channel to left channel and right channel to right channel. It is selected via the Source Selector Switch (A).
