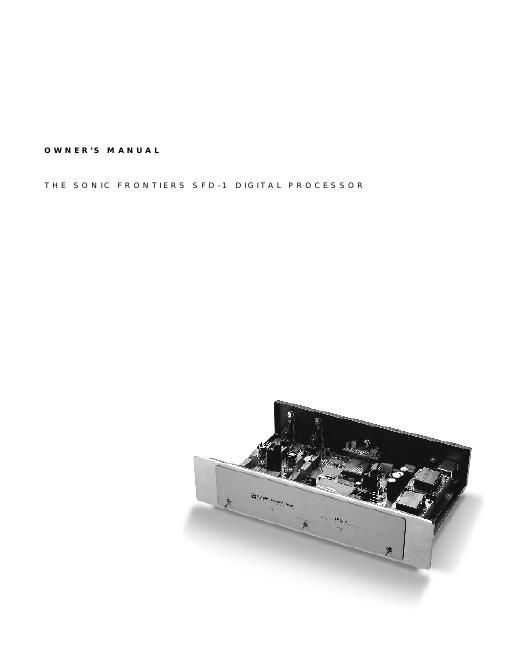

Sonic frontiers sfd 1 owners manual

Page 2

F -Detachable Power Cord Socket - Plug the Detachable Power Cord into this socket (see Figure 1). The SFD-1 is factory set for the correct operating voltage for the area in which it is sold (see shipping box for voltage setting). If a different operat- ing voltage is required, please contact an authorized Sonic Frontiers dealer, distributor or the factory directly. G -Toslink (Plastic Fibre) Optical Input - This input will accept a digital connection from a digital sources Toslink (Plastic Fibre) Optical digital output (see Figure 3). H -RCA Coaxial Cable Input - This input will accept a digital connection from a digital sources RCA - S/PDIF - Coaxial digital output (see Figure 3). The RCA - S/PDIF - Coaxial cable impedance should be 75 ohms. I -ST (Glass Fibre) Optical Input - This input will accept a digital connection from a digital sources ST (Glass Fibre) Opti- cal digital output (see Figure 3). This connection type is con- sidered best for optimum performance and sound quality; if your source unit has this type of digital output we recommend its use. J -Left and Right Channel Balanced XLR Audio Output Connectors - These are balanced audio outputs and should be used when connecting the SFD-1 to the balanced audio inputs of a line level preamplifier, control amplifier, integrated amplifier or receiver, if these units are so equipped (see Figure 4). (Left channel output of the SFD-1con- nects to the left channel input of control unit and right channel output of the SFD-1 to the right channel input of control unit.)K -Left and Right Channel RCA Single-Ended Audio Output Connectors - If the balanced inputs are not applic- FGHIJFigure 1 - Align socket pins to corresponding holes and push together firmly.
