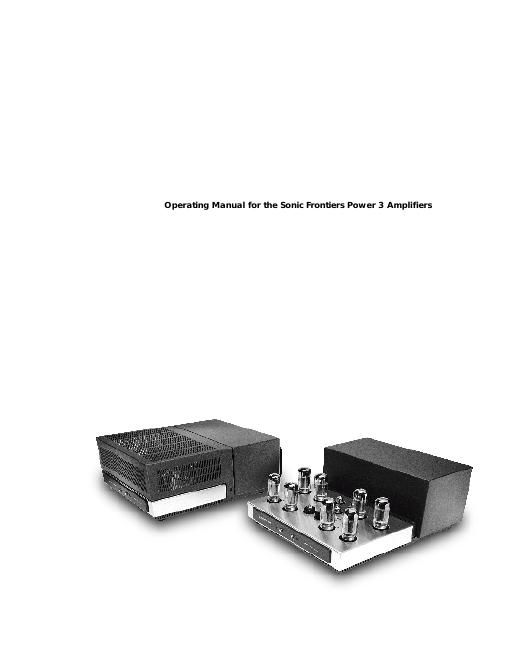

Operating Manual for the Sonic Frontiers Power 3 Amplifiers We at Sonic Frontiers hope you will derive many years of listening pleasure with your new Power 3 Amplifiers. This Operating Manual contains important information regard- ing the operation and care of these Amplifiers. Be sure to read this manual carefully and follow these instructions in order to keep them performing and sounding their best. Please contact Sonic Frontiers if you have any questions - a Customer Service Represen- tative will be pleased to assist you. Contents Unpacking.............................1 Quick Setup...................2 Reference Diagrams.................3 Installing the Tubes..................5 Biasing of the Power Tubes...................7 Controls, Functions and Connections...............8 Adjustment for Load Impedance.................10 Care and Maintenance....................12 Troubleshooting........................13 Warranty............................14 Specifications...........................15This s ymbol is intended t o aler t the user to the presence of uninsulated d a n g e rous voltage within the p ro d u c t s enclosure that may be of s u fficient magnitude to constit ute a risk of electr ic sh ock to persons. This symbol is intended to alert the user to t he presenc e of important operating and maintenance (serv i c i n g ) i n s t ructions in t he literature accompa- nying the appliance.Sonic Frontiers Inc. can be reached at: 2790 Brighton Road, Oakville, Ontario, Canada L6H 5T4 Tel: (905) 829-3838 Fax: (905) 829-3033 E-Mail: SFI@sonicfrontiers.com WWW: http://www.sonicfrontiers.com 10/96 SKU#56800
Page 2
Unpacking At this point we can assume that you have successfully opened the box flaps and found this manual. These boxes were designed to ensure the safe transport of the amplifiers, Sonic Frontiers strongly recommends the storage of these boxes in a safe, dry place. In the event that the amplifiers may have to be shipped in the future, the original boxes are the best means for the protection and safety of the Power 3s during transportation. You may want to enlist a friends help to remove the amplifiers from the boxes, the weight can make this awkward (hint: the back of the chassis is the heavy end). Here is a chart listing what you will find in the box: When unpacking the Power 3 Mono Amplifiers be sure to keep tubes grouped with the amplifier of the same box. If after your inspection of the contents there is a discrepancy, contact your dealer or Sonic Frontiers immediately. Tube Complement: Slot Screwdriver Phillips Screwdriver Biasing Tool Power Cord Pearl Tube Coolers (with O rings) Cotton Gloves Extra Fuse Amplifier Tube Cover Warranty Card Operating ManualPower 3 (per mono channel) 8-6550C or KT88 4-6922 2-5687 1 1 1 1 2 1 pair 2 1 1 1 11
