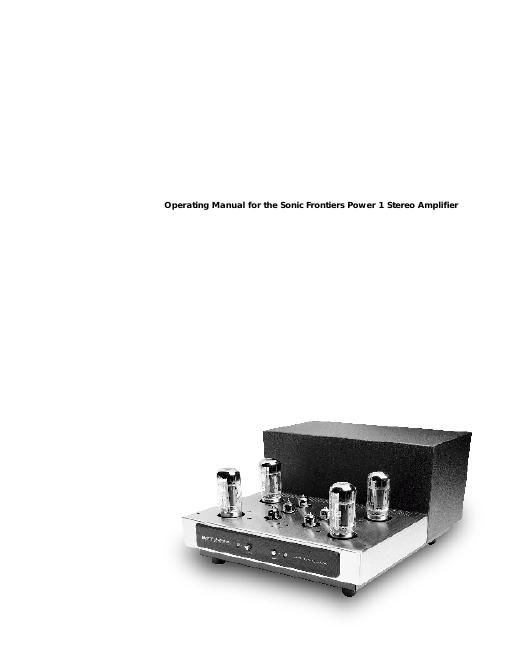

Operating Manual for the Sonic Frontiers Power 1 Stereo Amplifier We at Sonic Frontiers hope you will derive many years of listening pleasure from your new Power 1 Amplifier. This Operating Manual contains important information regard- ing the operation and care of this Amplifier. Be sure to read this manual carefully and follow these instructions in order to keep it performing and sounding its best. Please con- tact Sonic Frontiers if you have any questions - a Customer Service Representative will be pleased to assist you. Contents Unpacking.............................1 Quick Setup...................2 Reference Diagrams.................3 Installing the Tubes..................5 Controls, Functions and Connections..............7 Biasing of the Power Tubes..................9 Adjustment for Load Impedance.................10 Care and Maintenance.....................12 Troubleshooting.........................13 Warranty..............................14 Specifications...........................15This s ymbol is intended t o aler t the user to the presence of uninsulated d a n g e rous voltage within the p ro d u c t s enclosure that may be of s u fficient magnitude to constit ute a risk of electr ic sh ock to persons. This symbol is intended to alert the user to t he presenc e of important operating and maintenance (serv i c i n g ) i n s t ructions in t he literature accompa- nying the appliance.Sonic Frontiers Inc. can be reached at: 2790 Brighton Road, Oakville, Ontario, Canada L6H 5T4 Tel: (905) 829-3838 Fax: (905) 829-3033 E-Mail: SFI@sonicfrontiers.com WWW: http://www.sonicfrontiers.com 8/96 SKU#56606
Page 2
1 Unpacking At this point we can assume that you have successfully opened the box flaps and found this manual. The box was designed to ensure the safe transport of the amplifier. Sonic Frontiers strongly recommends the storage of the Power 1 box in a safe, dry place. In the event that the amplifier may have to be shipped in the future, the original box is the best means for the protection and safety of the Power 1 during transportation. You may want to enlist a friends help to remove the amplifier from the box as the distribution of the weight can make this awkward (hint: the back of the chassis is the heavy end). Here is a chart listing what you will find in the box: If after your inspection of the contents there is a discrepancy, contact your dealer or Sonic Frontiers immediately. Removing the Tube Cover To remove the cover, loosen and remove the 4 screws installed from the bottom, 2 per side. Lift the cover straight up and away from the tubes. To add the cover, simply place the cage over the tube top, replace and tighten the 4 large screws. Tube Complement: Slot Screwdriver Phillips Screwdriver Biasing Tool Power Cord Cotton Gloves Extra Fuse Amplifier Tube Cover Warranty Card Operating ManualPackaged Items 4-6550C or KT88 6-6922 1 1 1 1 1 pair 2 1 1 1 1
