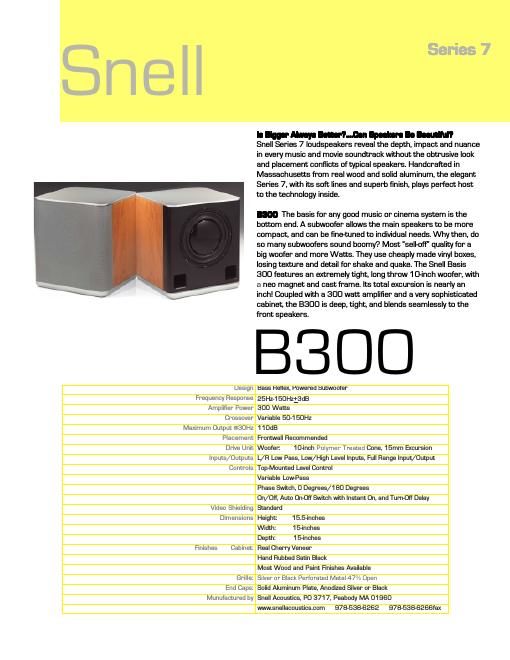

Snell basis 300 brochure

Page 1

Design

Frequency Response
Ampilfler Power
Crossover

Maximum Output CLSOHZ
Piacement

Drive Unit
inputs/Outputs
Controls

Video Shielding

Dimensions

Finishes Cabinet

Gri i i e
End Caps
Munufactured by

Is Bigger Always Better?....can Speakers Be Beautiful?

Snell Series 7 loudspeakers reveal the depth, impact and nuance
in every music and movie soundtrack without the obtrusive look
and placement conflicts of typical speakers. Handcrafted in
Massachusetts from real wood and solid aluminum, the elegant
Series 7, with its soft lines and superb finish, plays perfect host
to the technology inside

5300 The basis for any good music or cinema system is the
bottom end. A subwoofer allows the main speakers to be more
compact, and can be fine-tuned to individual needs. Why then, do
so many subwoofers sound boomy? Most sell-off quality for a
big woofer and more Watts. They use cheaply made vinyl boxes,
losing texture and detail for shake and quake The Snell Basis
300 features an extremely tight, long throw 10-inch woofer, with
a neo magnet and cast frame. Its total excursion is nearly an
inch! Coupled with a 300 watt amplifier and a very sophisticated
cabinet, the 8300 is deep, tight, and blends seamlessly to the
front speakers.

BSDD

Bass Reflex, Powered Subwoofer

25HZ150HZi3dB

300 Watts

Variable 507150Hz

I 10dB

Frontwall Recommended

Woofer: 107inch Polymer Treated Cone, 15mm Excursion
L/R Low Pass, Low/High Level Inputs, Full Flange Input/Output
ToprMounted Level Control

Variable LowVPass

Phase Switch, 0 Degrees/18E) Degrees

Un/fo, Auto DnOff Switch with Instant On, and Turanf Delay
Standard

Height: 15.57inches

Width: 157inches

Depth: IEinches

Real Cherry Veneer

Hand Rubbed Satin Black

Most Wood and Paint Finishes Available

Siiver or Black Perforated Metal 47% Open

Solid Aluminum Plate, Anodized Silver or Black

Snell Acoustics, PO 3717, Peabody MA 01960
www.5nellacoustics.com 87853876262 97875386283
