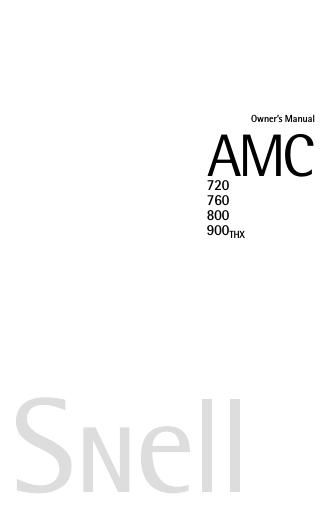

Snell amc 760 owners manual
This is the 12 pages manual for snell amc 760 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from snell amc 760 owners manual (Ocr-read)
Page 1
2 SPECIFICATIONS Frequency Response (±3dB) Recommended Amplifier Nominal Impedance Sensitivity (2.83v at 1m) Tweeter(s) Midrange Bass Driver Crossover Point Composite Baffle Grille Dimensions (HxWxD) Rough Opening Cutout (HxW) Finish* Weight *Custom paint and grilles are available for an extra charge AMC760 AMC760 62 Hz–20 kHz 10–150W 8 ohms 89dB SPL 1 aluminum dome, ferrofluid cooling and heatsink. Steerable Directed Power waveguide n/a 61/2-inch (165mm) copolymer with butyl rubber surround 2.7 khz Specialty adhesive between two 1/4 layers of HD fiberboard White cloth over MDF frame 17 x 10 1/2 x 3 3/4 inches (432 x 267 x 95mm) 15 7/8 x 9 3/8 inches (403 x 238mm) White trim, suitable for painting 23 lbs (10.5kg) / pair AMC720 65 Hz–20 kHz 10–125W 8 ohms 87dB SPL 1 aluminum dome, ferrofluid cooling and heatsink. Steerable Directed Power waveguide n/a 51/4-inch (132mm) copolymer with butyl rubber surround 2.7 khz Specialty adhesive between two 1/4 layers of HD fiberboard White cloth over MDF frame 14 x 8 1/2 x 3 3/4 inches (356 x 216 x 95mm) 12 7/8 x 7 3/8 inches (327 x 187mm) White trim, suitable for painting 21 lbs (9.5kg) / pair AMC720
Page 2
3 AMC800 65 Hz-20 kHz 10–200W 4 ohms 90dB SPL 1 Aluminum dome, ferrofluid cooling and heatsink. Steerable Directed Power waveguide n/a 61/2-inch (165mm) copolymer with butyl rubber surround 600 Hz, 3kHz 2 1/2 way Specialty adhesive between two 1/4 layers of HD fiberboard White cloth over MDF frame 23 1/4 x 13 1/4 x 3 3/4 inches (590 x 336 x 95mm) 22 x 12 inches (559 x 305mm) White trim, suitable for painting 22 lbs (10kg) each AMC900 THX 78 Hz-20 kHz 10–150W 6 ohms 87dB SPL (2) 1 aluminum dome, ferrofluid cooling and heatsink. Directed Power waveguide in dipole configuration 3 1/2 Midrange, edge-mounted in dipole configuration 6 1/2-inch (165mm) copolymer with butyl rubber surround 400 Hz, 2.5 kHz, 12dB/octave Specialty adhesive between two 1/4 layers of HD fiberboard White cloth over MDF frame 23 1/4 x 13 1/4 x 3 3/4 inches (590 x 336 x 95mm) 22 x 12 inches (559 x 305mm) White trim, suitable for painting 22 lbs (10kg) each AMC800 AMC900 THX
