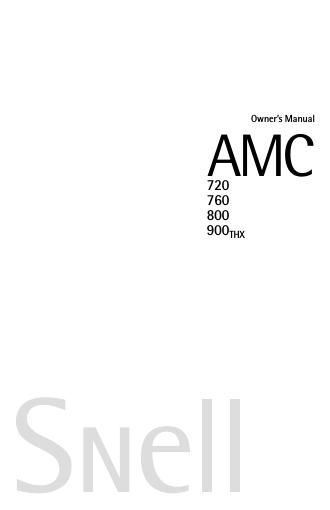

Snell amc 720 owners manual
This is the 12 pages manual for snell amc 720 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from snell amc 720 owners manual (Ocr-read)
Page 2
3 AMC800 65 Hz-20 kHz 10–200W 4 ohms 90dB SPL 1 Aluminum dome, ferrofluid cooling and heatsink. Steerable Directed Power waveguide n/a 61/2-inch (165mm) copolymer with butyl rubber surround 600 Hz, 3kHz 2 1/2 way Specialty adhesive between two 1/4 layers of HD fiberboard White cloth over MDF frame 23 1/4 x 13 1/4 x 3 3/4 inches (590 x 336 x 95mm) 22 x 12 inches (559 x 305mm) White trim, suitable for painting 22 lbs (10kg) each AMC900 THX 78 Hz-20 kHz 10–150W 6 ohms 87dB SPL (2) 1 aluminum dome, ferrofluid cooling and heatsink. Directed Power waveguide in dipole configuration 3 1/2 Midrange, edge-mounted in dipole configuration 6 1/2-inch (165mm) copolymer with butyl rubber surround 400 Hz, 2.5 kHz, 12dB/octave Specialty adhesive between two 1/4 layers of HD fiberboard White cloth over MDF frame 23 1/4 x 13 1/4 x 3 3/4 inches (590 x 336 x 95mm) 22 x 12 inches (559 x 305mm) White trim, suitable for painting 22 lbs (10kg) each AMC800 AMC900 THX
