Shure sr 109 service manual
This is the 37 pages manual for shure sr 109 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from shure sr 109 service manual (Ocr-read)

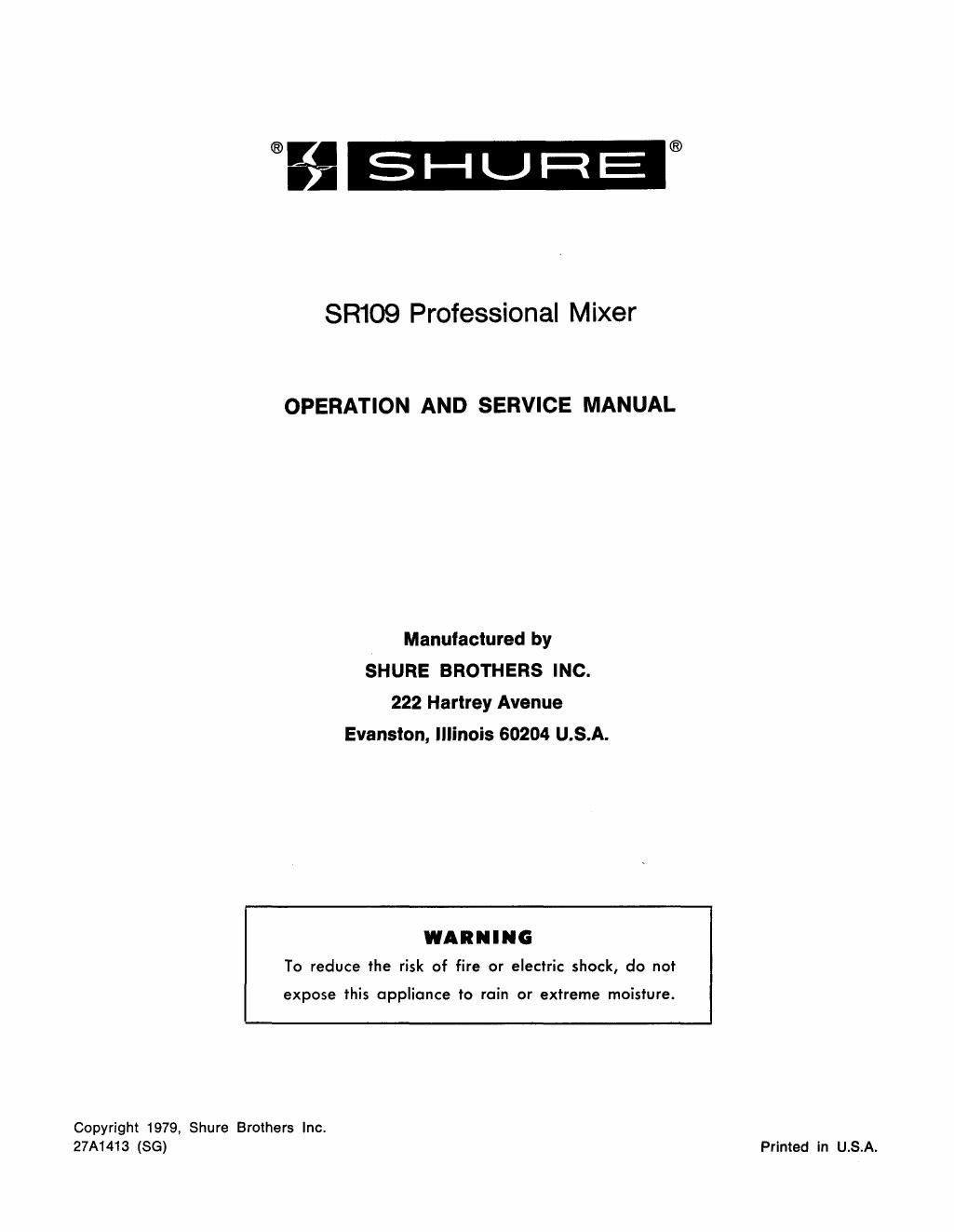

Page 1
SR109 Professional Mixer SPECIFICATIONS Equipment Type . . . . . . . All silicon transistor mixer/pre- amplifier Number of lnput Channels . . . . . . 8 Power Output . . . . . . . . . +19 dBm (program line level) Voltage Gain * Program . . . . . . .87 -13 dB MIC input to LlNE - LEVEL out 37 -+3 dB LlNE input to LlNE LEVEL out 37 -13 dB MIC input to MIC LEVEL out Headphones . . . .69 -13 dB MIC input to PHONES out Link . . . . .. . . . . .54.5 k3 dB MIC input to LlNK OUTPUT (with 600-ohm termi- nation) 27 k2 dB LlNK INPUT to LlNE LEVEL output Accessory . . . . . .59 t3 dB MIC input to ACCES- SORY output (via pins 1-8/IN- PUTS) 54.5 k3 dB MIC input to AC- CESSORY output (via pin 9/PROGRAM) (terminated with 600 ohms) Frequency Response . . . k3 dB, 20 Hz-20 kHz (150-ohm source; 600-ohm load) lnput Sensitivity . . . . . . .0.1 mV max. for +4 dBm program output Distortion . . . . . . . . . . . .THD less than 1% at +12 dBm, 30 Hz-20 kHz; IM distortion less than 1% at +12 dBm Noise (300 Hz-20 kHz) . . . . . - 128 dBV (equivalent input noise at full gain) -72.8 dBm output noise (MAS- TER Volume Control down) -38.8 dBm output noise (MAS- TER and one channel Volume Control up) Hum and Noise (20 Hz-20 kHz) . . . . . . - 125 dBV (equivalent input hum and noise at full gain) -61.8 dBm output noise (MAS- TER Volume Control down) -34.8 dBm output noise (MAS- TER and one channel Volume Control up) Signal to Noise (20 Hz-20 kHz) . . . . . .Typically 83 dB at maximum out- put with one channel Volume Control and MASTER Volume Control set at 8 (approximate- ly 58 dB gain) lnput Attenuation . . . . . . 0, 15 dB (switch-selected) lnput Clipping Level at 1 kHz: MIC lnput . . . . . . . . 100 mV (ATTENUATOR out; Ch. Volume at 2) 4.5 mV (ATTENUATOR out; Ch. Volume at 12) 0.56V (ATTENUATOR in; Ch. Volume at 2) 25 mV (ATTENUATOR in; Ch. Vol- ume at 12) LlNE lnput . . . . . . . .33V (ATTENUATOR out; Ch. Vol- ume at 2) 1.35V (ATTENUATOR out; Ch. Volume at 12) 90V (ATTENUATOR in; Ch. Vol- ume at 2) 8.OV (ATTENUATOR in; Ch. Vol- ume at 12) lnput Common Mode Rejection . . . . .I00 dB at 100 Hz Low-Frequency Equalization . . . . . . . . 213 dB at 100 Hz with respect to 0 (flat) setting High-Frequency Equalization . . . . . . . . 212 dB at 10 kHz with respect to 0 (flat) setting Tone Oscillator . . . . . . . . 1 kHz; less than 1% distortion; variable level lnput Impedance at 1 kHz: Microphone . . . .2.1 kilohms balanced (for use with 25- to 600-ohm microphones) Line (channels 7 and 8) . . . . . . . . . 66 kilohms balanced bridging Link lnput . . . . . .35 kilohms unbalanced Output Impedance: Program . . . . . . . Balanced line level: 120 ohms ac- tual (for use with 25- to 600- ohm inputs) Microphone level: 0.5 ohms ac- tual (for use with 25- to 600- ohm inputs) 'Measurement conditions: MIC input through 150 ohms, LINE input through 33 kilohms LINK INPUT through 600 ohms PROGRAM LlNE LEVEL terminated in 600 oh&, PROGRAM MIC LEVEL terrhinated in 150 ohms, PHONES termi- nated in 8 ohms: MASTER Volume, Channel Volume and PHONES Controls full up; all other controls and switches 0 or out.
Page 2
SR109 Professional Mixer SPECIFICATIONS Headphones ... .3.5 ohms actual (for use with 4- to 16-ohm headphones) Link .......... .600 ohms (actual) Accessory ...... Unbalanced aux level: 33 ohms actual (for use with 4K or higher loads) Limiter Threshold (adjustable) ..... .Typically -20 to +20 dBm (at LlNE LEVEL output) Range ............ .Approximately 30 dB Link Jack System ...... External signal conditioning out- put/input; high-level auxiliary amplifier and tape recorder sig- nal output; multiple Mixer con- nection (common mix); remote master volume control VU Meter Calibration ... 0, f4, +8 dBm, switch-select- able (0.775, 1.23, 1.95 Vrms) at 1 kHz to 600-ohm load. [VU RANGE Switch in 0 position provides 0 VU reading of 0 dBm (0.775 Vrms) to 600-ohm load1 .... Phasing (polarity) .Pin 3 of INPUT connectors in phase with pin 9 of ACCESSO- RY OUTPUT, tips of LINK OUTPUT and PROGRAM LlNE LEVEL OUTPUTS, and pin 3 of PROGRAM LlNE LEVEL and MIC LEVEL OUTPUTS (PHASE Switch in 0" position). Pins 1-8 of ACCESSORY OUTPUT out of phase with the above. ......... Phase Switch Output polarity-reversing switch (0°, 180') (reverses phase of all program outputs) ......... 30 Vdc Bus .Pin 10 on ACCESSORY OUTPUT connector is regulated +30 k3.5 Vdc supply; pin 11 is ground (earth). May be used to power accessories up to 50 mA. .... Operating Voltage .90-132 Vac, 50/60 Hz (SR109) 90-132, 180-250 Vac, 50/60 Hz (SR109-2E) Power Consumption ... 20 watts max. (Mixer only). 500 watts max. (SWITCHED AC re- ceptacle) (SR109 only) Temperature Range: ...... Operating -7O to 54OC (20' to 130°F) ....... Storage .-29O to 71°C (-20' to 160°F) ......... Dimensions.. 133 mm H x 483 mm W X 232 mm D (See Page 4.) (51/4 in. x 19 in. x 9% in.) Installation ........... Equipped for standard 19 in. (483 mm) rack mounting; 5% in. (133 mm) height; may be oper- ated in accessory A105A Car- rying Case or in custom control center. ............... Weight 7.7 kg (17 Ib) ................ Finish Matte black, with beige write-on trim strip ......... Certifications Listed by Underwriters' Labora- tories, Inc.; listed by Canadian Standards Association as cer- tified (SR109 only)
