Extracted text from shure slx2 wireless mic service manual (Ocr-read)
Page 1

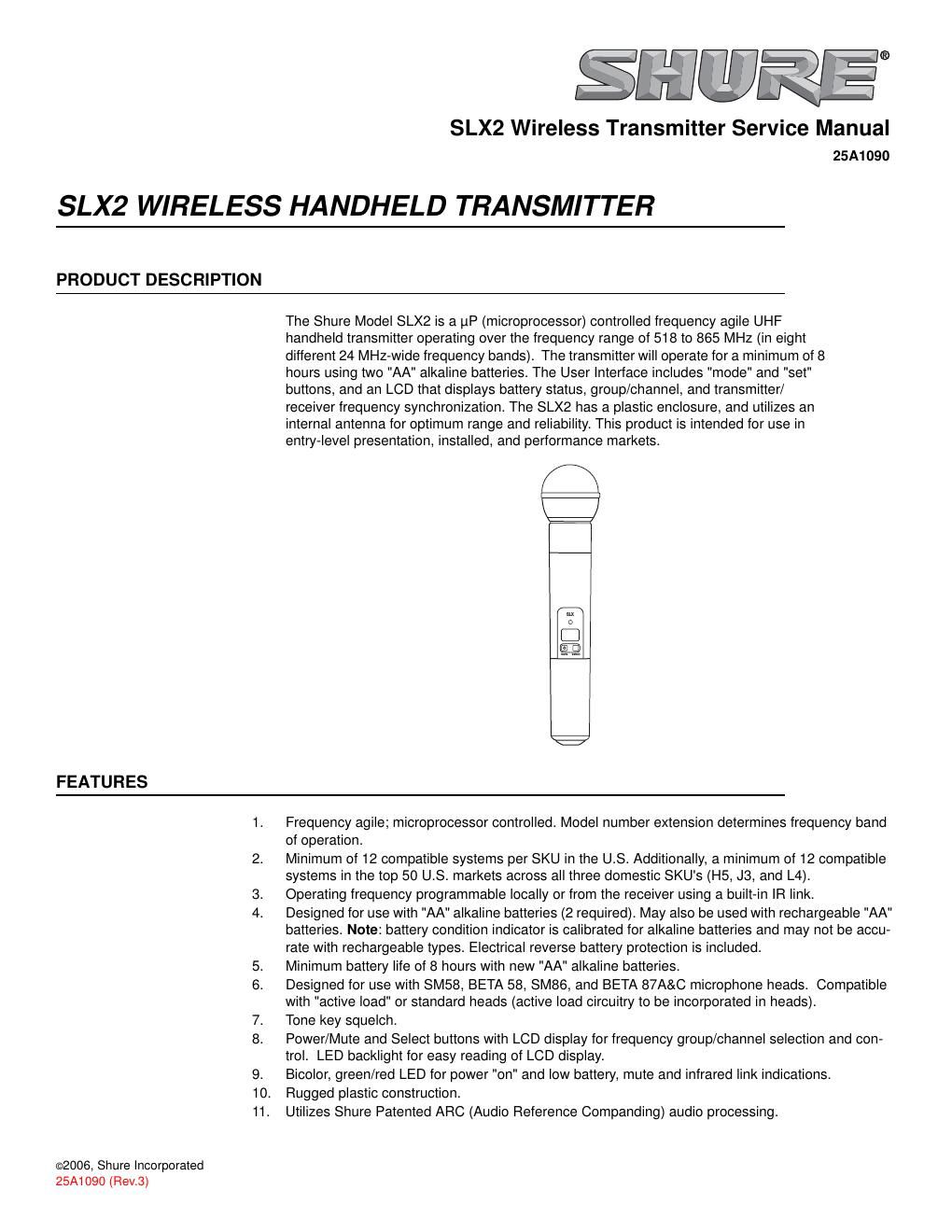

2 25A1090 (Rev.3) DETAILED DESCRIPTION Features 1 Interchangeable microphone head (SM58 pictured) 2 Power / Infrared (IR) / Mute indicator Green: ready Amber: mute on Flashing red: IR transmission in process Glowing red: battery power low Pulsing red: battery dead (transmitter cannot be turned off until batteries are changed) 3 LCD screen 4 On-off / mute switch Press and hold to turn on or off. Press and release to mute or unmute. 5 Select switch 6IR port Receives infrared beam to synchronize frequencies. When using multiple systems, only one transmitter IR port should be exposed at a time. Adjusting Gain Access the gain adjustment switch a by unscrewing the head of the microphone. Two gain settings are available on the SLX2. Choose a setting appropriate for vocal volume and for the performing environment. Use the tip of a pen or a small screwdriver to move the switch. - 0dB: For quiet to normal vocal performance. - –10dB : For loud vocal performance. SLX mute select 1 2 3 4 5 SLX mute select 6 SLX mute select BIAS AUDIO 0dB-10dB a b
Page 2
3 25A1090 (Rev.3) SLX2 Transmitter Programming Manually Select a Group and/or Channel 1. Press and hold the select button until the GROUP and CHANNEL displays begin to alternate. 2. To change the group setting, release the select button while GROUP is displayed a. While GROUP is flashing, pressing select increases the group setting by one. 3. To change the channel setting, release the select button while CHANNEL is displayed b. While CHANNEL is flashing, pressing select increases the channel setting by one. Lock or Unlock Transmitter Settings Press the mute/ and select buttons simultaneously to lock or unlock the transmitter settings. When locked, the current settings cannot be changed manually. Locking the transmitter does not disable in- frared synchronization. Battery Status Indicates charge remaining in transmitter batteries. Master List Indicator Indicates that a master list frequency is currently in use. No group or channel information is displayed. Note: the transmitter cannot be used to change master list settings. INCOMPATIBLE Frequency Warning The INCOMPATIBLE warning indicates that the receiver and transmitter are transmitting on different frequency bands. Contact your Shure retailer for assistance. select 5 i8 i8 MASTER LISTIncompatible GROUP CHANNEL i8 i8 MASTER LISTIncompatible GROUP CHANNEL a b select select select + i8 i8 MASTER LISTIncompatible GROUP CHANNEL i8 i8 MASTER LISTIncompatible GROUP CHANNEL i8 i8 MASTER LISTIncompatible GROUP CHANNEL i8 i8 MASTER LISTIncompatible GROUP CHANNEL
