Shure pe70rm owners manual
This is the 4 pages manual for shure pe70rm owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from shure pe70rm owners manual (Ocr-read)

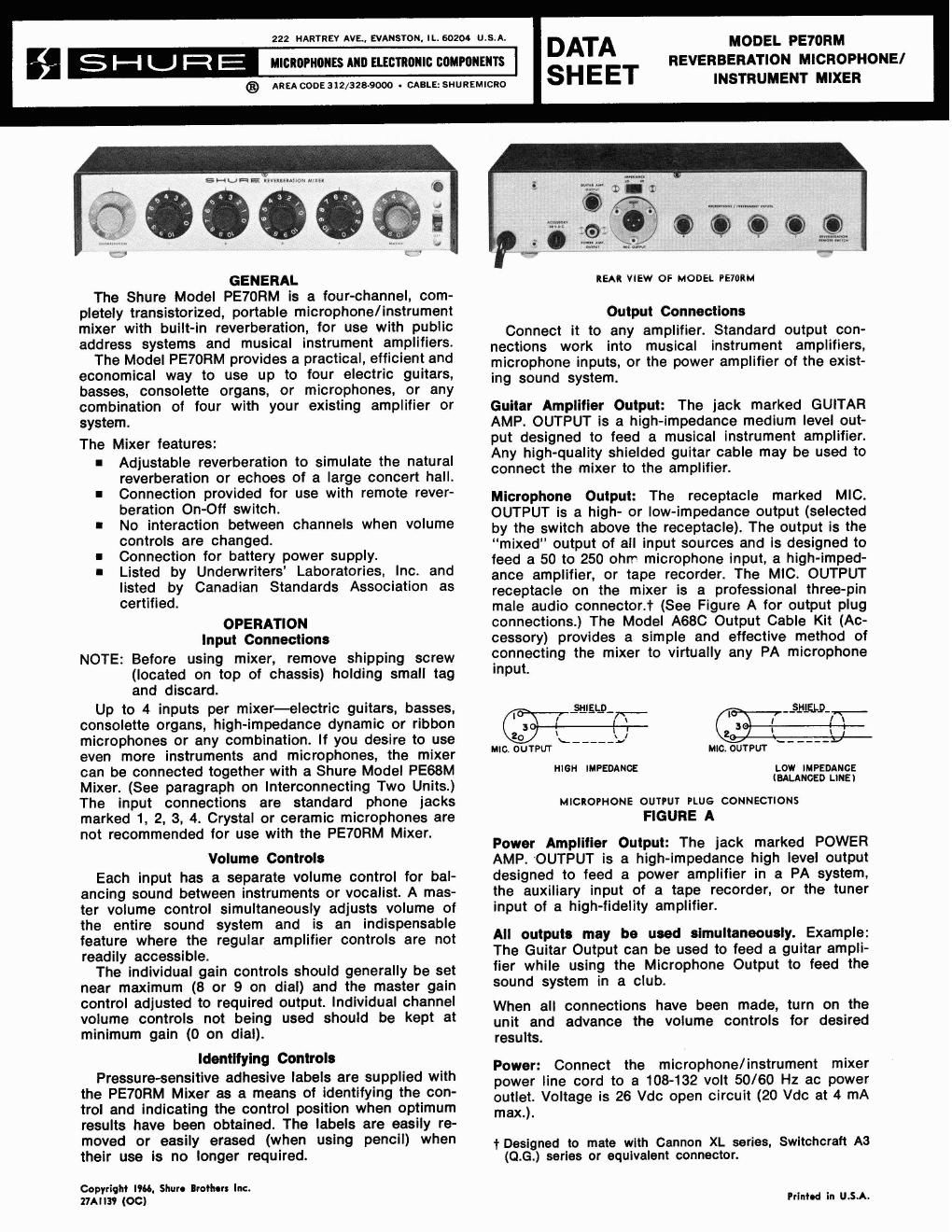

Page 1
Accessory 28-volt DC: To convert to dc operation, this jack is used as a power input when using the Model A68B Battery Power Supply (Accessory). When not using the mixer turn off the switch to conserve battery life (pilot light does not operate when using A68B). Grounding If there should be objectionable hum, connect the metal chassis of the mixer to a good ground such as a metal frame of a wall outlet or a water or steam pipe. This is normally accomplished automatically through the ground wire of the power cord. Reverberation The red control knob (on front panel) marked RE- VERBERATION is used to adjust the amount of rever- beration to the desired effect. The standard phone jack (on back panel marked REVERBERATION REMOTE SWITCH) is used to con- nect an On-Off switch which can be operated through a single-conductor shielded cable at a remote location to turn reverberation on and off. See Figure B for switch connections. CONDUCTOR o TIP r SLEEVE 1 SHIELD PHONE PLUG SWITCH REMOTE REVERBERATION SWITCH FIGURE B CAUTION: The PE70RM Reverberation Mixer should not be set on or mounted against a loudspeaker, as vibrations from the speaker cabinet may cause im- proper operation of reverb. Avoid accidental jarring during operation. Interconnecting Two Units 1. A PE70RM Reverberation Mixer and a Shure PE68M five-channel Mixer may be combined to give a total of eight microphone/instrument channels. In this case, four channels could have reverberation and four channels would NOT have reverberation. Unit 1 is the PE70RM, and Unit 2 is the PE68M. A. Connect GUITAR AMP. OUTPUT on Unit 1 to fifth MICROPHONE/INSTRUMENT INPUT on Unit 2. B. Connect microphones or instruments to mixers and set each input control to #O position. C. Take output signal for desired application from appropriate output jack on Unit 2. D. Set Master Control on Unit 1 to position #4. E. Set fifth MICROPHONE/INSTRUMENT INPUT Control on Unit 2 to position #lo. F. Master Control on Unit 2 is now Master for all inputs. G. Advance Master Control (Unit 2) to about #5 position and adjust individual microphone con- trols for proper level. If overall gain is too low or too high, Master Control (Unit 2) may be adjusted. A PE70RM Reverberation Mixer and a Shure PE68M five-channel Mixer may, also, be combined to permit reverberation in all eight microphone/instrument channels. In this case, Unit 1 is the PE68M, and Unit 2 is the PE70RM. A. Connect GUITAR AMP. OUTPUT on Unit 1 to the fourth MICROPHONE/INSTRUMENT INPUT on Unit 2. B. Connect microphones or instruments to mixers and set each input control to #O position. C. Take output signal for desired application from appropriate output jack on Unit 2. D. Set Master Control on Unit 1 to position #4. E. Set fourth MICROPHONE/INSTRUMENT INPUT Control on Unit 2 to position #lo. F. Master Control on Unit 2 is now Master for all inputs. G. Advance Master Control (Unit 2) to about #5 position and adjust individual microphone con- trols for proper level. If overall gain is too low or too high, Master Control (Unit 2) may be adjusted. SPECIFICATIONS Gain At 1,000 Hz, with 33k source Low Imp. High Imp. Power Amp. Input Mic. Mic. Guitar Amp. Aux. 5.0 mV produces .63 mV 10.1 mV 35.5 mV 14% Frequency Response Flat +3 dB, 40 Hz to 20,000 Hz Hum-Noise 60 dB below rated output. lnput lmpedance Inputs suitable for high-impedance dynamic and ribbon microphones and electrified instruments. Recommended Load lmpedance LO IMPEDANCE MIC. OUTPUT .................. 25 to 600 ohms HI IMPEDANCE MIC. OUTPUT .................. 20,000 ohms or greater POWER AMP. OUTPUT ......................... 47,000 ohms or greater GUITAR AMP. OUTPUT ......................... 47,000 ohms or greater Distortion Less than 1% THD with LO IMPEDANCE MIC. OUT- PUT at 20 mV, HI IMPEDANCE MIC. OUTPUT at 200 mV, and POWER and GUITAR AMP. OUTPUTS at 2.OV. Phase All inputs and AMP. OUTPUTS are in phase; MIC. OUTPUTS are out of phase with AMP. OUTPUTS.
Page 2
Output Clipping Level OPTIONAL ACCESSORIES OUTPUT MIN. CLIPPING LEVEL LO IMPEDANCE MIC. 50 mV HI IMPEDANCE MIC. 0.80V POWER AMP. 4.0V GUITAR AMP. 1.4V Operating Voltage 108-132 volts, 50160 HZ Case Painted metal Dimensions See Figure C r 289 rnm (11-318 IN,) 1 L5.5 mm (7132 IN.) OVERALL DIMENSIONS , FIGURE C Net Weight 1.36 kg (3 pounds) Attach6 Case ....................... .Model AC60 Battery Power Supply ................ .Model A686 Locking Panel ....................... .Model A68L Output Cable Kit .................... .Model A68C Rack Panel Kit ...................... .Model A68R Stacking Kit ......................... .Model A68S Handle/Tilt Stand .................... .Model A67H Line Matching Transformers ...... .Model A95 Series GUARANTEE This Shure product is guaranteed in normal use to be free from electrical and mechanical defects for a period of one year from the date of purchase. Please retain proof of purchase date. This guarantee includes all parts and labor. SHIPPING INSTRUCTIONS Carefully repack the unit and return it prepaid to the factory. If outside the United States, return the unit to your dealer or Authorized Shure Service Center for repair. The unit will be returned to you prepaid.
