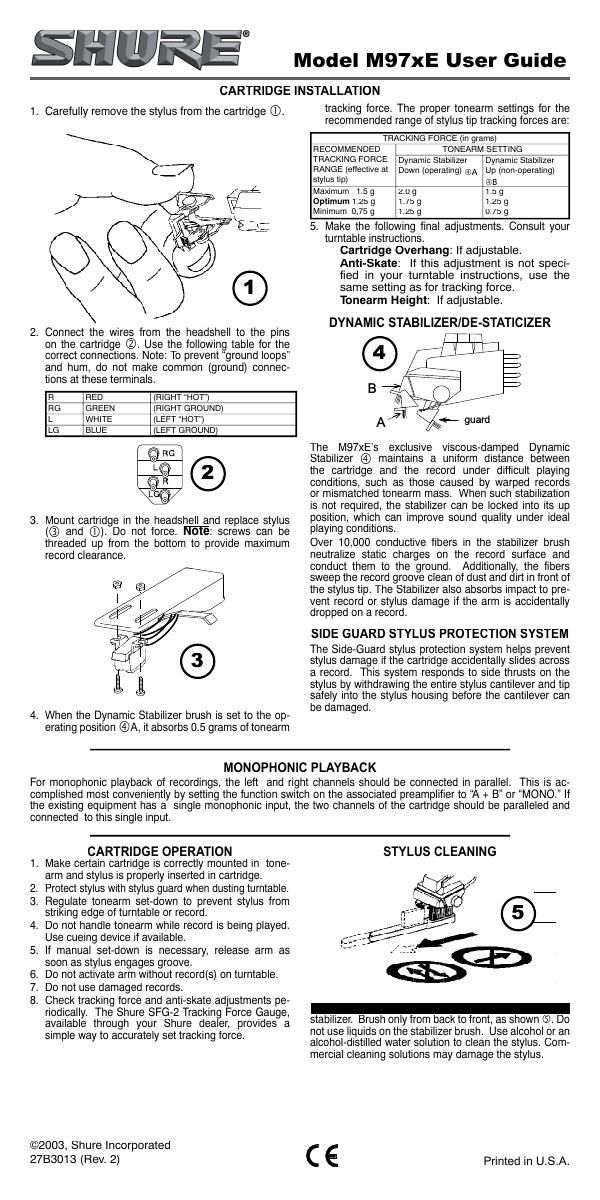

Model M97xE User Guide

CARTRIDGE INSTALLATION

1. Carefully remove the stylus from the cartridge @.

2. Connect the wires from the headshell to the pins
on the cartridge Q). Use the folloWing table for the
correct connections. Note: To prevent ground loops"
and hum, do not make common (ground) connec-
tions at these terminals.

R RED tRlGHT"HOT"l
Re GREEN tRlGHT GRouNDi
L WHlTE 'iLEi-rwory

LG BLUE (LEFTGROUND)

3. Mount cartridge In the headshell and replace stylus
(® and ®). Do not torce. Note: screws can be
threaded up from the bottom to proVide maximum
record clearance.

4. When the Dynamic Stabilizer brush is set to the op-
erating position @A, it absorbs 0.5 grams of tonearm

tracking force. The proper tonearm settings for the
recommended range of stylus tip tracking forces are:

TRACKING FORCE iin grams)

RECOMMENDED roNEARM sErriNG
TRACKING FORCE Dynamic Stabtllzer Dynamic Stabilizer
RANGE [effective at Dawn [uperatrrig) m up (nonroperatirigt
stylus tip) as

Maxrmum 159 20g 159
Optimumtzsg 1759 1259

Mlntmum 0,759 125g o7sg

5. Make the folloWing final adjustments. Consult your
turntable instructions.
Cartridge Overhang: lf adjustable.
Anti-Skate: If this adjustment is not speci-
fied in your turntable instructions, use the
same setting as for tracking force.
Tonearm Height: lf adjustable.

DYNAMIC STABILIZERIDE-STATICIZER

A]

The M97xEs exclusive viscous-damped Dynamic
Stabilizer ® maintains a unitorm distance between
the cartridge and the record under difficult playing
conditions, such as those caused by warped records
or mismatched tonearm mass. When such stabilization
is not required, the stabilizer can be locked into its up
position, which can improve sound quality under ideal
playing conditions.

Over 10,000 conductive fibers in the stabilizer brush
neutralize static charges on the record surface and
conduct them to the ground. Additionally, the fibers
sweep the record groove clean of dust and din in front of
the stylus tip. The Stabilizer also absorbs impact to pre-
vent record or stylus damage if the arm is accidentally
dropped on a record.

SIDE GUARD STYLUS PROTECTION SYSTEM
The Side-Guard stylus protection system helps prevent
stylus damage if the cartridge accidentally slides across
a record. This system responds to side thrusts on the
stylus by withdrawing the entire stylus cantilever and tip
safely into the stylus housing before the cantilever can
be damaged.

MONOPHONIC PLAYBACK
For monophonic playback of recordings, the lefl and right channels should be connected in parallel. This is ac-
complished most conveniently by setting the function sWitch on the associated preamplifier to A + B" or MONO." If
the existing equipment has a single monophonic input, the two channels of the cartridge should be paralleled and
connected to this single input.

CARTRIDGE OPERATION

1. Make certain cartridge is correctly mounted in tone-
arm and stylus is properly inserted in cartridge.
Protect stylus with stylus guard when dusting turntable

. Regulate tonearm set-down to prevent stylus trom
striking edge of turntable or record.

4. Do not handle tonearm while record is being played.

Use cueing deVice if available.

5. If manual set-down is necessary, release arm as
soon as stylus engages groove.

. Do not activate arm without record(s) on turntable.

. Do not use damaged records.

. Check tracking force and anti-skate adjustments pe-
riodically. The Shure SFG-Z Tracking Force Gauge,
available through your Shure dealer, proVides a
simple way to accurately set tracking force.

STYLUS CLEANING

um

mum

staEi ize Ems! on yIrom Eac! to Iront, as sEown 5. Bo

not use liquids on the stabilizer brush. Use alcohol or an
alcohol-distilled water solution to clean the stylus. Com-
mercial cleaning solutions may damage the stylus.

©2008, Shure Incorporated
2753013 (Rev. 2)

CE

Printed in USA.

Page 2

PRODUCT SPECIFICATIONS

Replacement Stabilizer Stereo Output (1 kHz at Frequency Trackability at 1.25 g
Stylus Color 5 cm/sec peack recorded Response Tracking Force (cm/sec
velocity) Peak Velocity)
N97xE Blue '4.0 mV 2010 22,000 HZ 400 HZ 7 30 Cm/sec
1 kHz 7 44 cm/sec
10 kHz 7 31 cm/sec
Features Very low mass, heat-treated cantilever
Dynamic Stabilizer damper/de-staticizer
Sideguard Stylus Protection System
Stylus Tip Polished natural diamond

Elliptical 5 x 18 m (0.0002 x 0. 0007 In. ) radii

Cartridge height 15.6 mm

Net welght
Channel balance

Channel Separation

25 dB at 1 kHz

Optimum Load
capacitance

DC resistance 1550 ohms

47 kilohms, 200 - 800 picofarads/channel, including tone arm and amplifier input

Inductance 650 millthenries

Certification Conforms to European Union

European Union EMC Immunity Requirements: EN 50 082-1 1992

directives, eligible to bear CE marking; meets

PATENT NOTICE: Manufactured under one or more of the followmg U.S. Patents: 4,275,888, 4,441,177, 4,473,397; 4,489,442.

LIMITED TWO-YEAR WARRANTY

Shure Incorporated (Shore") hereby warrants that this product
will be tree in normal use at any detects in materials and
workmanship tor a period of two years lronI the date at purchase
lor all cartridge and houslng assembly pans and tor a period

ol two years lrom the date of purchase tor all transmitter pans.
At its option Shure Wlll repair or replace the detective product
and prompdy return it to you, or relund the purchase price. You
should retain proof ol purchase to validate the purchase date and
return It with any warranty claim.

This warranty does not apply in cases at abuse or misuse of the
product, use contrary to Shure's instructton, ordinary wear and
tear, an act ol God or unauthorized repair. All implied WARRAN-

TIES OF MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE are hereby disclatmed and shore hereby disclaims
liability tor incidental, speCIal, or consequential damages resulting
from the use or unavailability of this product.

Some states do not allow limitations on how long an ImplIed
warranty lasts, or the exclusion or limitation ol incidental or
consequential damages, so the above limitation may not apply to
you. Thls warranty gives you specilic legal rights, and you may
have other rights which vary lrom state to state.

THIS WARRANTV SUPERSEDES ALL OTHER WARRANTIES
THAT ARE ASSOCIATED 0R INCLUDED WITH THIS PRODUCT
