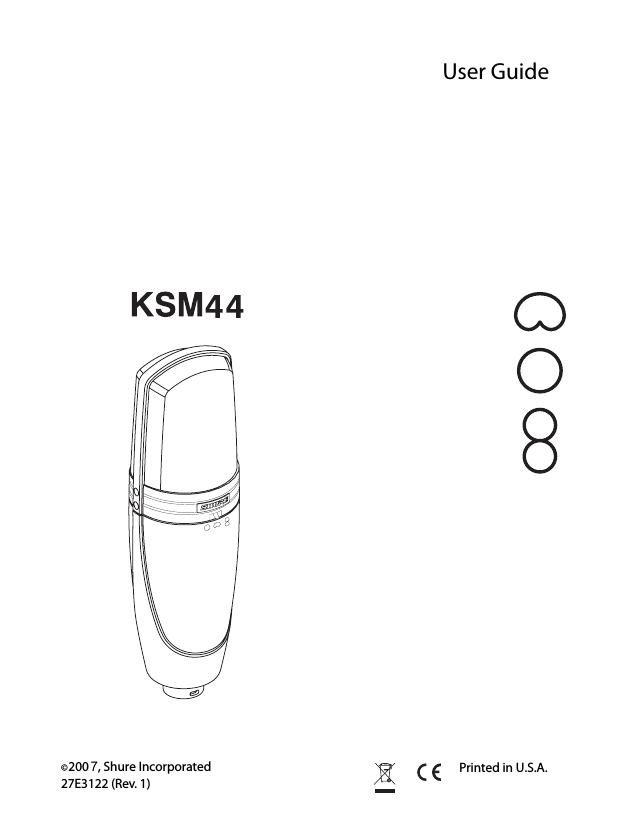

Page 1
1 SHURE INCORPORATED KSM44 MULTIPLE POLAR PATT ERN CONDENSER MICROPHONE Thank you for selecting the KSM44 Over 75 years of audio experience has contributed to making the KSM44 one of the finest microphones available. If you have any questions not answered in this booklet, please contact Shure Applications Engineering at 847-600-8440, Monday through Friday, from 8:00 am to 4:30 pm, CST. In Europe, call 49-7131-72140. Web address is www.shure.com. ®
Page 2
2 FIGURE 1. KSM44 FRONT AND BACK GENERAL DESCRIPTION The Shure ® KSM44 is a side-address condenser microphone with multiple polar patterns (cardioid, omnidirectional, bidire ctional). Designed for studio use, the KSM44 has externally biased, dual 1-in ch diaphragms, extremely low self-noise and an extended frequency response specially tailored for vocal tracking and instrument recording. FEATURES - Multiple polar patterns–cardioid, omnidirectional and bidirectional–for maximum flexibility in a wide variety of recording applications. - Dual 1 inch, externally biased, ultra-thin, 2.5 µm, 24 Karat gold-layered, low mass, Mylar ® diaphragms provide superior frequency response - Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response and no crossover distortion. Minimizes harmonic and inter- modulation distortions. - Premium electronic components and gold-plated internal and external connectors. - Subsonic filter eliminates rumble from mechanical vibration below 17 Hz. - Switchable 15 dB pad for handling extremely high sound pressure levels (SPLs). - 3-position switchable low-frequency filter helps reduce unwanted background noise or counteract proximity effect. - Integrated three-stage pop protection grille reduces plosives and other breath noise. - Internal shock mount reduces handling and stand noise. KSM44 FRONT Polar Pattern SwitchLow Frequency Response Switch 15 dB Attenuator KSM44 BACK
