Shure ksm27 user guide
This is the 11 pages manual for shure ksm27 user guide.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from shure ksm27 user guide (Ocr-read)

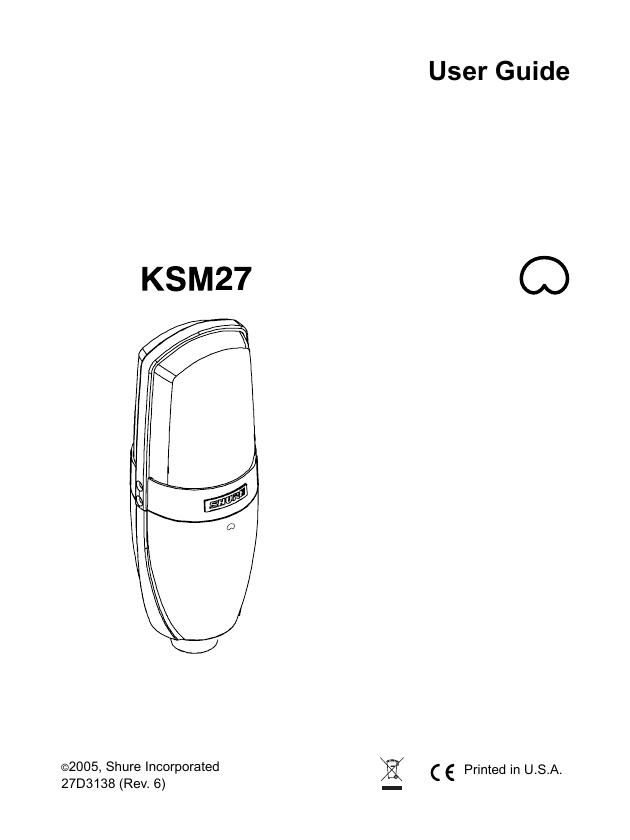

Page 1
1 SHURE INCORPORATED KSM27 CARDIOID CONDENSER MICROPHONE Thank you for selecting the KSM27 O v e r 7 5 y e a r s o f a u d i o e x p e r i e n c e h a s c o n t r i b u t e d t o m a k i n g t h e K S M 2 7 one of the finest microphones available. If you have any questions that are not answe red in this booklet, please contact Shure Applications Engineering at 847-600-8440, Monday through Friday, from 8:00 am to 4:30 pm, CST. In Europe, call 49-7131-72140. Our web address is www.shure.com. ®
Page 2
2 FIGURE 1. KSM27 FRONT AND BACK GENERAL DESCRIPTION The Shure ® KSM27 is a side-address condenser microphone with a cardioid polar pattern. Designed for studio use but rugged enough for live applications, the KSM27 has an externally biased 1-inch diaphrag m, extremely low self-noise, and an extend- ed frequency response specially tailored for vocal tracking and instrument recording. FEATURES - Cardioid polar pattern - the most commonly used pattern for both studio and live applications - 1 inch, externally biased, ultra-thin, 2.5 µm, 24 Karat gold-layered, low mass, Mylar ® diaphragm provides superior transient response - Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response and no crossover distortion, while minimizing harmonic and intermodulation distortions - Premium electronic components and gold-plated internal and external connectors - Subsonic filter eliminates rumble from mechanical vibration below 17 Hz - Switchable 15 dB pad for handling extremely high sound pressure levels (SPLs) - 3-position switchable low-frequency filter helps reduce unwanted background noise or counteract proximity effect - Integrated three-stage pop protection grille reduces plosives and other breath noise - Internal shock mount reduces handling and stand noise KSM27 BACK KSM27 FRONT Low-frequency response switch 15 dB attenuator
