Shure fp22 owners manual
This is the 5 pages manual for shure fp22 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from shure fp22 owners manual (Ocr-read)

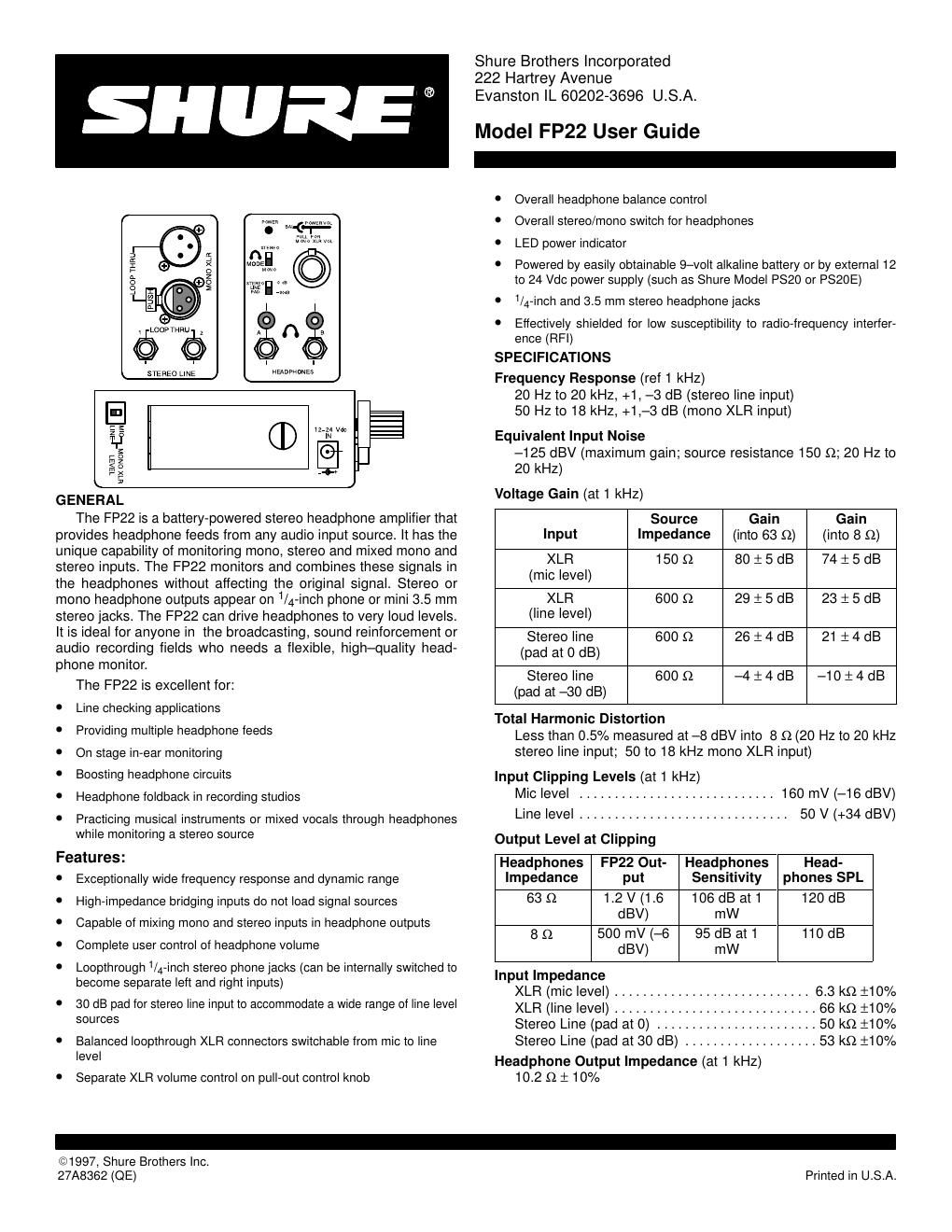

Page 1
2 Phase Input in phase with output. Pin 2 of XLR input in phase with tip and ring of all Headphones jacks. Power Internal One 9 V alkaline battery . . . . . . . . . . . . . . . . . . . . . . . Battery Life Approximately 15 hours under . . . . . . . . . normal operating conditions External 12 to 24 Vdc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Current drain (typical) 11 mAdc; 80 mAdc . . . . . . . . . . . . . . . (clipping) at 9 Vdc Temperature Range Operating 0 o to 49 oC (32 o to 120 oF) . . . . . . . . . . . . . . . . . . . Storage ±29 o to 70 oC (±20 o to 165 oF) . . . . . . . . . . . . . . . . . . Connectors Loopthrough Tw o 3-pin balanced XLR-type connectors (one male, one fe - male) Tw o 1/4-inch stereo phone jack (tip-left; ring-right; sleeve- ground) Headphones Two 1/4-inch stereo phone jack headphone outputs Two 3.5 mm stereo mini jacks Power 6.5 mm coaxial power connector (tip +, sleeve ±) Case Die-cast zinc; matte black enamel finish Overall Dimensions 80.9 mm H x 55.5 mm W x 153 mm D (3- 3/16 x 2- 3/16 x 6- 1/16 in.) Net Weight 450 grams (1 lb) NOTE : The FP22 is lightweight and can be clipped to a belt or trousertop, or to D-rings on other equipment. The FP22 belt clip is attached to the case with two easily removable screws. The FP22 will stand on a flat surface, and several units canbe stacked together with their belt clips removed. SETUP Battery Replacement 1. Use a coin or screwdriver to turn the 1/4-turn lockscrew fasten - er in either direction to open the battery compartment door . 2. Insert a fresh 9±volt alkaline battery (NEDA 1604A, Duracell MN1604A, Eveready 522, or equivalent) in the compartment. The battery compartment is designed so that the polarized bat - tery terminals cannot be inserted incorrectly . Plated spring ter - minals ensure solid electrical contacts. External Power The coaxial dc power jack accepts a dc voltage from 12 to 24 volts. External dc power feeds a regulator to power the FP22 cir - cuitry. The dc input jack is directly compatible with Shure Model PS20 or PS20E Power Supplies. The tip of the coaxial jack is positive (+), the sleeve is negative (±). A coaxial power plug in - serted into the external power jack disables the internal battery power. Signal Connections Mono XLR ÐMicrophone± or line±level signals 1. Set the Mono XLR Mic-Line switch to the appropriate signal level. 2. Connect a balanced microphone or line level signal to either Mono XLR jack. 3. If loopthrough is desired, use the unused XLR connector as an output. NOTE: No d amag e w ill resul t if the M ic-Lin e s witc h is s et incorrectly. However, objectionabl e d istortio n m ay resul t if line leve l signals are monitore d w ith the switc h in the M ic position. Stereo Line ÐLine± or Aux±level signals only 1. Connect a 1/4-inch stereo connector to either Stereo Line jack. 2. If loopthrough is desired, use the unused 1/4-in. stereo con- nector as an output. 3. Set the fron t pane l Stere o L ine P ad to t he 0 d Bm l ine±leve l signal position. The ±30 dB position is used when the FP22 line±level input signals ar e + 4 d Bm o r g reater. NOTE: As explained in the Internal Switches description, the FP22 can accept left and right input signals on separate con - nectors. Stereo Line jack (1) is left, Stereo Line jack (2) is right. Headphones 1. Connect headphones to the Headphones A and B jacks. NOTE: Each pair of Headphones jacks consists of one 1/4-inch and one 3.5 mm stereo connector. Only one connector of each pair can be used at one time. Plugging into the 1/4-inch connector disconnects its associated 3.5 mm connector . OPERATION NOTE: A simplified block diagram on the side of the FP22 pro- vides a quick reference to its functional circuitry . 1. Rotate the overall Volume control clockwise to power the FP22. The Power LED indicator lights to show that the unit is on. Turn the level control carefully to avoid excessive head- phone levels. The V olume control adjusts both the Mono XLR signal and Stereo Line signal. WARNING The FP22 can produce ear±damaging headphone levels. Turn the headphones Volume control up slowly when making adjustments. 2. Pull out the Volume control knob and rotate clockwise to in- crease the volume level of the Mono XLR signal only . This ad - justment will not af fect the overall volume. A center detent posi - tion provides a starting volume level for the Mono XLR signal. 3. Rotate the Balance control left or right to control the overall left/ right signal balance. 4. If mono monitoring is desirable, set the Stereo/Mono switch to Mono. INTERNAL SWITCHES Tw o switches are located inside the FP22. These control the signal path through the unit. The switches are located on the ver - tically mounted printed circuit board inside the unit adjacent to the Loopthrough phone jacks. To access the switches, remove the three Phillips-head screws on the side panel of the unit. Internal Switch S-104 consists of two independent single- pole, single±throw switches controlling the path of the Mono XLR input signal: 1. When S104-1 and -2 are in the On position, the Mono XLR sig - nal is routed to both left and right earphones. 2. When S104-1 is in the On position and S104-2 is in the Off position, the Mono XLR signal goes to the left channel. 3. When S104-1 is in the Off position and S104-2 is in the On position, the Mono XLR signal goes only to the right channel. 4. If both S104-1 and -2 are in the Of f position, NO signal from the Mono XLR input appears at the headphone outputs.Internal Switch S105 is a two±position slide switch that changes the Stereo Line jacks from Loopthrough TRS stereo in - puts to separate left and right mono inputs. 1. When interna l switc h S 105 is s et for stereo , the S tere o L ine jacks accept a s tere o s igna l on a s ingl e 1/4-inc h s tere o c onnecto r (tip- left; ring-right ; sleeve-ground) . T his a llow s for a l oopthroug h o f a
Page 2
3 stereo signa l sinc e b oth 1/4-inc h S tere o L ine jack s a re c onnected in parallel. 2. When internal switch S105 is set for Mono, the FP22 accepts individual left and right 1/4-inch mono connectors to provide a stereo signal. Stereo Line jack (1) is the left input; Stereo Line jack (2) is the right input. No loopthrough capability is available with S105 set for Mono. TYPICA L M ONITORING CONNECTIONS 1.One Mono Input. A mono signal connected to an XLR or phone jack will be monitored as a mono headphone signal. (When using the Mono XLR connectors, the Line/Mic switch should be set to match the input.) 2.One Stereo Input. A stereo signal connected to the Stereo Line jacks can be monitored as a stereo output on stereo head - phones or as a mono output. 3.One Stereo Input Plus One Mono Input. A mono signal input through the Mono XLR connector and a stereo signal input through the Stereo Line jacks can be monitored as a mixed out - put, with both signals appearing in the stereo headphones. 4.Three Mono Inputs - Stereo Headphone Signal Output. Three mono signals can be accepted through the mono-XLR jacks and the stereo line jacks, and mixed and monitored as a stereo signal in the stereo headphones. NOTE: The FP22 can be modified so that all input jacks are in parallel. This duplicates the Shure FP12 in functionality . This modification allows monitoring in mono only . Please contact Shure's Product Applications Group for details on this modifi - cation. INTERCOM CAPABILITY The FP22 can interface to commercially available intercom systems, such as R TS, T elex and ClearCom. The diagrams be - low show how to interface the FP22 to these systems and what can be monitored. More information about intercom systems can be obtained from the intercom manufacturers. Telex Intercom Systems (Figure 1) Telex uses a standard balanced audio line. No modification is required to interface the FP22 with T elex intercoms. 1.Use the Mono XLR Loopthrough connections. 2. Mon o X LR level switch shoul d b e se t to t he L ine p osition. 3. 24 volts phantom power on the intercom line is passed through the FP22. 1 2 3 AUDIO (+) AUDIO (±) REF+24 VDC +24 VDC FIGURE 1 RTS and ClearCom Systems (Figure 2) These two systems use an unbalanced audio line which re- quires use of the 1/4-inch line connectors of the FP22 for opera - tion. The Y±cable depicted in Figure 2 is required for RTS and ClearCom intercom systems.1. The above Y±cable is placed in-line into the intercom system. 2. Set internal switch S105 to Stereo (factory setting). Wiring for R TS and ClearCom Systems Pin RTS ClearCom 2 Audio channel 1, 24Vdc Audio, 18-36 Vdc power 3 Audio channel 2, 24 Vdc Audio, 12 Vdc call signal 1 Reference (ground) Reference (ground or com - mon) 1 2 3 1 2 3 FIGURE 2 TO STEREO LINE LOOPTHROUGH CONNECTION ON FP22 SLEEVERINGTIP SPECIAL APPLICATIONS Troubleshooting stage sound systems. The FP22 can be used to trace a signal line when one or more microphones are not working on stage. To locate the malfunction, loop the signal through the FP22 wherever an XLR or phone connector is lo- cated and monitor the signal. Field monitoring applications can be set up by inserting FP22 units ªin lineº without af fecting the signals. On stage monitoring. With the FP22, an ef fective on±stage in-ear monitor system can be created. From a mixing console a stereo signal can be looped through to multiple FP22' s, while the Mono XLR jack can be used for an individual's microphone or musical instrument. Each performer has control of overall head - phone volume as well as a mix control of their individual voice or instrument with the stereo signal. Boosting headphone output. The FP22 can be used to boost the headphone output of existing devices. The stereo headphone output of an audio device can be connected to the Stereo Line connectors of the FP22. The FP22 will provide a high±quality headphone output with the ability to loop through to another FP22. Using the FP22 as a two-stage intercom system. A two- stage intercom system can be created by connecting two FP22 units with a single standard microphone cable. Each person con - nects a Shure SM12A or other headset microphone' s XLR output and earphone input connector to their individual FP22. Both mi - crophone signals appear at each FP22 headphone output. Practice headphone amplifier for microphones or other sources, such as electric instruments, synthesizers, etc. Con- nect the output from any instrument into the FP22 and monitor the headphones.
