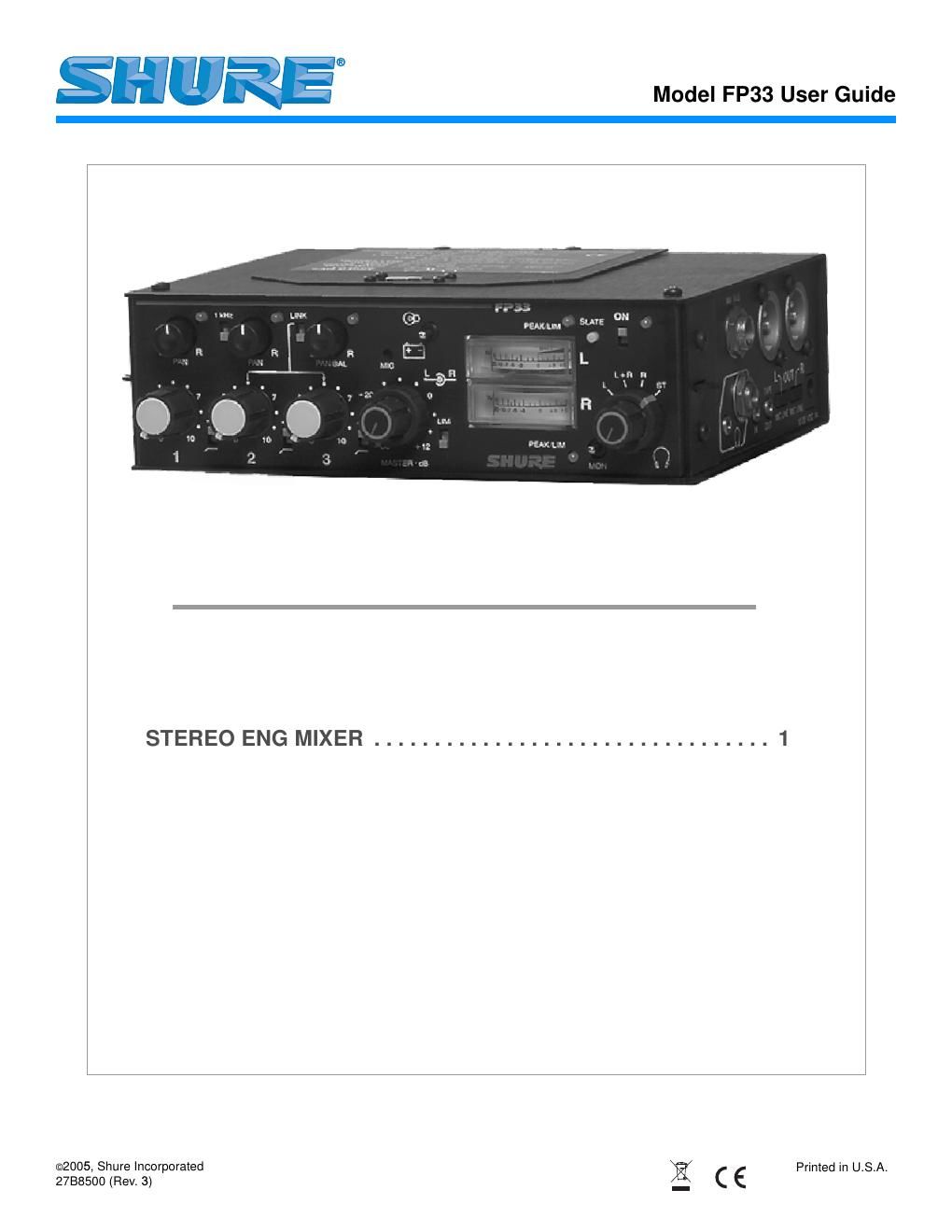

Page 1
TABLE OF CONTENTS ENGLISH GENERAL 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FRONT PANEL CONTROLS AND INDICATORS (FIGURE 1) 2 . . . . . . . . . INPUT PANEL CONNECTORS AND CONTROLS (FIGURE 2) 4 . . . . . . . . OUTPUT PANEL CONNECTORS AND CONTROLS (FIGURE 3) 4 . . . . . . INTERNAL SWITCHES AND CONTROLS (FIGURE 4) 5 . . . . . . . . . . . . . INTERNAL SWITCHES AND CONTROLS (CONT.) 6 . . . . . . . . . . . . . . . POWERING THE FP33 MIXER 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BATTERY LIFE 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MIXER SETUP 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OPERATION 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CONNECTING FP33 TRANSFORMER BALANCED OUTPUTS TO TELEPHONE LINES 7 . . . . . . . . . . . . . USER ADJUSTMENTS 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . INTERNAL MODIFIABLE FUNCTIONS 8 . . . . . . . . . . . . . . . . . . . . . . . . SPECIFICATIONS 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FURNISHED ACCESSORIES 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . STATEMENT OF CONFORMITY 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . INFORMATION TO USER 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 2
ENGLISH ENGLISH 1 GENERAL The Shure FP33 is a three-input, two-output portable ste- reo mixer designed for professional electronic news gather- ing (ENG), electronic field production (EFP), and on-loca- tion film production. The FP33 mixer sets a new standard for portable mixer performance and features. An exception- ally low-noise design makes the FP33 ideal for use with dig- ital transmission links or digital video and audio recording media, including DAT. Lightweight, compact, and rugged, the FP33 is designed to withstand the most demanding field production conditions. All types of dynamic and condenser microphones may be used with the FP33. The mixer provides 48 V phantom, 12 V phantom, and 12 V T (A-B) power for operating con- denser microphones. It will operate for at least 8 hours on two 9 V alkaline batteries. An external 12–30 Vdc power source, such as a Shure PS20 or PS20E ac adapter, may also be used. Features xExceptionally quiet design, suitable for use with DAT and other digital formats xExtended frequency response of 20 Hz–20 kHz xDynamic range greater than 100 dB xTransformer balanced inputs and outputs for superior rejection of RFI and electromagnetic hum xThree selectable mic/line inputs xTwo selectable mic/line outputs xWide range input gain controls handle hot signal levels without attenuators x48 V phantom, 12 V phantom, and 12 V T (A-B) micro- phone power xPop-up pan pots xLink switch gangs inputs 2 and 3 to control a stereo mi- crophone xSwitchable low-cut filters on each input xBi-color LED signal presence and peak indicator for each input xProfessional VU meters with selectable timed or toggled backlighting xDual clutched Master gain control for simultaneous or separate adjustment of output levels xPrecision, conductive plastic, sealed rotary input po- tentiometers xBi-color LED limiter and peak indicator for each output xTwo linkable output peak limiters with adjustable thresholds and release times xSlate microphone and slate tone with selectable func- tions xIsolated two-way talk-back using Monitor In and modi- fied Slate Mic/Tape Out jack xHigh tolerance 3.5 mm jacks for stereo Tape Out and Monitor In x1 kHz tone oscillator xMix bus jack and cable to link FP33 or FP32A mixers xHeadphone monitor mode switch to select L, L+R (Mono), R, or Stereo xInternal headphone level adjustments to balance post– master audio levels and Monitor In levels at the head- phone output xSelectable M/S decoding circuit for headphone monitor. xMixer/Monitor In switch (locking and momentary) xInternal Monitor defeat switch for split-feed headphone operation xHeadphone volume control x1/4 in. and 3.5 mm jacks for stereo headphone outputs. xCustomized operation via internal DIP switches, trim pots, slide switches, and optional jumpers xRegulated voltage rails ( r15 Vdc) provide exceptional headroom xBi-color power On/Off LED xBattery check switch and low battery warning LED xNon-polarized external power jack xExternal power operating range of 12 to 30 Vdc xSoft-touch, color coded control knobs with raised posi- tion indicators xMetal XLR input and output connectors xRugged, plated metal chassis xOperates for 8 hours on two 9 V alkaline batteries xIncludes carrying case, shoulder strap, and mix bus cable xDesigned and manufactured in U.S.A.
