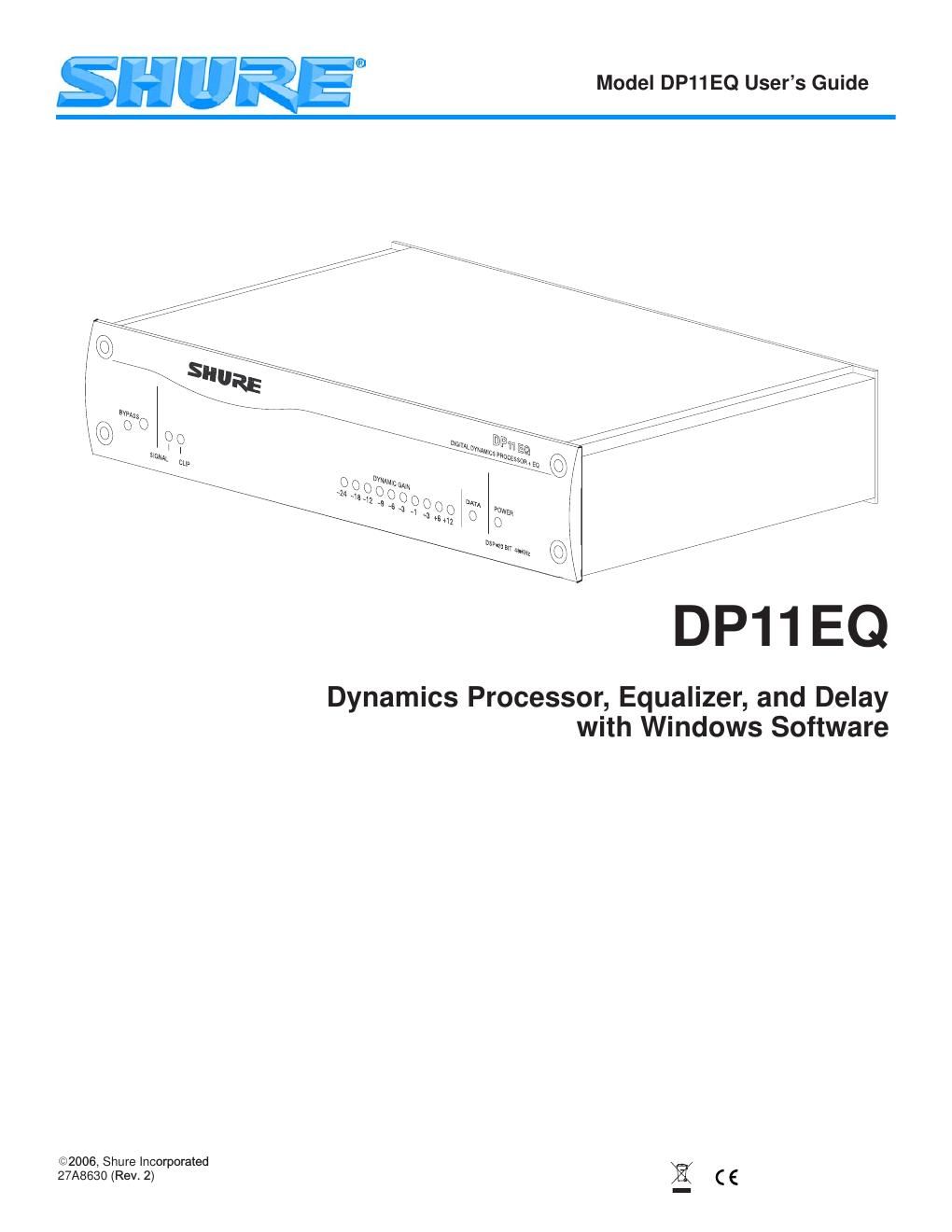

Shure dp 11eq user manual
This is the 36 pages manual for shure dp 11eq user manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from shure dp 11eq user manual (Ocr-read)
Page 1
1 English ± TABLE OF CONTENTS INTRODUCTION English ± 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hardware Features English ± 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Software Features English ± 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DP11EQ HARDWARE English ± 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Overview English ± 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Audio Connections English ± 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DP11EQ SOFTWARE English ± 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Introduction English ± 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Overview English ± 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MAIN CONTROLS English ± 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DYNAMICS PROCESSOR English ± 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . Overview English ± 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dynamics Parameters English ± 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dynamics Processes English ± 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gate English ± 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Expander English ± 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AGC Leveler English ± 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Compressor English ± 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Limiter English ± 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Overshoot Peak Limiter English ± 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . PARAMETRIC EQUALIZER English ± 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . DELAY English ± 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SHURE LINK NETWORKS English ± 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . MAINTENANCE English ± 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Scenes English ± 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Settings English ± 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Customizing Graph Colors English ± 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . Printing DP11EQ Settings English ± 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . . . Locking Out the Front Panel English ± 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . . . . Exiting the DP11EQ Application English ± 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . APPENDIX A. SPECIFICATIONS English ± 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . . . . . . . APPENDIX B. RACK MOUNTING THE DP11EQ English ± 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . APPENDIX C. CONNECTORS AND CABLES English ± 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . APPENDIX D. KEYBOARD CONTROLS English ± 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \ . . . . . . . . . . . . . . . *Trademark Notifications: Shure is a registered trademark of Shure Brothers, Inc. Windows is a registered trademark of Microsoft Corporation. Crystal is a trademark\ of Crystal Semiconductor Corporation. Motorola is a registered trademark of Motorola, Inc. IBM \ is a registered trademark of the IBM Corporation.
Page 2
2 English ± INTRODUCTION DATA The Shure Model DP11EQ is a single-channel, digital signal processor that combines a comprehensive dynamics processor, two parametric equalizers, and a delay in a single, half-rack enclosure. The DP11EQ can function as a gate, expander, Automatic Gain Control (AGC) leveler, compressor, limiter, and no overshoot peak limiter. All of these features are accessed via the supplied Windows* software. You can connect a computer to set up the unit in a sound system, then remove the computer so no one can tamper with the settings when the unit\ is left unattended. The DP11EQ is designed for installed sound reinforcement applications: theater, conference rooms, meeting halls, houses of worship, etc. Hardware Features Crystal* 20-bit A/D and D/A converters (Analog-to-Digital, Digital-to-Analog) for 104 dBdynamic range. 48 kHz sampling rate for flat response to 20 kHz. Half-rack space chassis allows rack mounting of one or two units in a single rack space with nosagging or bending. Shure Link Interface allows multiple units to be programmed with a single computer. Independently driven, cross-coupled, balanced1/4-inch and XLR outputs. Can be used with balanced or unbalanced inputs. Electronically balanced input with combination1/4-inch and XLR connector. Can be used with balanced or unbalanced outputs. No internal batteries. Settings and DSP program stored in internal EEPROM. +4 dBu/±10 dBV DIP-switch-selectable input andoutput levels. 80 MHz Motorola* DSP56009 processor enginewith full 24-bit internal processing. RS-232 interface for external computer controland firmware updates. Internal linear power supply eliminates the needfor a cumbersome external power supply. Solid state bypass eliminates unreliablemechanical relays and switches. A SIGNAL presence and a CLIP indicator DYNAMIC GAIN meter. Shure Link connectors for networking to otherShure Link devices, such as the modelsDFR11EQ and UA888. Software Features Four (4) processing blocks: pre-dynamics equalizer (EQ1), dynamics (DYN), post-dynamics(EQ2), and Delay. The dynamics processor functions as a Gate, Expander, AGC Leveler, Compressor, Limiter, andNo Overshoot Peak Limiter. The parametric equalizer offers up to 10 filters with adjustable frequency, up to 6 dB of boost or±18 dB of cut per filter, 1/40 to 2 octave bandwidth. Response Viewing. The dynamics and equalizer windows each have a viewer which shows theeffect of the process on the signal. Up to 1.3 seconds of Digital Delay with temperature compensation option. Displayed intime and distance. Digitally-controlled signal polarity inverting for equipment that inverts balanced signals. Front panel lockout control to prevent tampering. Storage of multiple scenes to floppy or hard disk.
