Page 1

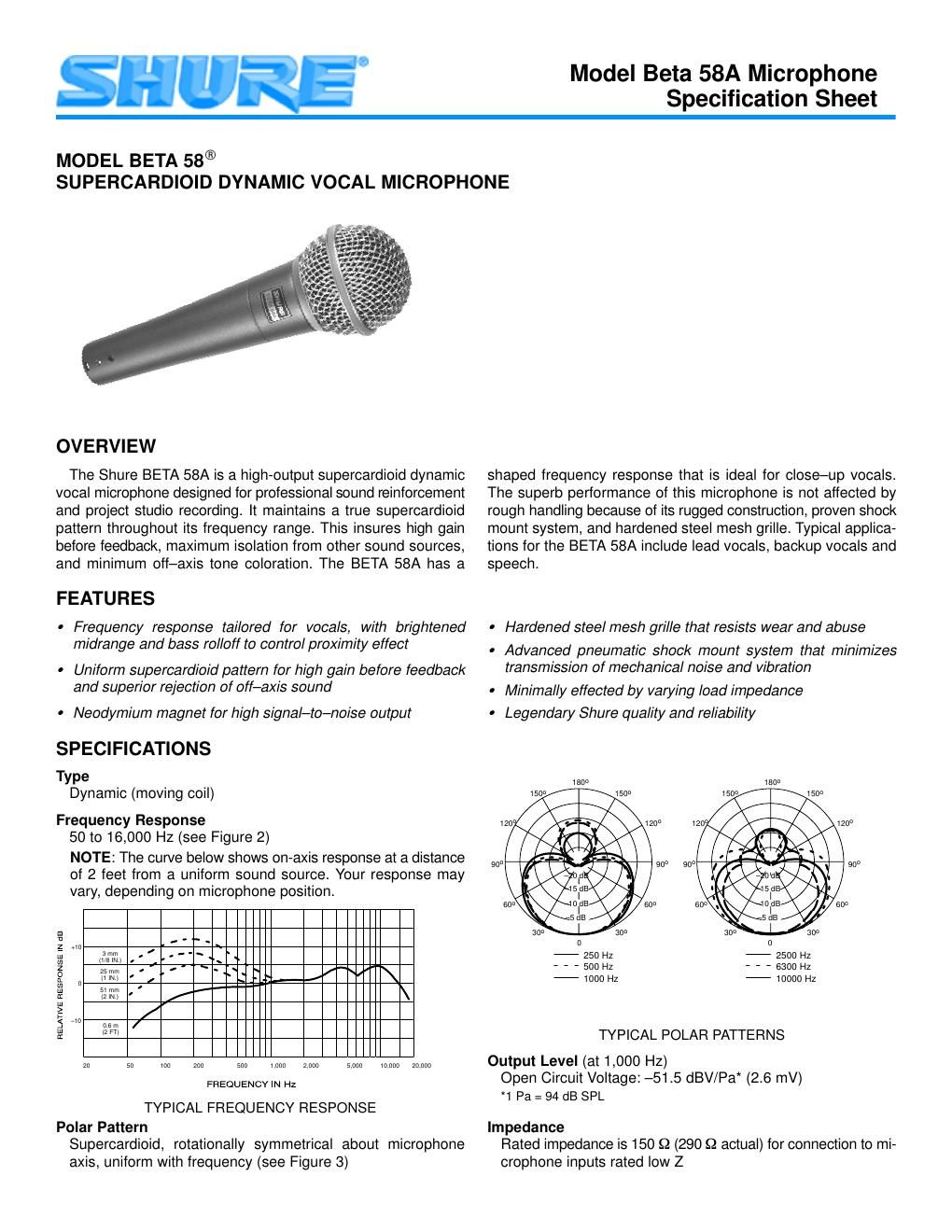

Specification Sheet MODEL BETA58 DYNAMIC VOCAL MICROPHONE 2 Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3. See Figure 4. INTERNAL WIRING Case Silver blue enamel-painted die cast metal with hardened,matte-finished, spherical steel mesh grille Adjustable, Stand Adapter Slip-in microphone mounting, unbreakable, adjustable through 180° with standard 5/8-27 thread, black finish Dimensions (See Figure 5) 160 mm (6.5 in.)50 mm (2 in.) OVERALL DIMENSIONS Net Weight 278 grams (9.92 oz) FURNISHED ACCESSORIES Adjustable Stand Adapter A25D. . . . . . . . . . . . . . . . . . . . . . 5/8 to 3/8 (Euro) Thread Adapter 95A2050. . . . . . . . . . . . Cartridge R176. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . REPLACEMENT PARTS Grille Assembly RK265G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Plug (Connector) Assembly 90F1984. . . . . . . . . . . . . . . . . . . . Storage Bag 26A21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OPTIONAL ACCESSORIES Windscreen A58WS Series (8 colors available). . . . . . . . . . Isolation Mount A55M, A55HM. . . . . . . . . . . . . . . . . . . . . . . . . . . 7.6 m (25 ft.) Cable C25E, C25F. . . . . . . . . . . . . . . . . . . . . . . . . .
