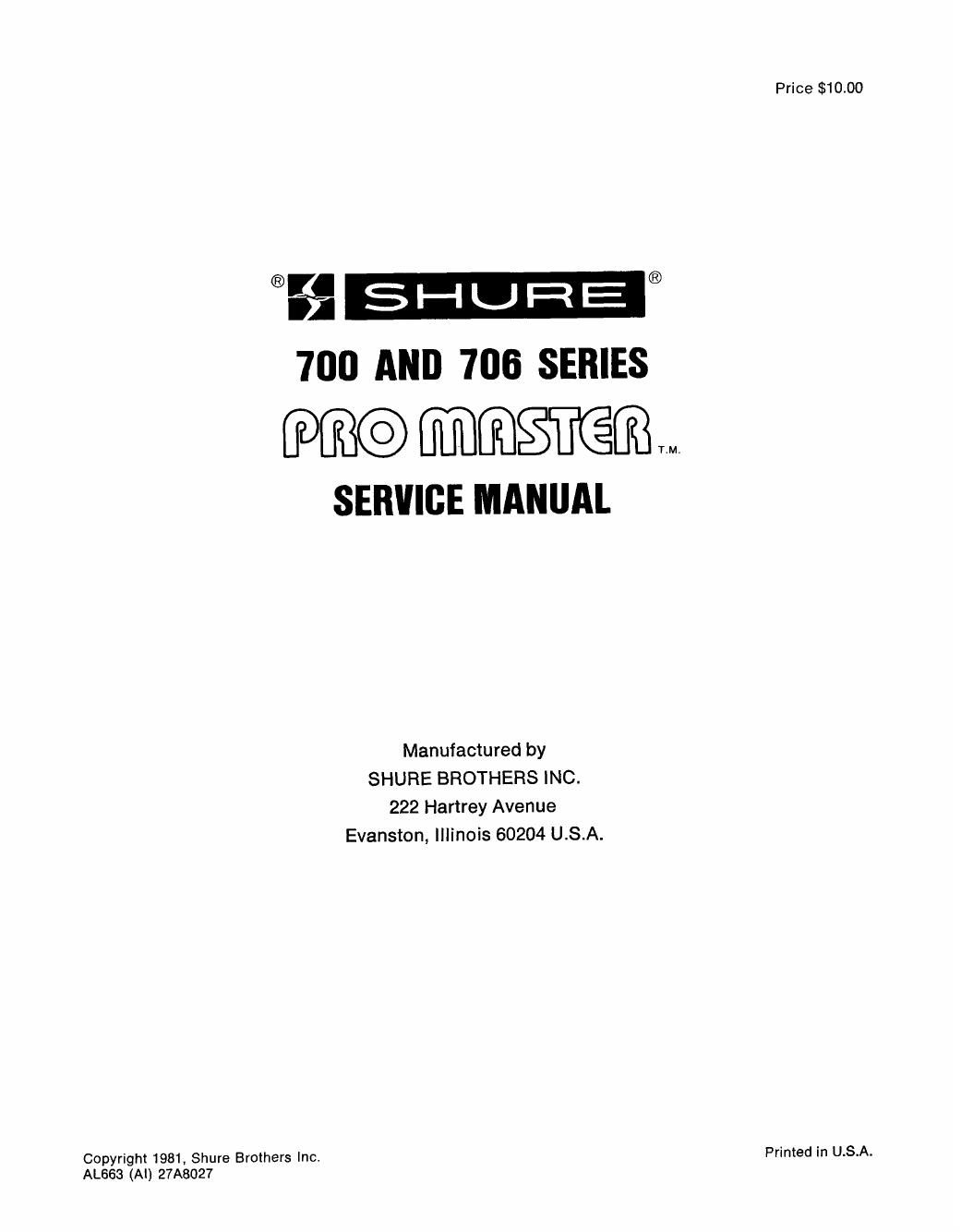

Shure 700 service pro master
This is the 51 pages manual for shure 700 service pro master.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from shure 700 service pro master (Ocr-read)
Page 1
SPECIFICATIONS* Type ................ .Solid-state power console using discrete components and inte- grated circuits Inputs ............... .Six input channels (high andlor balanced low impedance), plus two aux input channels (7 and 8) lnput Channel Controls. VOLUME, INPUT ATTENUATOR, A/B PAN (700), LOW and HlGH FREQUENCY EQUALIZATION, EFFECTSIREVERB, MONITOR Aux Channel Controls. . .VOLUME, A/B PAN (700) Master Controls. ...... .MASTER, EFFECTS SEND, RE- VERB LOW and HlGH EQUAL- IZATION, REVERB RETURN, MONITOR MASTER Outputs ............. .SPEAKER, MONITOR, EQ OUT, MIX OUT, EFFECTS, HEAD- PHONES, AUX, MIC Common Mix Buses ... .MIX OUTPUT, EQ OUTPUT (A, B in 700) Reverb and Effects ..... Built-in reverberation unit; provi- sions for connection to remote reverb on-off switch and exter- nal effects devices Graphic Equalizers. ... .lo-band, fully combining, mini- mum-phase, octave type, nor- mally connected to power am- plifier input; 13 dB boost or cut at 63, 125, 250, 500 Hz, 1, 2, 4, 8 and 16 kHz; BELOW 63 Hz 12 dB/octave cutoff filter (10 dB down at 31 Hz) LED Status Indicators. .. INPUT CLIP, DB PEAKIfeedback frequency, PA OVERLOAD, POWER, TEMP WARNING, SHUTDOWN 706; 700 with 700 with both channels one channel Power Output driven driven Per channel/4 ohms 200W min. 240W typical Per channel/8 ohms 125W min. 145W typical Measured at 1 kHz, 120 Vac, 1 % THD Distortion ........... .THD typically less than 0.1% at 40 Hz and 1 kHz, 0.25% at 15 kHz; IM distortion typically less than 0.25% [One channel driven, 180W or less to 4 ohms, 110W or less to 8 ohms, mea- sured from low-impedance in- put with individual and master controls at typical settings (orange index marks)] Low- and High- Frequency lnput ........ Equalization ? 13 dB at 100 Hz and 10 kHz lnput Clipping ......... Indicators .Light 3 dB below input or equal- izer clipping level ... DB Peak Indicators.. Indicate power amplifier peak voltage; +6 dB LED indicates 100 watts sine-wave output to 4-ohm load. Rise time: 250 @ec to full-scale indication; fall time: 65 msec from full-scale to no indication PA Overload ......... Indicators .Light when power amplifier THD exceeds 1 % ; fully on at 5% Temperature Warning .......... Indicator .Lights when output transistor temperature exceeds 70°C (158°F) Shutdown Indicator .... Lights when power amplifier shut- down occurs due to output transistor temperature over 100°C (212"F), air flow or fan failure, or dc at speaker output lnput Sensitivity ... (full power output). BAL LO IMP 0.6 mV HI IMP 8 mV AUX 21 5 mV (700) 106 mV (706) EQ INPUT 960 mV PA INPUT 960 mV
Page 2
SPECIFICATIONS* (continued) ... Input Clipping Level. BAL LO IMP 700 mV to 21 mV (INPUT ATTEN -30 to 0) HI IMP 10V to 335 mV (INPUT ATTEN -30 to 0) AUX 30V to 10V (VOLUME from 0 to 10) Voltage Gain ......... .94 dB BAL LO IMP INPUT to SPEAKER OUTPUTS 71 dB HI IMP INPUT to SPEAKER OUTPUTS 43 dB AUX INPUT to SPEAKER OUTPUTS (700; 706: 49 dB) 64 dB BAL LO IMP INPUT to MIX OUTPUT 77 dB BAL LO IMP INPUT to MONITOR OUTPUT 74 dB BAL LO IMP INPUT to EFFECTS OUTPUT 16 dB BAL LO IMP INPUT to MIC OUTPUT 58 dB BAL LO IMP INPUT to AUX OUTPUT 81 dB BAL LO IMP INPUT to HEADPHONE OUTPUT 0 dB EQ INPUT to EQ OUTPUT 30 dB PA INPUT to SPEAKER OUTPUTS Levels and Impedances Nominal Maximum Actual Working Circuit Level Level Impedance Impedance BAL LO IMP INPUT 5 mV 700 mV lk 19-300 ohms HI IMP INPUT 50 mV 10V 145k lOOk or less AUX INPUT 0.5V 30V 50k 10k or less MIX OUTPUT 1V 9V 2.4k 2k or more EFFECTS OUTPUT 1V 9V 2.4k 2k or more MONITOROUTPUT 1V 9V 2.4k 2k or more EQ INPUT 1V 1OV 50k 10k or less EQ OUTPUT 1V 9V 2.4k 2k or more AUX OUTPUT 1V 9V 5k 2k or more MIC OUTPUT 5 mV 75 mV 70 ohms 19-300 ohms PA INPUT 1V 1OV 50k 10k or less SPEAKER OUTPUT - 28.3V - 4 ohms or more HEADPHONES - 1 OV 360 ohms 4 ohms or more ... Frequency Response 22 dB, 40 to 20,000 Hz, BAL LO IMP INPUT to SPEAKER OUT- PUTS Hum and Noise .... (20 Hz to 20 kHz). -127 dBV equivalent input (BAL LO IMP) Noise ... (300 Hz to 20 kHz). -128 dBV equivalent input (BAL LO IMP) .. Signal-to-Noise Ratio .Greater than 80 dB (below full output) at typical control set- tings (orange marks, MASTER at 5, INPUT ATTEN at -12) Mic lnput Simplex ............ Power .24 Vdc open-circuit, 1.8k series resistance, simplex onloff switch .. Power Requirements .Models 700 and 706: 120 Vac f lo%, 50160 Hz; 1100W (700), 600W (706) max. (Can be re- wired for other voltages; see OPERATION AT OTHER VOLT- AGES); Models 700E6 and 706E6: 100, 120, 140, 200, 220 and 240 volts, 50160 Hz (switch- selectable). Environmental Conditions Operating ......... .-7" to 43°C (20" to 110°F) Storage ........... .-40" to 74°C (-40" to 165°F) Overall Dimensions. ... .l9O mm H x 584 mm W x 508 mm D (7% in. x 23 in. x 20 in.) Weight .............. .700: 21.3 kg (47 Ib) 706: 17.9 kg (39% Ib) Construction ......... .Molded construction with black finish, carrying handle, molded rubber feet, line cord storage Certifications ........ .Listed by Underwriters' Labora- tories, Inc.; listed by Canadian Standards Association as Cer- tified (700, 706) *Measurement Conditions (unless otherwise specified): All volume and gain controls for measured channel at maximum; unused channel controls at 0; equalization controls at 0. Measured input terminated as follows (unused inputs unterminated): BAL LO IMP, 150 ohms; HI IMP, 33k; AUX. EQ and PA. 4.7k. All outputs terminated as follows: all high-level outputs. 47k; MIC, 150 ohms; SPEAKER, 4 ohms: HEADPHONES, 200 ohms.
