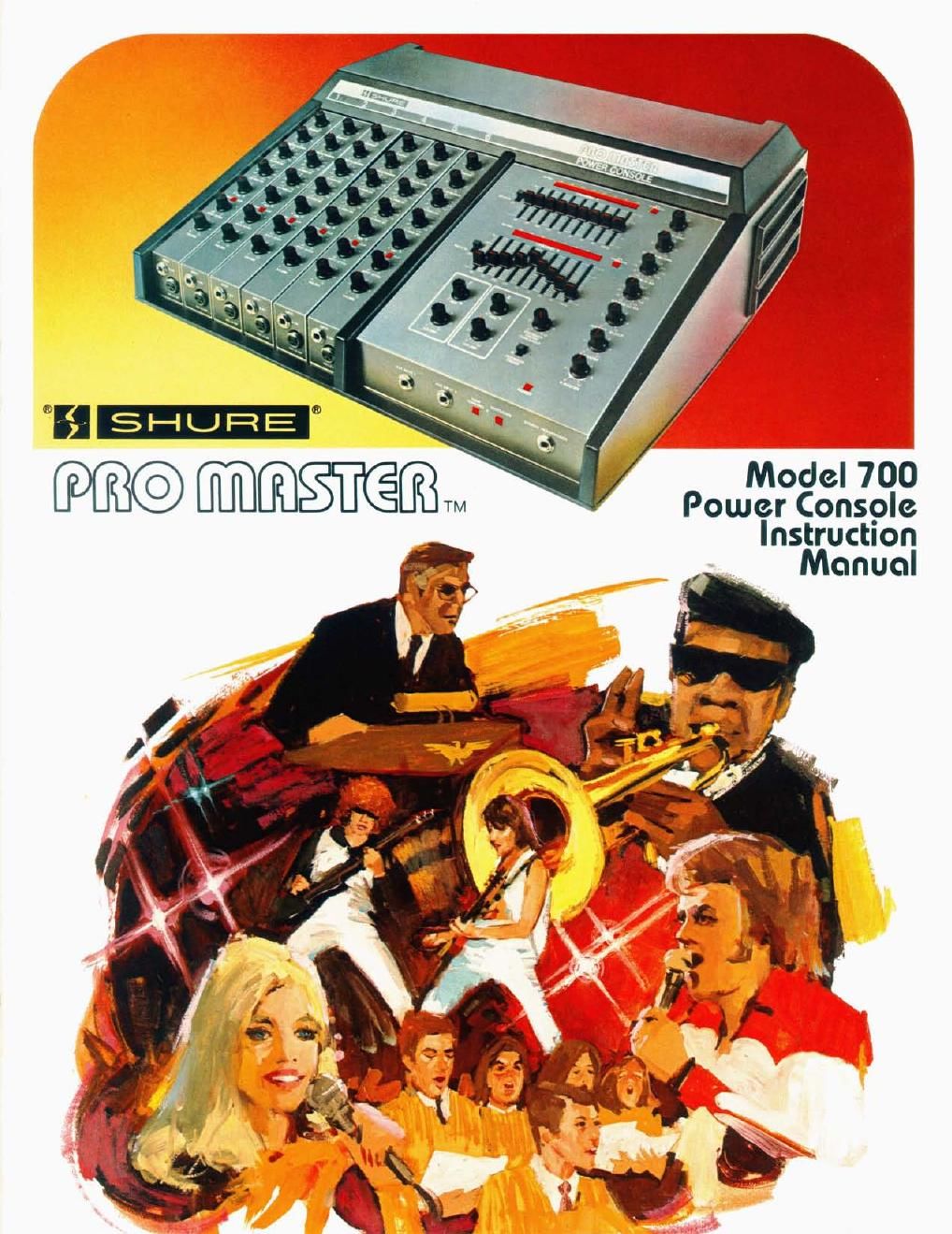

Page 1
The Features.. . . you find most useful.. .stereo.. pre-fader monitor.. .two power amps.. . exclusive FEEDBACK FINDER'" and PATCH BLOCK'" The Reliability.. . you need for demanding, continuous operation . The Quality.. you've come to expect from Shure CONTENTS Introduction ............................ .. 3 ..... ............... Controls Connectors Indicators 4 Input Channels ................................ 4 .................................... Aux Inputs 5 Status Indicators. .............................. 5 Headphones 5 ............................ DB Peak Indicators. 6 .......................... FEEDBACK FINDER'" 6 ............................ Graphic Equalizers 6 ............................... Master Controls 7 ....................... Speaker and Power Panel 8 .................... PATCH BLOCKTM Rear Panel 9 ........................................ Setups .ll ..................................... Operation .14 .............. .................. Maintenance .. .14 Troubleshooting ............................... .15 .................... Specifications .. .......... .16 .............................. Speaker Systems .17 ................................... Accessories .18 ..................................... Guarantee .18 Shipping Instructions .......... WARNING To prevent a source of fire or electric shock, do not expose this appliance to rain or extreme moisture.
Page 2
hboducing the Shure PRO MfiST€RTM Power Console Mod4 700 . . .a portable, high-power, stereo, 8-input mixer-amplifier with the flexibility and dependability demanded by professional entertainers and sound system operators. The result of years of design concept study and evaluation, the PRO MASTER handles any sound job well-even those grueling tours where daily setups and "knockdowns" punish equipment severely. The PRO MASTER is an all solid-state unit, employing the latest developments in highly reliable integrated circuit, discrete component, and printed wiring technology. It's easy to set up and operate- no separate power amps, equalizers or reverb are required. And connecting accessory equipment is fast and convenient. The PRO MASTER is full of features for super performance and super convenience-the unique FEEDBACK FINDER'" helps maximize gain before feedback, makes feedback location and suppression fast and easy. . . exclusive PATCH BLOCK'" rear panel shows you where you're patching, helps you construct complex circuits using simple patch cords. . . efficient "wind tunnel" power amp design has temperature warning and shutdown LED indicators. Its versatile control panel is human-engineered for ease of operation in daylight or the darkest, smoke-filled clubs. And it's packaged in a handsome, rugged, lightweight, molded ARMO-DUR'" case complete with carrying handle and line cord storage. The PRO MASTER offers you the best of all worlds- quality sound for small, intimate clubs, churches and schools, or large auditoriums. In combination with Shure's PRO MASTER Speaker Systems, you've got a sound reinforcement system that's ideal for every application. Need more capability? The PRO MASTER is super-expandable-use accessory mixers or power amps, stage monitor speakers, effects devices, whatever you need can easily be added. And it's all backed by Shure's traditional quality and reliability. It's the sound you need . . . when you need it.. . and where you need it. Just look at these features- * Completely stereo Twin full 200-watt power amplifiers Six high-impedance and six balanced low-impedance mic inputs plus two aux inputs plus A/B EQ and PA (power amp) inputs Six input channels for microphones and aux level sources with full controls: volume, attenuation, A/B pan, frequency equalization, effectsireverb, and monitor High- and low-impedance inputs may be used simultaneously Two additional aux channels with volume and AIB pan controls Full master controls: monitor, A volume, B volume, effects send, reverb return, and reverb high- and low-frequency equalization Outputs for all needs: monitor, effects, stereo headphones, A+B aux, A+B mic, and A and B speakers (2 each) Four common mix buses: A and B mix output, and A and B equalizer output Balanced mono (A+B sum) mic output for "house" systems Record in stereo with mono performance and separate mono stage monitor Unique FEEDBACK FINDER with LED readout instantly identifies feedback frequency bands Twin 10-band graphic equalizers with minimum phase, combining-type filters. Lowest filter is -12 dB1octave cut-only switch; others are 2 13 dB adjustable Exclusive PATCH BLOCK rear panel shows you where to patch-jacks are located right in the block diagram Built-in reverb unit with provisions for external onloff switching and external effects devices Regulated 24 Vdc simplex supply for powering condenser microphones Bright red LED indicators show input clipping, power amp peak output level, power amp overload, power-on, temperature warning, and shutdown Protected against damage from open- or short-circuits on inputs or outputs Protected against heat damage by ultra-reliable cooling fan and automatic thermal shutdown circuit Protected against radio frequency interference and line noise Operates on as low as 100 Vac (at reduced output) Rugged molded ARMO-DUR case with carrying handle and line cord storage Listed by Underwriters' Laboratories, Inc.; listed by Canadian Standards Association as certified
