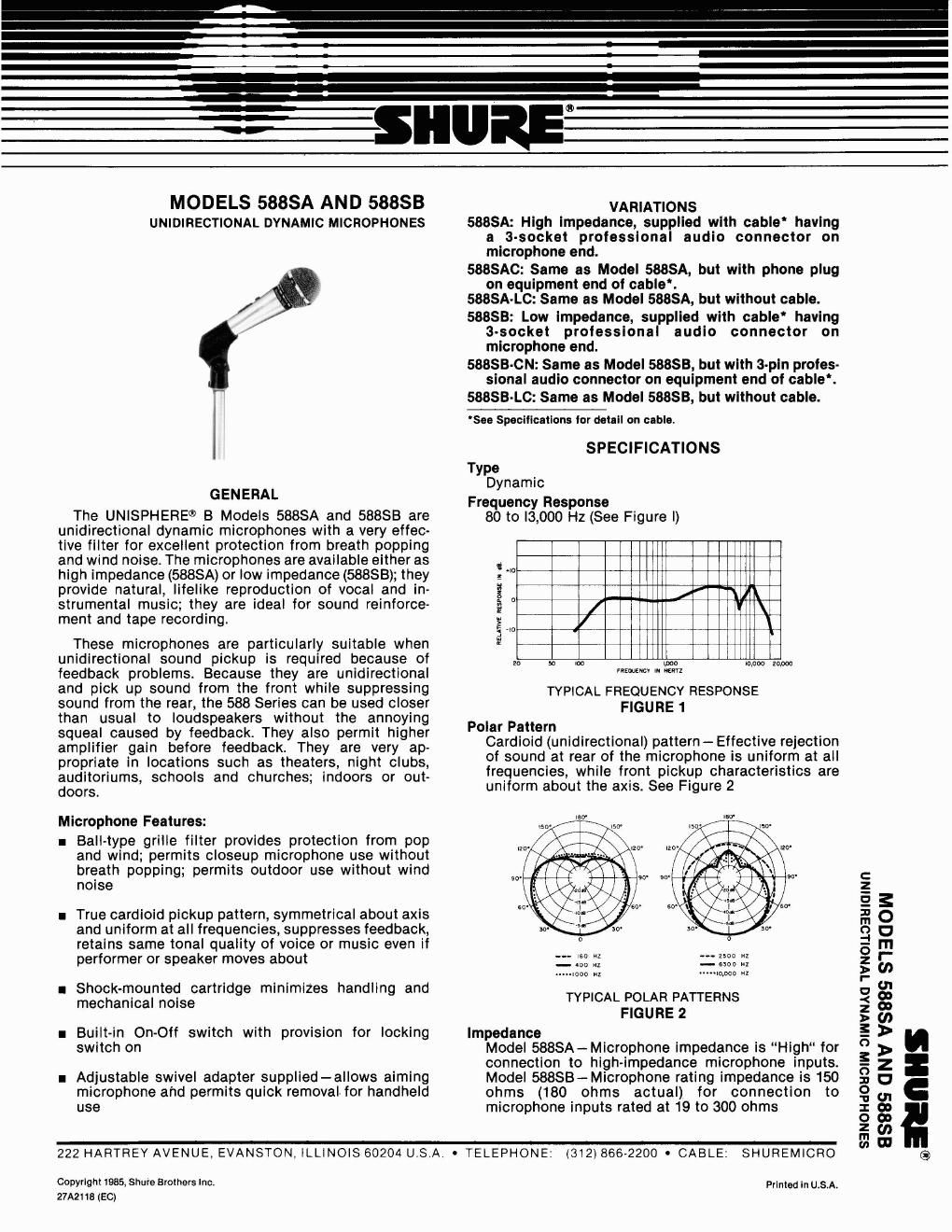

Output Level (at 1,000 Hz) 588SA 588SB Open Circuit Voltage* .... -59.5 dB -82.0 dB (1.1 mV) (08 mV) Power Level ........... -60.5 dB *O dB = 1 volt per microbar **O dB = 1 milliwatt with 10 microbars Phasing 588SA: Positive pressure on diaphragm produces positive voltage on pin 1 with respect to pin 3. 588SB: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3. Switch Built-in On-Off switch with lockplate. To lock switch in On position, remove screw on lockplate and turn lockplate 180°. Reassemble and tighten screw. Cartridge Shock Mount Internal rubber vibration-isolator Cable 588SA: 4.6m (15 ft) one-conductor shielded with professional 3-socket audio connector* on microphone end 588SAC: 4.6m (15 ft) one-conductor shielded with professional 3-socket audio connector* and stan- dard 'A-inch phone plug 588SB: 4.6m (15 ft) two-conductor shielded with professional 3-socket audio connector* on microphone end 588SB-CN: 6.lm (20 ft) two-conductor shielded with professional 3-socket and 3-pin audio connectors* 588SA-LC, 588SB-LC: supplied without cable *Designed to mate with Cannon XL series, Switchcraft A3 (Q.G.) series or equivalent connector. Swivel Adapter Positive action, adjustable through 90° from vertical to horizontal, permits easy removal for handheld use, suitable for mounting on stand with =/e"-27 thread Case Silver-f inish die casting with chrome-plated steel screen Dimensions See Figure 3 OVERALL DIMENSIONS FIGURE 3 Net Weight (less cable) 340 grams (12 oz) PHASING To test two microphones andlor their cables for pro- per phasing, connect them to an amplifier and talk or sing into them while holding them three or four inches apart. The sound from the speakers should be the same when talking into either microphone or directly between them if they are in phase with each other. If the sound drops drastically, or if a dead spot is found when talking between the two microphones, either the microphones or their cables (low impedance only) are out of phase. All cables and microphones should be tested in this manner to insure that they are in phase with each other. To change the phase of a low-impedance microphone cable, either use a Shure A15PRS Phase Reverser or in- terchange the wires connected to pins 2 and 3 of the connector. To change the phase of a microphone, the microphone cartridge leads must be interchanged (see Figure 4). This should be performed by your dealer, the Shure Factory Service Department, or other qualified service personnel. SWITCH 3-PIN PROFESSIONAL CARTRIDGE OFF POSITION AUDIO CONNECTORS CABLE PHONE MODEL 588SA SWITCH 3- PIN PROFESSIONAL CARTRIDGE OFF POSITION AUDIO CONNECTORS CONNECTOR (588S?p&8SB-CN) 158aSB-CN) REEN YELLOW YELLOW BLUE BLACK CODED TERMINAL MODEL 588SB INTERNAL CONNECTIONS FIGURE 4 FURNISHED ACCESSORY Swivel Adapter ............................. .A25B OPTIONAL ACCESSORIES Line Matching Transformer ............... A95 Series ...................... Desk Stand S33B, S37A, S39A ............................ Isolation Mount .A55M Dual Mount ............................... .A26M ......................... Windscreen A58WS Series Cable: 6.lm (20 ft) 1-conductor with phone plug ............................. C20A 7.6m (25 ft) 2-conductor with 3-pin professional audio.connectors . C25B, C25F REPLACEMENT PARTS ..................................... Cartridge R8 .......................... Screen and Grille RK82G Switch ................................... RK81S Plug Element .............................. RK40P Cable: 588SA ............................... C83 588SB ............................... C59 588SB-CN .......................... C20H GUARANTEE This Shure product is guaranteed in normal use to be free from electrical and mechanical defects for a period of one year from date of purchase. Please retain proof of purchase date. This guarantee includes all parts and labor. This guarantee is in lieu of any and all other guarantees or warranties, express or implied, and there shall be no recovery for any consequential or incidental damages. SHIPPING INSTRUCTIONS Carefully repack the unit, have it insured, and return it prepaid to: Shure Brothers Incorporated Attention: Service Department 222 Hartrey Avenue Evanston, Illinois 60204 If outside the United States, return the unit to your dealer or Authorized Shure Service Center for repair. The unit will be returned to you prepaid.
