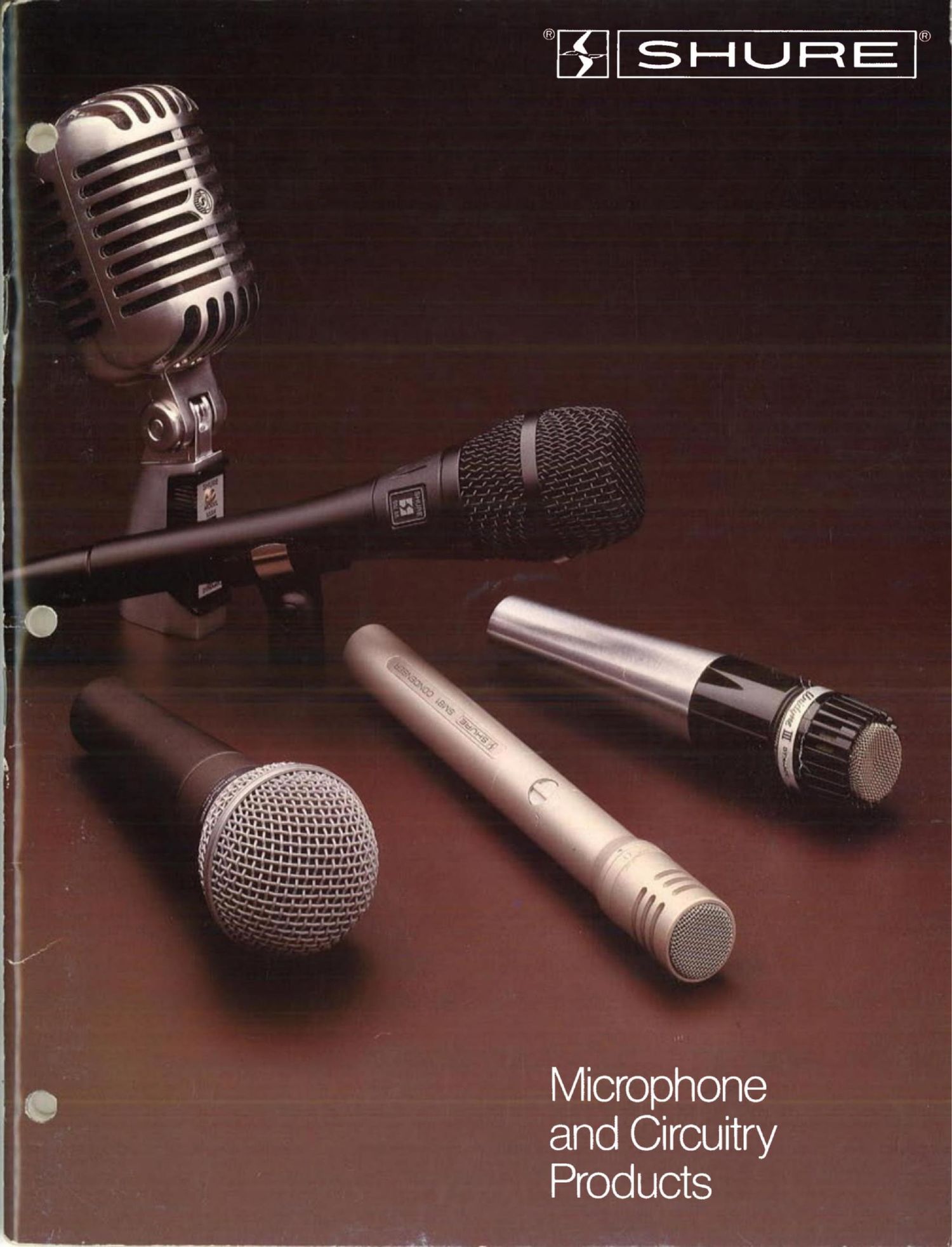

Shure 1982 catalogue microphone circuitry products

Page 2

Page
Shure...
A Commitment to Excellence ......................... 1
Shure Microphones:
The Sound You Can Take for Granted ................. 2-3
Shure Microphone Specifications...
...and What They Mean .............................. 4-5
Microphone Selection Guides
Professional Microphones .......................... 6
General Purpose Microphones ..................... 7
About Professional Microphones ..................... 8
Unidirectional Dynamic Microphones
SM77, SM78 Series ................................ 9
SM58 ............................................. 1O
SM56, SM57 ...................................... 1 1
SM59 ............................................. 12
SM53, SM54 ....................................... 13
SM62, SM58 ...................................... 14
SM7 .............................................. 15
Condenser Microphones
SM80 ............................................. 16
SM81 .......................................... 16-17
SM85 ............................................. 18
Unidirectional Ribbon Microphone
SM33 ............................................. 19
Bidirectional Ribbon Microphone
300 ............................................... 19
Omnidirectional Dynamic Microphones
SM63 ............................................. 20
SM60, SM61, SM76 ................................ 21
Omnidirectional Condenser Microphone
SM80 .......................................... 16-17
About General Purpose Microphones ............... .22
Unidirectional Dynamic Microphones
565 Series ........................................ 23
588 Series ........................................ 24
586 Series ......................................... 25
545 Series, 546 ................................... 26
51 5 Series ......................................... 27
55$l-l ........................................... 28
Unidirectional Ribbon Microphone
330 ............................................... 28
Omnidirectional Dynamic Microphones
533 Series ....................................... 29
578, 57938 ........................................ 30
571, 54OSH ........................................ 31
575$, 275$ ......................... a ............. 32
About Communication Microphones .................. 33
Paging Microphones
Base Station ............. 450, 522 ................ 34
Hand-Held ................ 514B, TH100 ............ 35
Mobile Microphones
104C, 404 Series, 405K, 414 Series,
418A, 419 Series, 488T, 5240 ... .a. . .. . . . 36
201, 202, 401 Series, 407 Series,
5078, 577 Series ................................... 37
Amateur Radio Fixed Station Microphones
444D, 526T Series II ............................... 38

Table of Contents

Page

About Special Purpose MicrOphones ................. 39
Line Level Condenser ....... SM82 ................. . .40
Surface Mounted ........... SM18 Series ............ 41
Lavalier .................... SM11, SM51 ............ 42

545L, 560, 570 .......... 43
Musical Instrument ......... SM17 ................... 44
Head-Worn ................ SM10A, SM12A, SM14A .44
Goosenecks ................ 51 58G, 51 SSBG,

51 558-618, 545L, 561 ,

562, 572G .............. 45
Taping ..................... 516EO, 516EO-PR ....... 46
Analyzer .................. E8615 .................. 46
Mobile Voice Pickup ........ HF52 ................... 47
Acoustic Coupler ........... 50AC ................... 47
Sound Level ................ 98A108A ............... 48
Vibration Pickup ............ 61 CP ................... 48
Miniature ................... MC1 1 J, MC30J .......... 49
Cartridges ................ R6, R103 ............... 49
About Microphone Accessories ...................... 50
Problem Solvers ..................................... 51
Windscreens ........................................ 52
Desk and Floor Stands ............................... 53
Mounts and Adapters ................................ 54
Cable, Cough Button and Boom
Extension Pipe ...................................... 55
Goosenecks, Lavalier Assemblies,
Accessory Bag, Slide Rule and Calculator ............ 56
Power Supplies, Monitor Adapter
and Battery Adapter ................................. 57
Replacement Parts and Accessories
Selection Guide .................................. 58-59
About Circuitry Products ........................... 60
Gated Compressor Mixer . . . .SE30, SE30-2E .......... 61
Mixers ..................... M267,M267E ............ 62

M268,M268E ............ 63

M67, M67-ZE ............ 64

M68, M68FC, M68FCE . . .64
Stereo Preamplifier ......... M64, M64-ZE ........... 65
Audio Equalizer ........... SR107, SR107-ZE ....... 66
Audio Master? ............. M63 .................... 67
Feedback Controller ........ M610, M610-2E ......... 68
Carrying Cases. Rack Panels and Stacking Kit ........ 69
Handle/Tilt Stand, Security Panels, Panel Lamp,
Battery Power Supplies and Microphone Preamplifier . .70
Date Sheet Reference Guide .......................... 71

Shure...

Quality is our First Consideration ..................... 73

sflufi®The Sound of the Professionals. . .Worldwide®
